IMEX Verona GCE010 Kitchen Faucet Instruction Manual

Introduction

Thank you for choosing the IMEX Verona GCE010 Kitchen Faucet. This manual provides essential information for the safe installation, operation, maintenance, and troubleshooting of your new faucet. Please read these instructions carefully before installation and retain them for future reference.

Product Overview

The IMEX Verona GCE010 kitchen faucet features an innovative design with a flexible spout and a durable chrome-plated brass surface. Its flexible spout allows for easy reach to every corner of the sink, enhancing functionality. The faucet is equipped with a 3.5 cm ceramic cartridge designed to prevent drips and promote water conservation.

• Modern Design: Aesthetically pleasing and functional for contemporary kitchens.
• Flexible Spout: Provides extended reach and versatility for various kitchen tasks.
• Ceramic Cartridge: Ensures smooth operation, prevents leaks, and contributes to water saving.
• Durable Finish: Chrome-plated brass construction for longevity and resistance to wear.

Image: The IMEX Verona GCE010 kitchen faucet installed in a modern kitchen, showcasing its design and flexible spout.

Safety Information

Please observe the following safety precautions during installation and use:

• Always turn off the main water supply before beginning any installation or maintenance work.
• If you are unsure about any part of the installation process, consult a qualified plumber.
• Wear appropriate personal protective equipment, such as safety glasses and gloves, during installation.
• Do not use excessive force when tightening connections to avoid damaging the faucet or plumbing.
• Ensure all connections are secure and leak-free before restoring water supply.

Package Contents

Verify that all components are present before beginning installation:

• IMEX Verona GCE010 Faucet Body with Flexible Spout
• Faucet Handle
• Flexible Connection Hoses (50 cm)
• Mounting Hardware (washers, nuts, gaskets)
• User Manual

Setup and Installation

Tools Recommended: Adjustable wrench, Phillips screwdriver, plumber's tape, basin wrench (optional), safety glasses, gloves.

1. Prepare the Sink: Ensure the sink hole is clean and free of debris. If replacing an old faucet, remove it and clean the area thoroughly.
2. Install the Faucet Body: Insert the faucet body into the sink hole. Ensure the base gasket is properly seated between the faucet and the sink surface.
3. Secure the Faucet: From underneath the sink, slide the rubber washer, then the metal washer, and finally the mounting nut onto the threaded shank of the faucet. Hand-tighten the nut, then use a basin wrench or adjustable wrench to secure it firmly, ensuring the faucet is straight.
4. Connect Water Supply Lines: Attach the flexible hot and cold water supply hoses to the corresponding inlets on the faucet body. Use plumber's tape on the threads for a watertight seal. Connect the other ends of the hoses to your hot and cold water supply valves. Tighten connections with an adjustable wrench, but do not overtighten.
5. Check for Leaks: Slowly turn on the main water supply. Check all connections for leaks. If any leaks are detected, tighten the connections slightly until the leak stops.

Image: A close-up view of the IMEX Verona GCE010 faucet's handle and base, illustrating the design for installation reference.

Operating Instructions

The IMEX Verona GCE010 faucet is designed for ease of use:

• Water Flow and Temperature: Lift the handle to turn on the water. Move the handle left for hot water and right for cold water. The further you move the handle, the hotter or colder the water will be.
• Flexible Spout: The spout can be freely moved and positioned to direct water flow precisely where needed in the sink.
• Spray Patterns: The faucet head may feature a button or switch to toggle between different spray patterns (e.g., stream and spray). Press or slide this control to select your desired water flow.

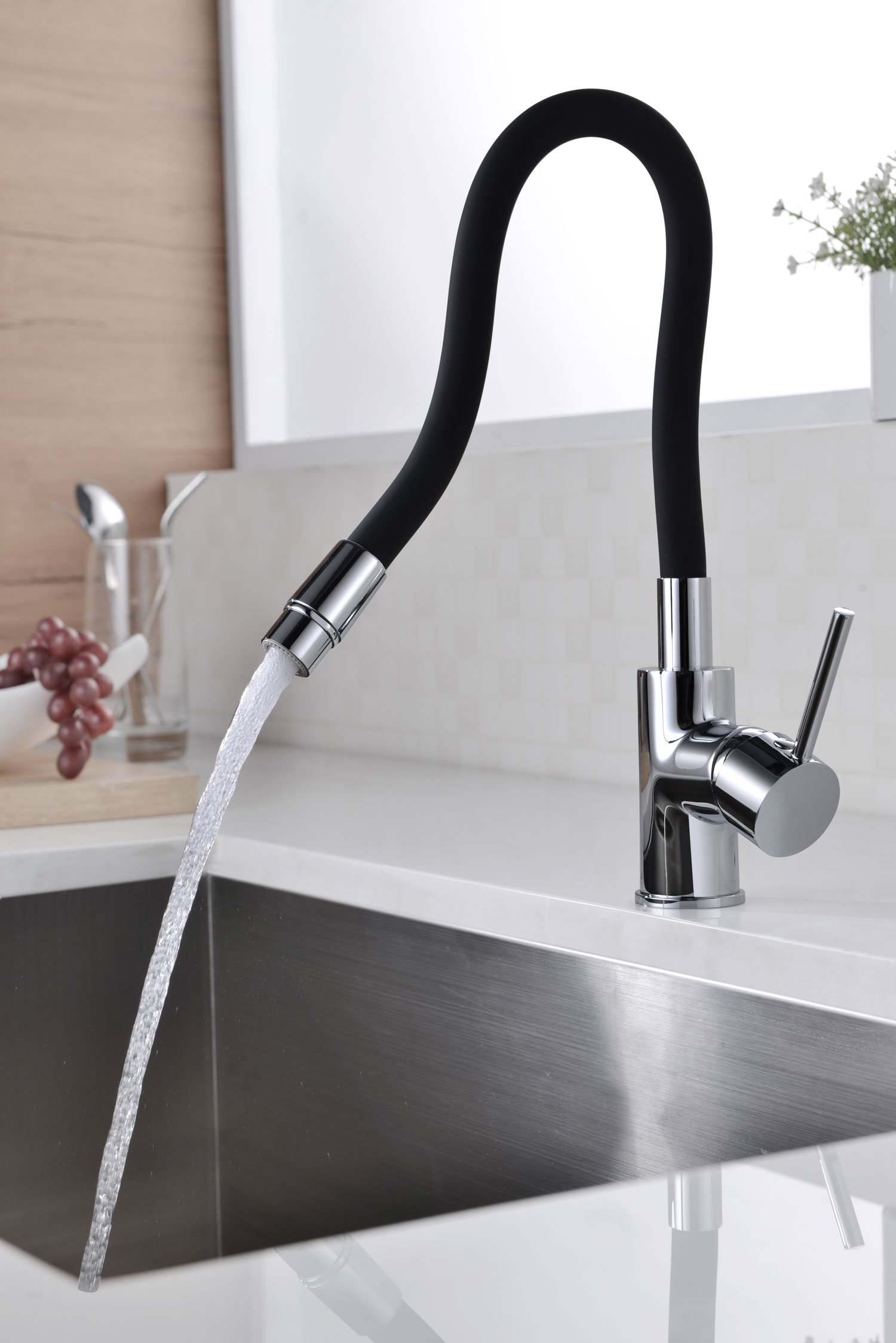

Image: The IMEX Verona GCE010 faucet demonstrating the flexible spout's range of motion, indicated by rotational arrows.

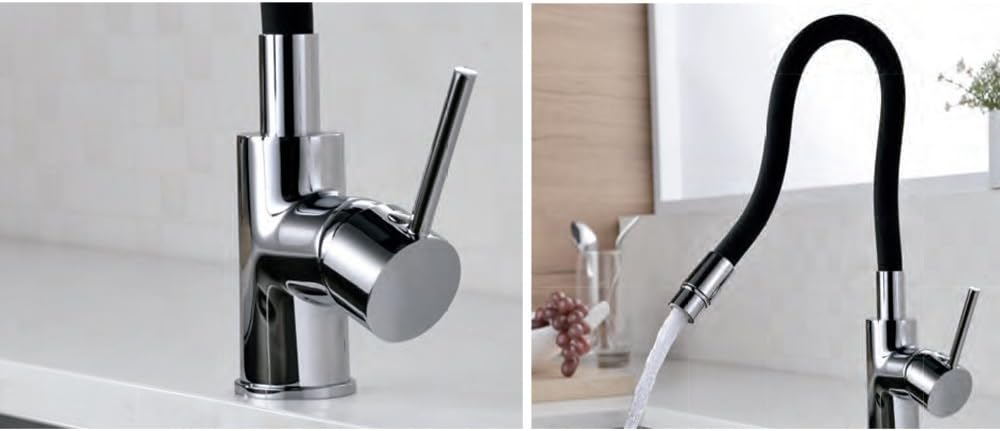

Image: The IMEX Verona GCE010 faucet in operation, showing water flowing from the flexible spout into a sink.

Maintenance and Cleaning

To maintain the appearance and functionality of your IMEX Verona GCE010 faucet, follow these cleaning guidelines:

• Regular Cleaning: Clean the faucet regularly with a soft cloth and mild soap or a non-abrasive liquid cleaner.
• Avoid Harsh Chemicals: Do not use abrasive cleaners, scouring pads, ammonia-based cleaners, or bleach, as these can damage the chrome finish.
• Rinse and Dry: After cleaning, rinse the faucet thoroughly with clean water and dry it with a soft cloth to prevent water spots.
• Aerator Maintenance: Periodically unscrew the aerator at the tip of the spout and clean any mineral deposits or debris that may restrict water flow.

Troubleshooting

If you encounter any issues with your faucet, refer to the following common problems and solutions:

• Low Water Flow:
  • Check if the water supply valves are fully open.
  • Clean the aerator for mineral buildup or debris.
  • Inspect the supply hoses for kinks.
• Leaking from Faucet Base:
  • Ensure the mounting nut under the sink is securely tightened.
  • Check if the base gasket is properly seated.
• Dripping from Spout:
  • This usually indicates a worn ceramic cartridge. Contact customer support for replacement parts or professional assistance.
• Difficulty Adjusting Temperature:
  • Ensure both hot and cold water supply lines are connected correctly and valves are open.
  • The ceramic cartridge might need inspection or replacement.

For issues not covered here, please contact IMEX customer support.

Specifications

Image: Technical drawing illustrating the dimensions of the IMEX Verona GCE010 kitchen faucet.

Warranty and Support

For warranty information, replacement parts, or technical support, please contact IMEX customer service directly. Refer to your purchase documentation for specific warranty terms and contact details.
