ICE-Watch CH.BTE.B.S.14 Ice Chrono Drift Watch Instruction Manual

1. Introduction

This manual provides detailed instructions for the proper use and maintenance of your ICE-Watch CH.BTE.B.S.14 Ice Chrono Drift watch. Please read this manual thoroughly before using your watch to ensure optimal performance and longevity.

2. Package Contents

• ICE-Watch CH.BTE.B.S.14 Ice Chrono Drift Watch
• Presentation Box
• Instruction Manual (this document)

3. Watch Components

Familiarize yourself with the main components of your watch:

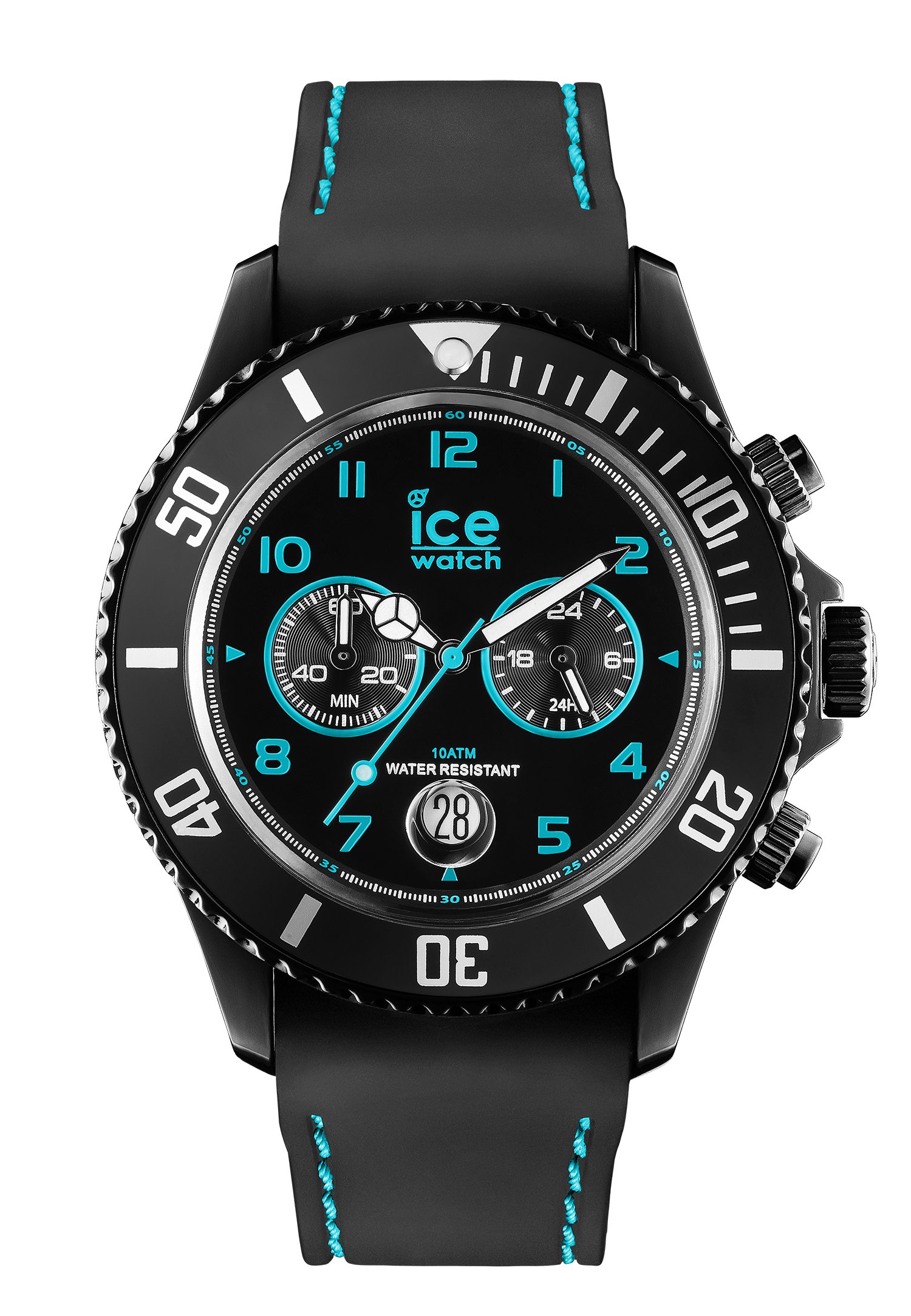

Image: Front view of the ICE-Watch CH.BTE.B.S.14 Ice Chrono Drift watch, showcasing the black dial, chronograph subdials, and silicone strap.

• Crown: Used for setting time and date.
• Pushers (A & B): Used for operating the chronograph functions.
• Dial: Displays time, date, and chronograph measurements.
• Hands: Hour, minute, and second hands.
• Subdials: Chronograph minute, second, and 24-hour indicators.
• Date Window: Displays the current date.
• Bezel: Rotatable ring around the dial, often used for timing.
• Strap: Black silicone strap with a buckle clasp.

4. Setup

4.1. Setting the Time

1. Pull the crown out to position 2 (the outermost position).
2. Rotate the crown to move the hour and minute hands to the desired time. Ensure the 24-hour subdial also reflects the correct AM/PM.
3. Push the crown back into position 0 (normal operating position).

4.2. Setting the Date

1. Pull the crown out to position 1 (the first click).
2. Rotate the crown clockwise or counter-clockwise to adjust the date. Avoid setting the date between 9 PM and 3 AM, as this can interfere with the automatic date change mechanism.
3. Push the crown back into position 0.

4.3. Using the Chronograph

The chronograph function allows you to measure elapsed time.

1. Start: Press pusher A to start the chronograph. The chronograph second hand will begin to move.
2. Stop: Press pusher A again to stop the chronograph. The elapsed time will be indicated by the chronograph hands.
3. Reset: After stopping, press pusher B to reset all chronograph hands to their zero positions.
4. Intermediate Time (Split Time): While the chronograph is running, press pusher B to measure an intermediate time. The chronograph hands will stop to show the split time, while timing continues internally. Press pusher B again to display the ongoing elapsed time.

5. Operating

5.1. Water Resistance Guidelines

Your ICE-Watch CH.BTE.B.S.14 is water-resistant up to 100 meters (10 ATM). This means it is suitable for swimming and snorkeling. However, it is not recommended for diving. Always ensure the crown is fully pushed in before exposing the watch to water. Do not operate the crown or pushers while the watch is wet or submerged.

5.2. General Use

Avoid exposing your watch to extreme temperatures, strong magnetic fields, or sudden impacts. The watch is designed for daily wear and sports activities within its water resistance limits.

6. Maintenance

6.1. Cleaning

To clean your watch, wipe the case and strap with a soft, damp cloth. For silicone straps, mild soap and water can be used. Ensure the watch is completely dry before wearing. Avoid using harsh chemicals or abrasive materials.

6.2. Battery Replacement

The watch is powered by a product-specific battery. When the battery runs low, the watch may stop or the second hand may jump in irregular intervals. Battery replacement should be performed by a qualified watch technician to ensure proper sealing and water resistance. Do not attempt to replace the battery yourself.

6.3. Storage

When not in use, store your watch in its original presentation box or a soft pouch to protect it from dust and scratches. Keep it away from direct sunlight and extreme temperatures.

7. Troubleshooting

• Watch not running: Check if the crown is fully pushed in. If the watch still does not run, the battery may need replacement.
• Date not changing: Ensure the time is set correctly, especially the AM/PM cycle. Avoid setting the date between 9 PM and 3 AM.
• Water ingress: If moisture appears inside the watch, immediately take it to a service center. Do not attempt to dry it yourself.
• Chronograph hands not resetting to zero: This may require a chronograph reset procedure, which typically involves pulling the crown out and pressing the pushers in a specific sequence. Refer to a professional watch technician if the issue persists.

8. Specifications

9. Warranty & Support

For information regarding warranty coverage and customer support, please refer to the documentation provided with your purchase or visit the official ICE-WATCH website. Keep your proof of purchase for warranty claims.
