1. Safety Information
Read and understand all safety warnings and instructions before operating this tool. Failure to follow the warnings and instructions may result in electric shock, fire, and/or serious injury.
General Safety Warnings:
- Work Area Safety: Keep your work area clean and well-lit. Cluttered or dark areas invite accidents.
- Personal Safety: Always wear eye protection (safety glasses or goggles) and hearing protection. Use appropriate personal protective equipment (PPE) such as gloves and non-skid safety shoes.
- Tool Use and Care: Do not force the tool. Use the correct tool for your application. Disconnect the air supply before making adjustments, changing accessories, or storing the tool.
- Air Supply: Ensure the air supply is clean, dry, and regulated to the specified pressure. Never exceed the maximum operating pressure.
- Maintenance: Maintain tools with care. Keep cutting tools sharp and clean. Follow instructions for lubricating and changing accessories.
- Proposition 65 Warning: This product may contain chemicals known to the State of California to cause cancer and birth defects or other reproductive harm.
2. Product Overview
The Steelman 102-4 Impact Wrench is a heavy-duty pneumatic tool designed for professional use, offering high torque and efficient operation. Its robust construction and ergonomic design ensure reliable performance and user comfort.
Image: Steelman 102-4 Impact Wrench being used to remove a lug nut from a vehicle tire.
Key Features:
- Twin Hammer Design: Delivers smooth, balanced, and powerful blows for efficient fastening and loosening.
- Variable Speed Trigger: Provides optimum control over speed, allowing for precise application.
- Extended 2-inch Anvil: Facilitates easier access to deep tire wells and accommodates flip sockets.
- Efficient Air Motor: Operates with only 4 CFM of compressed air, optimizing air consumption for longer work periods.
- Peak Torque: Delivers up to 400 ft-lb of maximum torque.

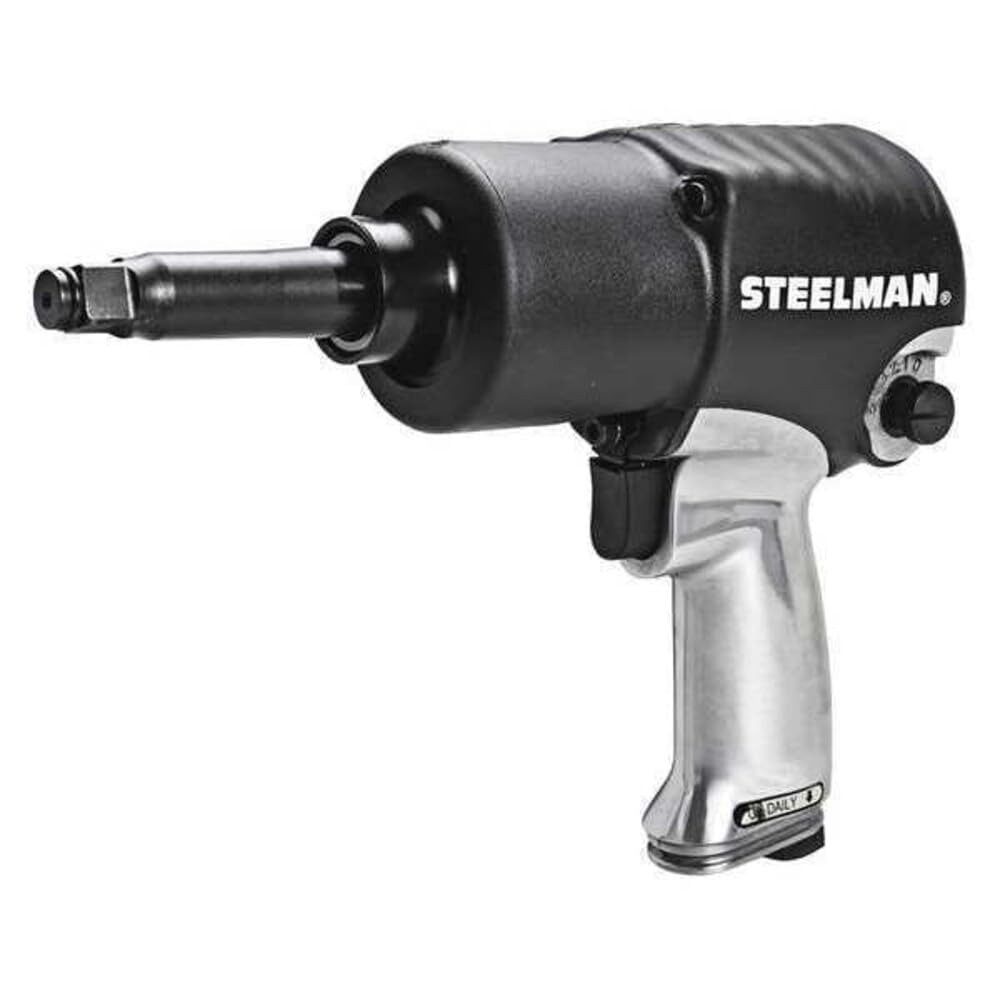

Image: Full view of the Steelman 102-4 Impact Wrench, showcasing its design.
3. Setup
Proper setup is crucial for the safe and efficient operation of your Steelman 102-4 Impact Wrench.
Air Supply Connection:
- Prepare Air Line: Ensure your air compressor is capable of providing a continuous air supply at the recommended pressure and volume. The tool requires 4 CFM at 90 PSI.
- Install Air Coupler: Apply thread sealant tape to the male threads of the air coupler (not included) and thread it into the air inlet of the impact wrench.
- Connect Air Hose: Connect a suitable air hose (minimum 3/8-inch inner diameter) to the air coupler. Ensure all connections are secure and leak-free.
- Install Air Filter/Regulator/Lubricator (FRL) Unit: For optimal performance and tool longevity, install an FRL unit in your air line, as close to the tool as possible. This unit filters moisture and debris, regulates air pressure, and provides lubrication.
- Lubrication: If an automatic lubricator is not used, add 5-10 drops of pneumatic tool oil into the air inlet before each use.
Socket Installation:
- Select Correct Socket: Choose an impact-grade socket of the correct size for the fastener. Do not use chrome sockets, as they are not designed for impact use and may shatter.
- Attach Socket: Firmly push the socket onto the 2-inch extended anvil until it locks securely in place.

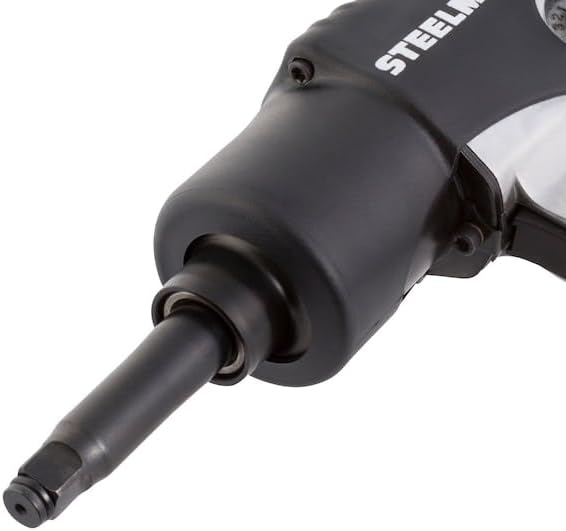

Image: Close-up view of the 2-inch extended anvil on the Steelman 102-4 Impact Wrench.
4. Operating Instructions
Follow these steps for safe and effective operation of your impact wrench.
Before Operation:
- Ensure all safety precautions are observed.
- Verify the air pressure is set to 90 PSI.
- Confirm the socket is securely attached.
Using the Impact Wrench:
- Direction Control: Locate the forward/reverse selector switch, typically near the trigger. Set it to the desired direction (clockwise for tightening, counter-clockwise for loosening).
- Variable Speed Trigger: The tool features a variable speed tease trigger. Squeeze the trigger gently for lower speed and increased control, or fully for maximum power.
- Applying Torque: Place the socket squarely onto the fastener. Apply steady pressure to the tool and gradually squeeze the trigger. Allow the tool to impact until the fastener is tightened or loosened.
- Avoid Over-tightening: For critical applications, always use a torque wrench to achieve the final specified torque after using the impact wrench for initial tightening.
Image: Side view of the Steelman 102-4 Impact Wrench, highlighting the trigger and direction selector.
5. Maintenance
Regular maintenance ensures the longevity and optimal performance of your Steelman 102-4 Impact Wrench.
Daily Maintenance:
- Lubrication: Add 5-10 drops of high-quality pneumatic tool oil into the air inlet before each use, or ensure your in-line lubricator is functioning correctly.
- Air Filter: Check and drain the moisture trap on your air compressor and FRL unit daily. Clean or replace the air filter element as needed.
- Clean Tool: Wipe down the tool exterior with a clean cloth to remove dirt and debris.
Periodic Maintenance:
- Inspect Air Hose: Regularly inspect the air hose for wear, cuts, or leaks. Replace damaged hoses immediately.
- Anvil and Retainer: Check the anvil and socket retainer for wear or damage. Replace if necessary to ensure secure socket retention.
- Fasteners: Periodically check all external fasteners on the tool for tightness.
6. Troubleshooting
Refer to this section for common issues and their solutions.
| Problem | Possible Cause | Solution |
|---|---|---|
| Tool does not operate or operates weakly | Low air pressure Insufficient air volume Lack of lubrication Obstructed air inlet Worn internal parts | Increase air pressure to 90 PSI Use a larger diameter air hose or compressor Add pneumatic tool oil Clear any obstructions Contact service for repair |
| Excessive air leakage | Loose fittings Damaged O-rings or seals | Tighten all air connections Replace damaged O-rings or seals |
| Tool runs continuously when trigger is released | Stuck trigger mechanism | Disconnect air supply immediately. Inspect and clean trigger mechanism. If issue persists, contact service. |
| Reduced torque output | Low air pressure Lack of lubrication Worn hammer mechanism | Verify air pressure and volume Ensure proper lubrication Contact service for inspection/repair |
7. Specifications
Technical specifications for the Steelman 102-4 Impact Wrench.
| Feature | Specification |
|---|---|
| Model Number | 102-4 |
| Brand | Steelman |
| Operation Mode | Pneumatic |
| Item Torque | 400 ft-lb (maximum) |
| Anvil Size | 2-inch Extended Anvil |
| Air Consumption | 4 CFM (at 90 PSI) |
| Recommended Air Pressure | 90 PSI |
| Material | Alloy Steel, Rubber |
| Item Weight | 6.4 pounds |
| Color | Silver; Black |
| UPC | 099198010243 |
8. Warranty & Support
Warranty Information:
The Steelman 102-4 Impact Wrench comes with a 1 Year Manufacturer Warranty. This warranty covers defects in materials and workmanship under normal use. Please retain your proof of purchase for warranty claims.
For specific warranty terms and conditions, please refer to the documentation included with your product or visit the official Steelman website.
Customer Support:
If you have any questions regarding the operation, maintenance, or troubleshooting of your Steelman 102-4 Impact Wrench, please contact Steelman customer support. Contact information can typically be found on the product packaging or the official Steelman website.
When contacting support, please have your model number (102-4) and proof of purchase readily available.
