Introduction
This user manual provides essential information for the proper installation, operation, and maintenance of your Waterco Hydrostorm Pool Pump Diffuser. This component is designed for use with Waterco Hydrostorm pool pumps ranging from 0.75 HP to 2.0 HP, ensuring optimal hydraulic performance and longevity of your pump system. Please read this manual thoroughly before proceeding with installation or operation.
Product Overview

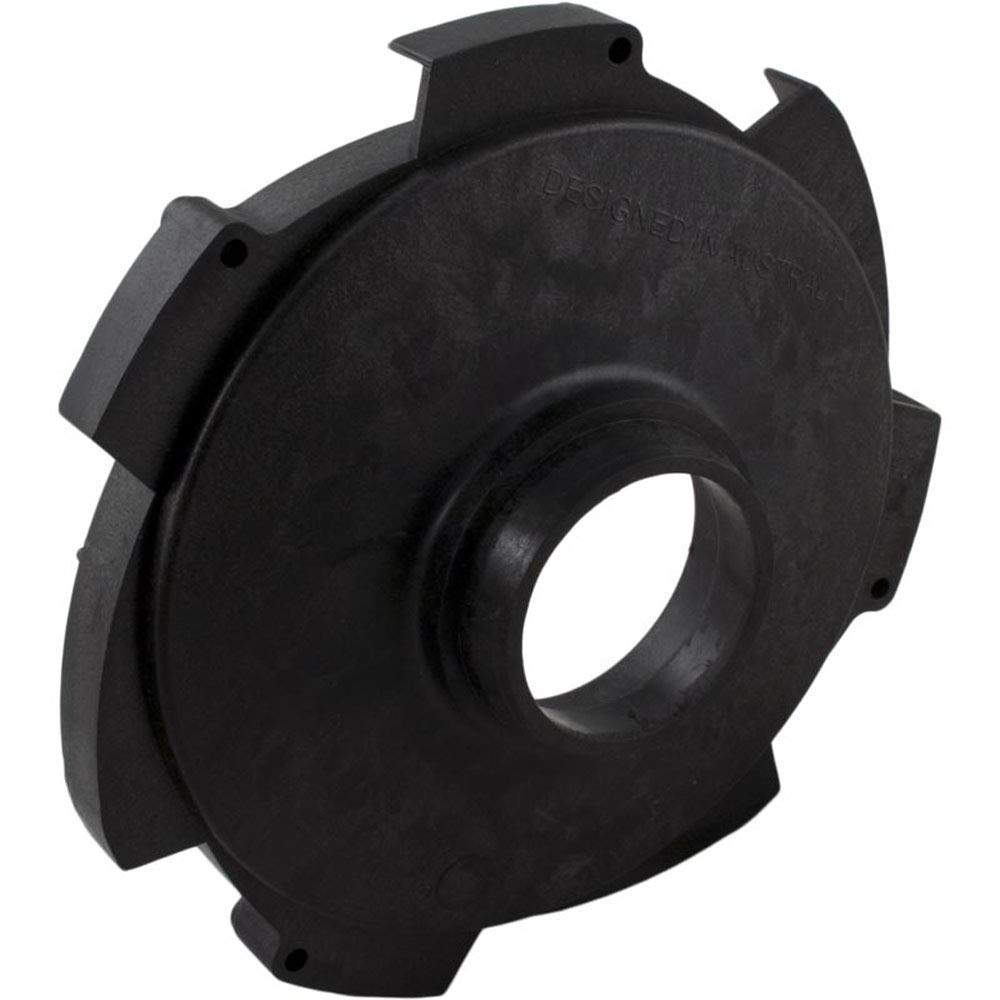

Image: Waterco Hydrostorm Pool Pump Diffuser (Model 6340101)
The Waterco Hydrostorm Pool Pump Diffuser is a critical internal component of the Hydrostorm series pool pumps. It is responsible for guiding the water flow from the impeller into the volute, converting kinetic energy into pressure energy efficiently. This black, durable component is specifically engineered for 0.75 HP to 2.0 HP Hydrostorm pump models, ensuring compatibility and peak performance. Its robust construction is designed for long-term reliability in pool environments.
Specifications
| Attribute | Detail |
|---|---|
| Brand | Waterco |
| Model Number | 6340101 |
| Compatibility | Waterco Hydrostorm Pool Pumps (0.75 HP - 2.0 HP) |
| Material | Durable Plastic (Black) |
| Product Dimensions | 6.85 x 6.7 x 1.9 inches (approximate) |
| Item Weight | 1 pound (approximate) |
| UPC | 702811383043 |
Setup and Installation
The diffuser is an internal component of the pool pump and requires disassembly of the pump wet end for installation. It is recommended that installation be performed by a qualified pool technician or an individual with experience in pool pump maintenance.
- Safety First: Always disconnect power to the pool pump at the circuit breaker before attempting any maintenance or installation. Ensure the pump is completely de-energized.
- Drain System: Close all necessary valves and drain the pump housing to prevent water spillage.
- Disassemble Pump: Carefully remove the pump's volute or wet end housing to access the impeller and diffuser area. Refer to your specific Waterco Hydrostorm pump's service manual for detailed disassembly instructions.
- Remove Old Diffuser: If replacing an existing diffuser, carefully remove the old component. Note its orientation for correct installation of the new part.
- Install New Diffuser: Position the new Waterco 6340101 diffuser onto the pump's seal plate, ensuring it seats correctly and aligns with the impeller. The diffuser should fit snugly.
- Reassemble Pump: Reassemble the pump wet end, ensuring all gaskets and O-rings are properly seated and lubricated (if necessary) to prevent leaks. Tighten all bolts and clamps according to the pump manufacturer's specifications.
- Test System: Once reassembled, slowly open valves and prime the pump. Restore power and check for proper operation and any leaks.
Note: Improper installation can lead to pump damage or reduced performance. If unsure, consult a professional.
Operating Instructions
The diffuser itself does not have operational controls; its function is integral to the pump's hydraulic system. Once correctly installed, the diffuser works automatically as part of the pump's normal operation.
- Ensure your Waterco Hydrostorm pump is properly primed before starting.
- Operate the pump according to the instructions provided in your main Waterco Hydrostorm pump user manual.
- Monitor pump performance for any unusual noises, vibrations, or reduced water flow, which could indicate an issue with the pump or its internal components, including the diffuser.
Maintenance
The diffuser is a passive component and generally requires minimal direct maintenance beyond ensuring it remains free of debris and is not cracked or damaged.
- Regular Inspection: During routine pump maintenance (e.g., cleaning the pump basket or servicing the impeller), visually inspect the diffuser for any signs of wear, cracks, or obstructions.
- Cleaning: If debris (leaves, hair, etc.) is found lodged in the diffuser vanes, carefully remove it. Use a soft brush and water if necessary. Avoid harsh chemicals that could degrade the plastic material.
- Preventative Measures: Ensure your pool's skimmer and pump baskets are regularly cleaned to prevent large debris from reaching the pump's wet end and potentially damaging the diffuser or impeller.
Troubleshooting
Problems related to the diffuser typically manifest as reduced pump performance or unusual noises. Always ensure the main pump unit is functioning correctly before suspecting the diffuser.
| Symptom | Possible Cause (Diffuser Related) | Solution |
|---|---|---|
| Reduced Water Flow / Low Pressure |
|
|
| Unusual Pump Noises (e.g., grinding, rattling) |
|
|
| Pump Not Priming |
|
|
Important: Always disconnect power before inspecting or servicing the pump. If problems persist after troubleshooting, consult a qualified pool technician.
Warranty and Support
This Waterco Hydrostorm Pool Pump Diffuser (Model 6340101) is covered by Waterco's standard manufacturer warranty against defects in materials and workmanship. The specific terms and duration of the warranty may vary by region and purchase date. Please retain your proof of purchase for warranty claims.
For technical support, warranty inquiries, or to locate an authorized service center, please contact Waterco customer service or visit their official website. Contact information can typically be found on the original pump packaging or Waterco's corporate website.
Waterco Official Website: www.waterco.com (Please verify the exact URL for your region)
