Ardes 5I06V Thermo-Electric Wine Cooler

Introduction

Thank you for choosing the Ardes 5I06V Thermo-Electric Wine Cooler. This appliance is designed to store your wine at an optimal temperature, ensuring its quality and readiness for enjoyment. This manual provides essential information for the safe and efficient use, installation, and maintenance of your wine cooler. Please read it thoroughly before operating the appliance and retain it for future reference.

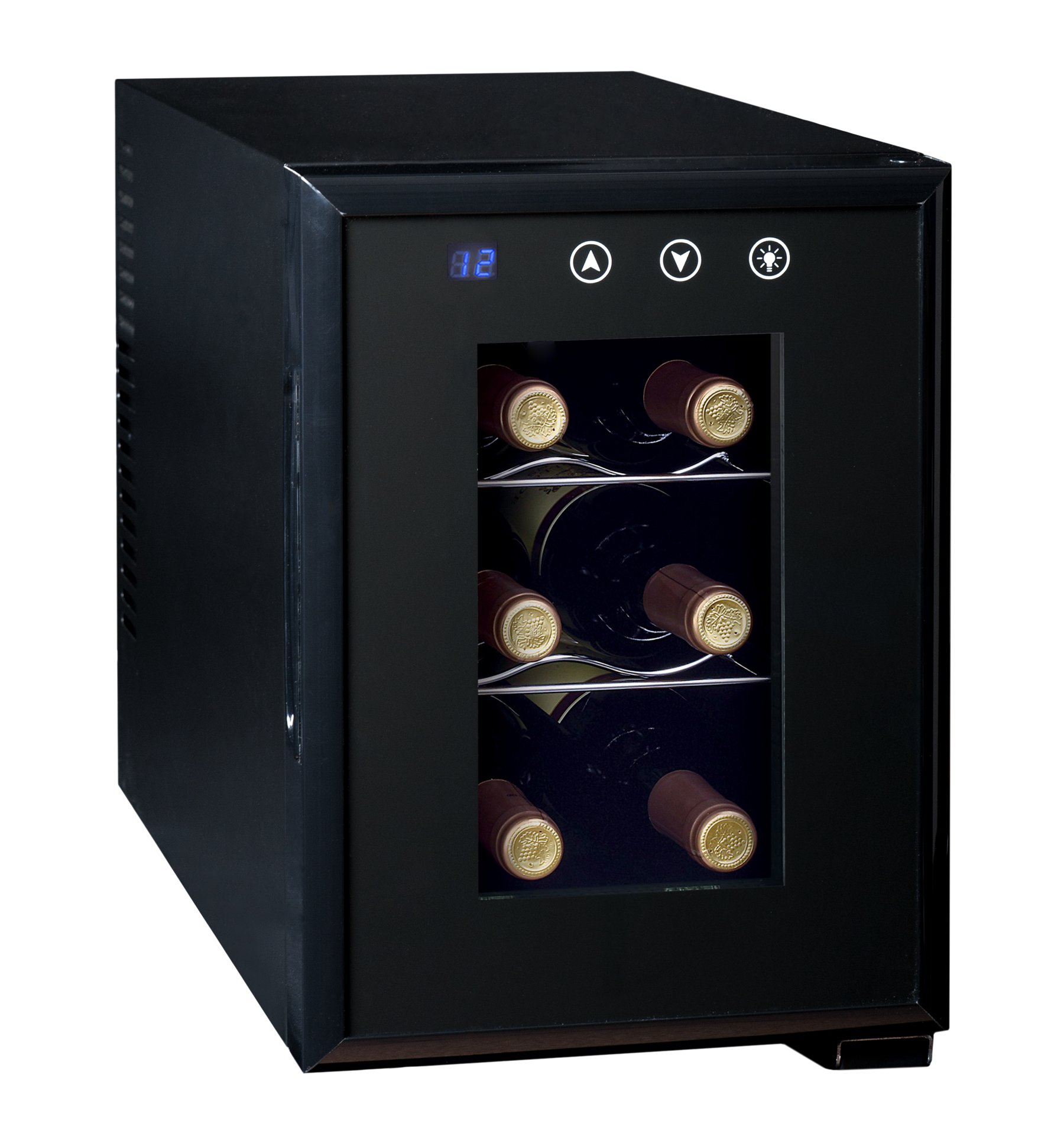

Image: Front view of the Ardes 5I06V Thermo-Electric Wine Cooler, showcasing its sleek black design and glass door.

Safety Instructions

To prevent damage to the appliance or injury to yourself and others, please observe the following safety precautions:

• Read all instructions before using the appliance.
• Ensure the power supply voltage matches the rating label on the appliance.
• Do not immerse the appliance, cord, or plug in water or other liquids.
• Unplug from the outlet when not in use and before cleaning.
• Do not operate any appliance with a damaged cord or plug, or after the appliance malfunctions or has been damaged in any manner.
• This appliance is for household use only.
• Keep ventilation openings clear of obstruction.
• Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.
• The appliance should be placed on a firm, flat surface.

Product Overview

The Ardes 5I06V is a compact thermo-electric wine cooler designed for efficient wine storage. It features a sleek black exterior, a glass door, and internal LED lighting.

Key Components:

• Control Panel: Digital display with touch controls for temperature adjustment and light.
• Glass Door: Provides visibility of contents and insulation.
• Shelves: Three pull-out shelves designed to hold standard wine bottles.
• Internal LED Light: Illuminates the interior for easy viewing.
• Ventilation Grille: Located at the rear or sides for heat dissipation.

Image: The Ardes 5I06V Wine Cooler with its door open, revealing the three internal shelves designed for wine bottles.

Setup

Proper setup ensures optimal performance and longevity of your wine cooler.

1. Unpacking:

1. Carefully remove all packaging materials.
2. Inspect the appliance for any shipping damage. If damaged, do not plug it in and contact your retailer.
3. Remove any protective films or tapes from the surfaces.

2. Placement:

• Place the wine cooler on a firm, level surface away from direct sunlight and heat sources (e.g., ovens, radiators).
• Ensure adequate air circulation around the unit. Leave at least 10 cm (4 inches) of space at the back and sides for proper ventilation.
• Avoid placing the unit in areas with extreme temperature fluctuations.

3. Initial Power-On:

1. After placement, wait at least 2 hours before plugging the unit into a power outlet. This allows any refrigerants to settle.
2. Plug the power cord into a grounded electrical outlet.
3. The display will light up, and the unit will begin to cool. Allow the unit to run empty for 2-3 hours to reach the desired temperature before loading bottles.

Operating Instructions

Your Ardes 5I06V wine cooler features intuitive touch controls for easy operation.

Image: Close-up of the control panel, showing the digital temperature display, temperature adjustment arrows (up/down), and the light control button.

1. Temperature Adjustment:

• The wine cooler operates within a temperature range of 7°C to 18°C (45°F to 64°F).
• Use the Up Arrow button to increase the desired temperature.
• Use the Down Arrow button to decrease the desired temperature.
• The digital display will show the set temperature. The actual internal temperature will gradually adjust to match the setting.

2. Internal Light Control:

• Press the Light Bulb button to turn the internal LED light on or off.
• It is recommended to keep the light off when not needed to conserve energy and minimize heat transfer.

3. Loading Bottles:

• The cooler has a capacity for 6 standard wine bottles.
• Place bottles horizontally on the pull-out shelves.
• Ensure bottles do not touch the back wall to allow for proper air circulation.
• Avoid overloading the shelves to prevent damage and ensure efficient cooling.

Maintenance

Regular cleaning and maintenance will help keep your wine cooler in optimal condition.

1. Cleaning the Interior:

1. Always unplug the appliance before cleaning.
2. Remove all bottles and shelves.
3. Wipe the interior surfaces with a soft cloth dampened with a mild detergent solution.
4. Rinse with clean water and dry thoroughly.
5. Clean the shelves with a mild detergent and dry them completely before returning them to the unit.

2. Cleaning the Exterior:

• Wipe the exterior surfaces with a soft, damp cloth.
• For stubborn stains, use a mild, non-abrasive cleaner.
• Do not use harsh chemicals or abrasive cleaning pads, as they can damage the finish.

3. Power Interruption:

• In case of a power outage, keep the door closed to maintain the internal temperature for as long as possible.
• After power is restored, the unit will resume operation at its last set temperature.

Troubleshooting

If you encounter issues with your wine cooler, refer to the following table for common problems and solutions.

If the problem persists after checking these solutions, please contact customer support.

Specifications

Technical details for the Ardes 5I06V Thermo-Electric Wine Cooler.

Warranty and Support

For warranty information or technical support, please refer to the warranty card included with your purchase or visit the official Ardes website. Keep your proof of purchase for any warranty claims.

For further assistance, you may contact Ardes customer service through their official channels. Contact details are typically available on the manufacturer's website or in the product packaging.
