Subaru Door Window Switch Panel

Introduction

This instruction manual provides essential information for the proper installation, operation, and maintenance of your new Subaru 83071FJ011 Door Window Switch Panel. This component is a direct replacement for the front driver door master power window switch in compatible Subaru vehicles. Please read this manual thoroughly before proceeding with installation or use to ensure safe and correct functionality.

Compatibility:

• 2013-2014 Subaru XV Crosstrek
• 2012-2014 Subaru Impreza 2.0L
• Does NOT fit WRX or STI models.

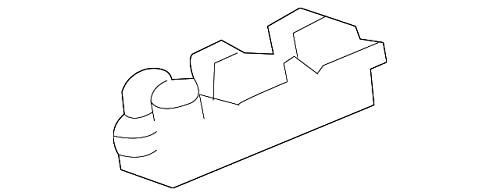

Product Overview

Setup (Installation)

Installation of the door window switch panel requires basic automotive knowledge and tools. If you are unsure about any step, it is recommended to seek professional assistance.

Safety Precautions:

• Always disconnect the vehicle's negative battery terminal before beginning any electrical work to prevent accidental short circuits or injury.
• Wear appropriate personal protective equipment, such as gloves and eye protection.
• Ensure the vehicle is parked on a level surface with the parking brake engaged.

Tools Required:

• Phillips head screwdriver
• Flathead screwdriver or plastic trim removal tool
• Socket wrench set (if applicable for door panel removal)

Installation Steps:

1. Prepare the Vehicle: Disconnect the negative battery terminal.
2. Remove Door Panel: Carefully remove the interior door panel to access the existing window switch. This typically involves removing screws hidden under trim caps or in door handles, then prying the panel away from the door frame using a trim removal tool. Refer to your vehicle's service manual for specific door panel removal instructions.
3. Disconnect Old Switch: Once the door panel is loose, locate the existing window switch panel. Disconnect the electrical connectors by pressing the release tabs and gently pulling them apart. If the switch is secured by screws or clips, remove them.
4. Remove Old Switch: Carefully detach the old switch panel from the door panel assembly.
5. Install New Switch: Position the new Subaru 83071FJ011 switch panel into the opening on the door panel. Ensure it seats correctly and secure it with any screws or clips that were removed.
6. Connect Electrical: Reconnect all electrical connectors to the new switch panel. Ensure they click securely into place.
7. Test Functionality: Before fully reassembling the door panel, reconnect the negative battery terminal. Test all functions of the new switch: all windows (up/down), window lock, and door lock/unlock. If all functions work correctly, proceed to the next step. If not, disconnect the battery and re-check all connections.
8. Reassemble Door Panel: Carefully reattach the door panel to the door frame, ensuring all clips align and secure properly. Reinstall any screws removed earlier.
9. Final Check: Confirm all functions are still working after full reassembly.

Operating Instructions

The Subaru 83071FJ011 Door Window Switch Panel provides intuitive control over your vehicle's windows and door locks.

Window Control:

• Driver's Window: Pull the driver's window switch up to raise the window, and press it down to lower the window. Some models may feature an auto up/down function, allowing a single full press or pull to fully open or close the window.
• Passenger Windows: Use the corresponding switches for each passenger window. Pull up to raise and press down to lower.

Window Lock:

• Press the window lock button (often marked with a window icon and a diagonal line through it) to disable the operation of all passenger window switches. The driver's window switch will remain functional.
• Press the button again to unlock the passenger window controls.

Door Lock/Unlock:

• Press the door lock button (often marked with a lock icon) to lock all vehicle doors.
• Press the door unlock button (often marked with an unlocked lock icon) to unlock all vehicle doors.

Maintenance

Proper maintenance ensures the longevity and reliable operation of your window switch panel.

• Cleaning: Use a soft, dry cloth to wipe the surface of the switch panel. For stubborn dirt, a slightly damp cloth with mild interior cleaner can be used, but ensure no liquid enters the switch mechanism.
• Avoid Liquid Exposure: Do not spill liquids directly onto the switch panel, as this can cause electrical damage.
• Regular Inspection: Periodically check the switch for any signs of wear, damage, or loose connections.

Troubleshooting

If you experience issues with your window switch panel, refer to the following common problems and solutions:

If troubleshooting steps do not resolve the issue, it is advisable to consult a certified Subaru technician or an authorized service center.

Specifications

Warranty

This Subaru 83071FJ011 Door Window Switch Panel comes with a 1-Year Manufacturer Warranty. This warranty covers defects in materials and workmanship under normal use. Please retain your proof of purchase for warranty claims. For specific terms and conditions, refer to the warranty information provided by your Subaru dealer or the official Subaru website.

Support

For further assistance, technical support, or inquiries regarding your Subaru 83071FJ011 Door Window Switch Panel, please contact:

• Your authorized Subaru dealership or service center.
• Subaru Customer Service (refer to the official Subaru website for contact details).

When contacting support, please have your vehicle's VIN (Vehicle Identification Number) and the part number (83071FJ011) readily available.
