Introduction
This manual provides essential information for the installation and use of the Legrand 401373 Drivia Cabinet Riser. Please read these instructions carefully before proceeding with installation or use to ensure proper function and safety. This product is designed to enhance the functionality of compatible Legrand Drivia electrical enclosures.
Product Overview
The Legrand 401373 Drivia Cabinet Riser is an accessory designed to increase the internal wiring volume within a Legrand Drivia electrical distribution cabinet. It is specifically compatible with 3 x 13 module cabinets, such as Legrand Drivia reference 401213. By adding 50 mm of depth, this riser facilitates improved cable management and allows for the accommodation of additional or deeper electrical components.

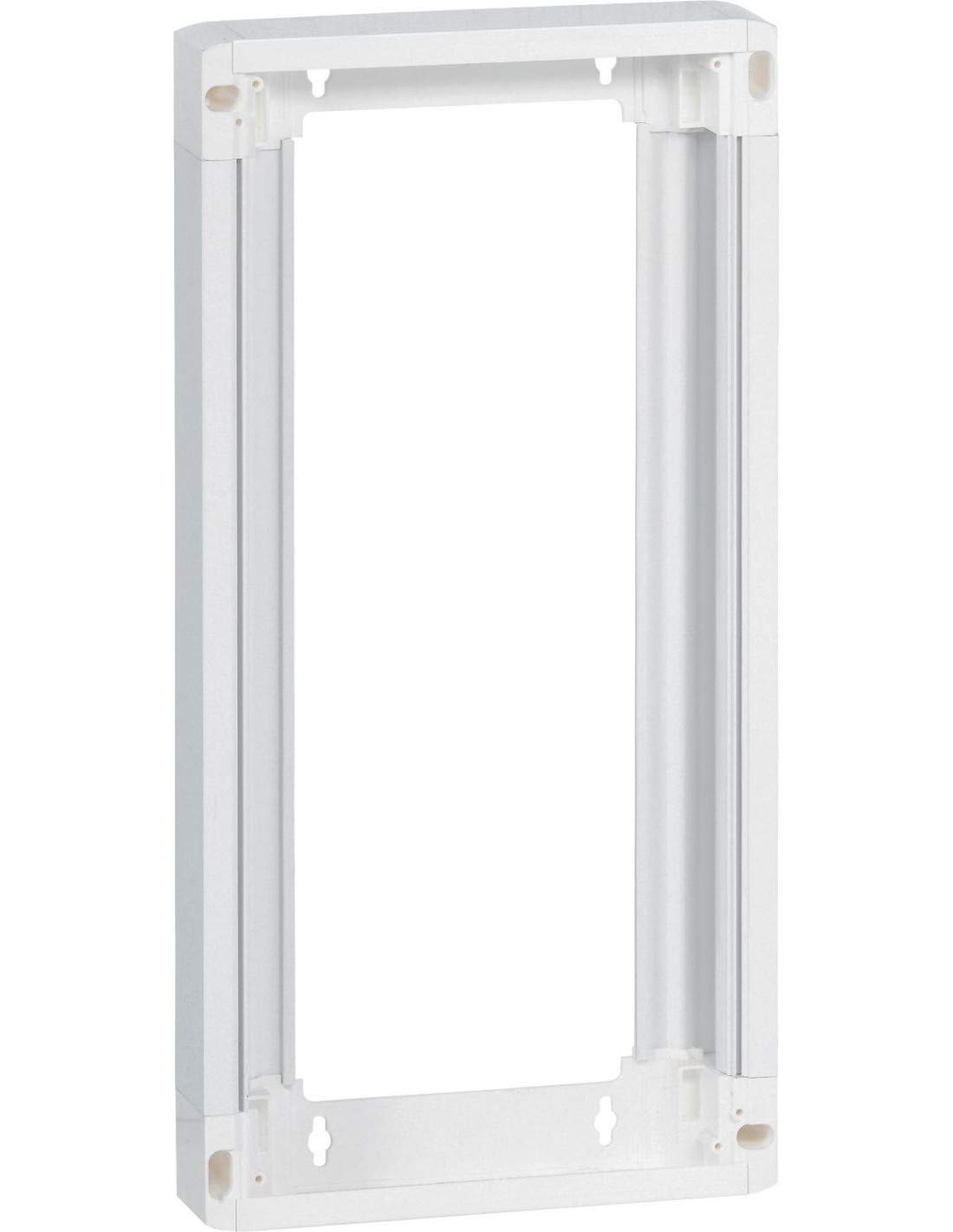

Image: The Legrand 401373 Drivia Cabinet Riser, a white component designed to extend the depth of an electrical cabinet.
Key Features
- Increased Volume: Provides an additional 3.87 dm³ of space for wiring.
- Enhanced Cable Management: Allows for easier routing and organization of cables within the enclosure.
- Compatibility: Specifically designed for Legrand Drivia 3-row, 13-module electrical cabinets.
- Fire Resistance: Features self-extinguishing properties, withstanding an incandescent wire test at 750 °C.
- Depth Extension: Adds 50 mm to the depth of the electrical cabinet.
Setup and Installation
The Legrand 401373 Drivia Cabinet Riser is intended for integration with compatible Legrand Drivia electrical distribution cabinets, specifically those with 3 rows and 13 modules (e.g., Legrand Drivia 401213). Ensure the power supply to the cabinet is disconnected before installation.
Installation Steps:
- Verify Compatibility: Confirm your existing Drivia cabinet is suitable for this riser (3 rows, 13 modules). Refer to your cabinet's documentation for specific model compatibility.
- Disconnect Power: Ensure all power to the electrical cabinet is safely turned off at the main breaker. Verify with a voltage tester that no power is present.
- Prepare the Cabinet: Open the cabinet door and remove any covers or components that obstruct the installation area for the riser. This may include front plates or internal mounting rails.
- Position the Riser: Carefully place the riser onto the cabinet, aligning it with the existing structure. The riser is designed to fit securely, extending the depth of the cabinet.
- Secure the Riser: Follow the cabinet's specific instructions for securing accessories. This typically involves clips or screws that integrate the riser firmly with the cabinet frame. Ensure all securing points are engaged and tightened.
- Reassemble and Reconnect: Once the riser is securely in place, reassemble any removed covers or components. Restore power to the cabinet after ensuring all connections are safe and secure.
Consult the main Drivia cabinet manual for detailed instructions on cabinet disassembly and reassembly, as procedures may vary slightly by cabinet model.
Usage and Functionality
The primary function of the Legrand 401373 Drivia Cabinet Riser is to provide additional space for wiring and electrical components within your Drivia enclosure. This increased depth (50 mm) improves cable routing, reduces clutter, and allows for the installation of deeper devices or more extensive wiring configurations that would otherwise not fit.
This product does not have active operational controls or electronic functions; its utility is passive, enhancing the capacity and organization of your electrical installation. Once installed, it becomes an integral part of the electrical cabinet structure.
Maintenance
The Legrand 401373 Drivia Cabinet Riser requires minimal maintenance. Periodically inspect the riser for any signs of damage, cracks, or loose connections during routine electrical system checks. Ensure the riser remains firmly attached to the cabinet.
To maintain optimal performance and safety, ensure the cabinet interior, including the riser, remains free of dust and debris. Clean with a dry, soft cloth if necessary. Do not use abrasive cleaners, solvents, or harsh chemicals, as these may damage the material.
Troubleshooting
- Riser does not fit the cabinet:
Ensure the cabinet is a Legrand Drivia model with 3 rows and 13 modules. Verify the riser's orientation during installation. Incorrect cabinet type or orientation will prevent proper fit. - Riser is loose after installation:
Recheck all securing mechanisms. Ensure any clips or screws (if applicable) are properly engaged and tightened according to the main cabinet's instructions. A loose riser can compromise the integrity of the electrical enclosure. - Insufficient space even with riser installed:
The riser adds a specific depth (50 mm). If more space is still needed, re-evaluate your wiring and component layout. For significantly increased capacity, consider alternative, larger cabinet solutions or consult a qualified electrician for professional advice.
Specifications
| Brand | Legrand |
| Model Number | 401373 |
| Product Type | Drivia Cabinet Riser |
| Compatibility | Legrand Drivia 3 x 13 module cabinets (e.g., Ref. 401213) |
| Color | White |
| Thickness | 50 mm |
| Width | 250 mm |
| Height | 500 mm |
| Volume Added | 3.87 dm³ |
| Fire Resistance | Withstands incandescent wire 750 °C |
Warranty and Support
For detailed warranty information, technical support, or assistance with your Legrand 401373 Drivia Cabinet Riser, please refer to the official Legrand website or contact your local Legrand distributor. Specific warranty terms and support options may vary by region and product. Always ensure you have your product model number (401373) available when contacting support.
