FUXTEC Lawn Roller GW30 Instruction Manual

1. Introduction

The FUXTEC Lawn Roller GW30 is a robust and efficient tool designed for various lawn care tasks. It is ideal for compacting soil, pressing down newly sown grass seeds, and leveling uneven lawn surfaces. Its fillable drum allows for adjustable weight, making it versatile for different soil conditions and applications. Constructed from durable powder-coated steel, this lawn roller is built for longevity and ease of use.

2. Safety Instructions

Please read and understand all safety instructions before operating the FUXTEC Lawn Roller GW30. Failure to follow these instructions may result in injury or damage to the product.

• Always wear appropriate footwear when operating the lawn roller.
• Keep children and pets away from the work area during operation.
• Do not overload the roller beyond its recommended capacity with filling material.
• Use the roller on relatively level ground to maintain control and prevent tipping.
• Store the lawn roller in a secure, dry place, out of reach of children.
• Inspect the roller for any damage or loose parts before each use.

3. Package Contents

Upon unpacking, ensure all components are present and undamaged:

• FUXTEC Lawn Roller GW30 drum unit
• Handle assembly (upper and lower sections)
• Metal dirt scraper
• Assembly hardware (bolts, nuts, washers)

4. Setup and Assembly

Follow these steps to assemble your FUXTEC Lawn Roller GW30:

1. Attach the Handle to the Roller Drum: Secure the lower sections of the handle to the sides of the roller drum using the provided bolts, nuts, and washers. Ensure all connections are tight.
2. Connect Upper Handle Section: Join the upper handle section to the lower handle sections, securing them with the remaining hardware.
3. Install the Dirt Scraper: Position the metal dirt scraper so it rests close to the roller drum, preventing soil buildup during operation. Secure it to the handle frame.
4. Fill the Roller Drum: The roller drum can be filled with sand or water to achieve the desired weight for compaction. Locate the fill plug on the side of the drum, open it, and carefully fill the drum. Close the plug securely after filling to prevent leakage.

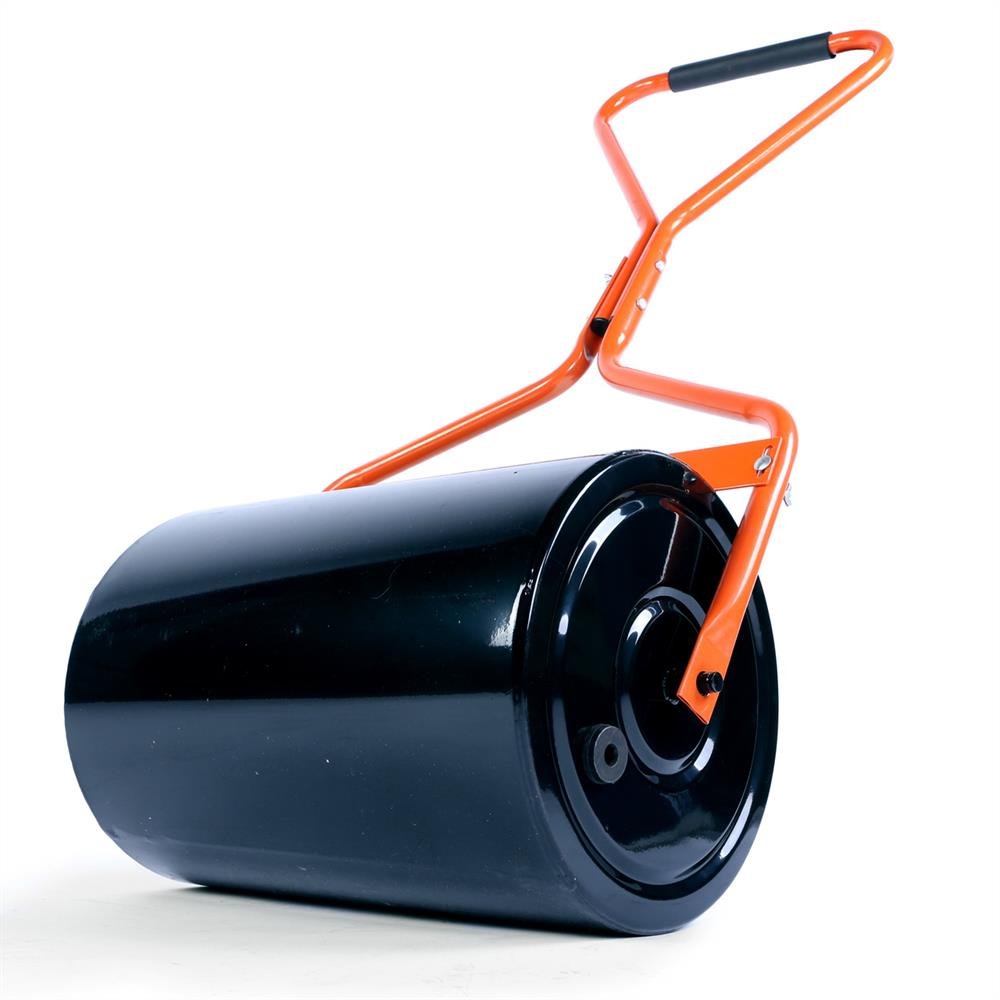

Image: FUXTEC Lawn Roller GW30 with the handle assembly connected to the roller drum.

Image: Side view of the FUXTEC Lawn Roller GW30, highlighting the handle and the metal dirt scraper.

5. Operating Instructions

The FUXTEC Lawn Roller GW30 is operated manually. Its effectiveness depends on the weight of the roller and the condition of your lawn.

• Weight Adjustment: Adjust the weight of the roller by filling it with water or sand. Water provides a lighter compaction, while sand offers a heavier, more firm compaction.
• Rolling New Seeds: After sowing new grass seeds, roll the area to ensure good seed-to-soil contact. This helps prevent seeds from being blown away and promotes better germination.
• Leveling Uneven Surfaces: For minor unevenness, roll the lawn when the soil is slightly moist. This allows the roller to gently press down raised areas. Avoid rolling when the soil is too wet, as this can compact the soil excessively and hinder drainage.
• General Lawn Compaction: Use the roller to compact the lawn after winter or heavy foot traffic. This helps to firm up the turf and prepare it for growth.
• Movement: Push and pull the roller in straight, overlapping passes across the lawn to ensure even coverage.

Image: The FUXTEC Lawn Roller GW30, ready for use on a lawn.

6. Maintenance

Regular maintenance will ensure the longevity and optimal performance of your FUXTEC Lawn Roller GW30.

• Cleaning: After each use, clean the roller drum and the metal dirt scraper to remove any accumulated soil, grass, or debris. A damp cloth is usually sufficient.
• Storage: Store the lawn roller in a dry, sheltered location to protect it from weather elements, which can cause rust or material degradation.
• Inspection: Periodically check all bolts and connections to ensure they remain tight. Tighten any loose fasteners as needed.
• Emptying: If storing for an extended period in freezing temperatures, it is advisable to empty the water from the drum to prevent damage from ice expansion.

7. Troubleshooting

If you encounter issues with your lawn roller, consider the following common solutions:

• Roller not compacting effectively: Ensure the drum is filled to an appropriate weight for your soil type. Drier soil may require more weight.
• Difficulty pushing/pulling the roller: Check for obstructions around the drum or wheels. Ensure the ground is not excessively soft or muddy. Verify that all assembly points are secure and not causing friction.
• Dirt accumulating on the roller: Adjust the metal dirt scraper to ensure it is positioned correctly and effectively removing debris from the drum surface.

8. Specifications

9. Warranty and Support

For warranty information, technical support, or to order replacement parts, please contact FUXTEC customer service directly. Refer to the contact details provided with your purchase or visit the official FUXTEC website.

Website: www.fuxtec.de
