SINGER 1512 Promise II Sewing Machine User Manual

1. Introduction

This manual provides essential information for the safe and efficient use of your SINGER 1512 Promise II Sewing Machine. Please read all instructions carefully before operating the machine to ensure proper setup, operation, and maintenance.

Image 1.1: Front view of the SINGER 1512 Promise II Sewing Machine, showing its compact design and stitch selection dial.

2. Setup

Before beginning any sewing project, proper setup of your machine is crucial. Ensure the machine is placed on a stable, flat surface and connected to a 110-Volt power outlet, as this machine is designed for United States and Canadian use only.

2.1 Threading the Machine

The SINGER 1512 Promise II features easy machine threading. Follow the numbered guides on the machine for correct upper thread path. For bobbin winding, utilize the automatic bobbin winder function.

Image 2.1: Close-up of the automatic bobbin winder mechanism with a blue thread spool, illustrating the ease of bobbin preparation.

2.2 Accessory Storage and Free Arm

The machine includes an accessory storage drawer. This drawer can be removed to create a free arm, which is useful for stitching in hard-to-reach areas such as cuffs and pant hems.

Image 2.2: Various sewing machine accessories, including different presser feet, bobbins, needles, and a seam ripper, typically found in the accessory storage drawer.

3. Operating Instructions

Your SINGER 1512 Promise II Sewing Machine offers a range of features for various sewing tasks.

3.1 Stitch Selection

The machine includes 13 built-in stitches, including an automatic 4-step buttonhole. Stitches are selected by turning the stitch selection dial located on the front of the machine.

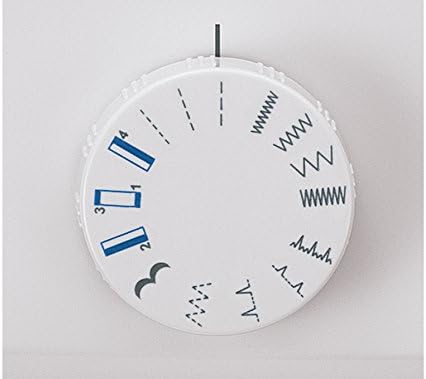

Image 3.1: Close-up of the stitch selection dial, displaying various stitch patterns and the 4-step buttonhole settings.

3.2 Tension Adjustment

The adjustable tension feature ensures consistent straight stitch quality across different fabric types. Refer to the tension dial and adjust as needed for your specific fabric and thread combination.

3.3 Presser Foot Pressure

Automatic presser foot pressure allows for sewing on both lightweight and heavyweight fabrics without puckering or pulling. The machine automatically adjusts the pressure for optimal fabric feeding.

3.4 Reverse Stitching

A reverse lever is conveniently located for automatic stitch locking, reinforcing seams at the beginning and end of your stitching lines.

3.5 Included Presser Feet

The machine comes with four essential presser feet:

• All-purpose foot
• Buttonhole foot
• Button sewing foot
• Zipper foot

Image 3.2: The four standard presser feet included with the machine: buttonhole, all-purpose, button sewing, and zipper feet.

4. Maintenance

Regular maintenance ensures the longevity and optimal performance of your sewing machine.

4.1 Cleaning

Periodically clean lint and dust from the bobbin area and feed dogs using a small brush. Ensure the machine is unplugged before cleaning.

4.2 Lubrication

Consult your full product manual for specific lubrication points and recommended lubricants. Proper lubrication prevents wear and tear on moving parts.

5. Troubleshooting

If you encounter issues with your SINGER 1512 Promise II, refer to the following common problems and solutions:

• Thread Snapping or Tension Issues:
  Check that the machine is threaded correctly, both upper thread and bobbin. Ensure the tension dial is set appropriately for your fabric and thread. Use good quality thread.
• Bobbin Jamming or Thread Tangling:
  Verify that the bobbin is wound evenly and inserted correctly into its case. Ensure the bobbin thread is pulled through the tension spring properly. Clean any lint or debris from the bobbin area.
• Skipped Stitches:
  Replace the needle with a new, correct size and type for your fabric. Ensure the needle is inserted correctly and fully. Re-thread the machine.

6. Specifications

7. Warranty and Support

For warranty information, product registration, or technical assistance, please refer to the official SINGER website or contact SINGER customer support directly. Keep your purchase receipt as proof of purchase.
