Introduction
Thank you for purchasing the HiKOKI UF18DSDL(NN) Cordless Fan. This fan is designed for versatility, offering both 14.4V/18V cordless operation and AC 100V power compatibility. Its compact and lightweight design, combined with flexible placement options and two-stage airflow control, makes it suitable for various environments. Please read this manual thoroughly before use to ensure safe and optimal performance.
Safety Information
Always observe basic safety precautions to reduce the risk of fire, electric shock, and personal injury.
- Read all instructions before using the appliance.
- Do not operate the fan with a damaged cord or plug.
- Keep fingers and other objects away from the fan blades during operation.
- Do not use the fan near water or in wet conditions.
- Always unplug the fan before cleaning or performing maintenance.
- Ensure the fan is placed on a stable surface or securely mounted when in use.
- Use only HiKOKI genuine batteries and chargers.
Package Contents
The HiKOKI UF18DSDL(NN) Cordless Fan package includes:
- HiKOKI UF18DSDL(NN) Cordless Fan Unit
- AC Adapter
- Instruction Manual
Note: Battery and charger are sold separately.
Product Overview
The HiKOKI UF18DSDL(NN) fan offers a compact and versatile solution for airflow needs. Key features include:
- Compact and Lightweight: Weighing only 0.9 kg (excluding battery), it is highly portable.
- Flexible Placement: Designed for hanging or wall mounting, offering versatile positioning.
- Angle Adjustment: The fan head can be adjusted within a range of 60 degrees upwards and 30 degrees downwards, in 15-degree increments.
- Two-Stage Airflow: Switch between 'Strong' and 'Weak' modes for optimal airflow.
- Dual Power Source: Operates with 14.4V/18V batteries or via the included AC adapter for 100V power.
Figure 1: HiKOKI UF18DSDL(NN) Cordless Fan unit.
Figure 2: Key components of the fan, including strap holes, strong/weak mode switch, bottom handle, and wall hanging hook.
Figure 3: The fan's compact and lightweight design makes it easy to carry and use in various settings, such as camping.
Setup
1. Power Source Connection
The UF18DSDL(NN) fan can be powered by a HiKOKI 14.4V or 18V lithium-ion battery (sold separately) or by the included AC adapter.
- Battery Operation: Insert a charged 14.4V or 18V HiKOKI battery into the battery slot until it clicks into place.
- AC Operation: Connect the supplied AC adapter to the fan's AC input port, then plug the adapter into a standard 100V AC outlet.
Figure 4: The fan can be powered by the included AC adapter for 100V operation.
2. Placement Options
The fan offers flexible placement:
- Freestanding: Place the fan on a flat, stable surface using its bottom handle as a stand.
- Hanging/Wall Mounting: Utilize the integrated wall hanging hooks or strap holes (4 locations) to hang the fan from pipes (up to φ48.6mm) or mount it on a wall. Ensure it is securely fastened to prevent falling.

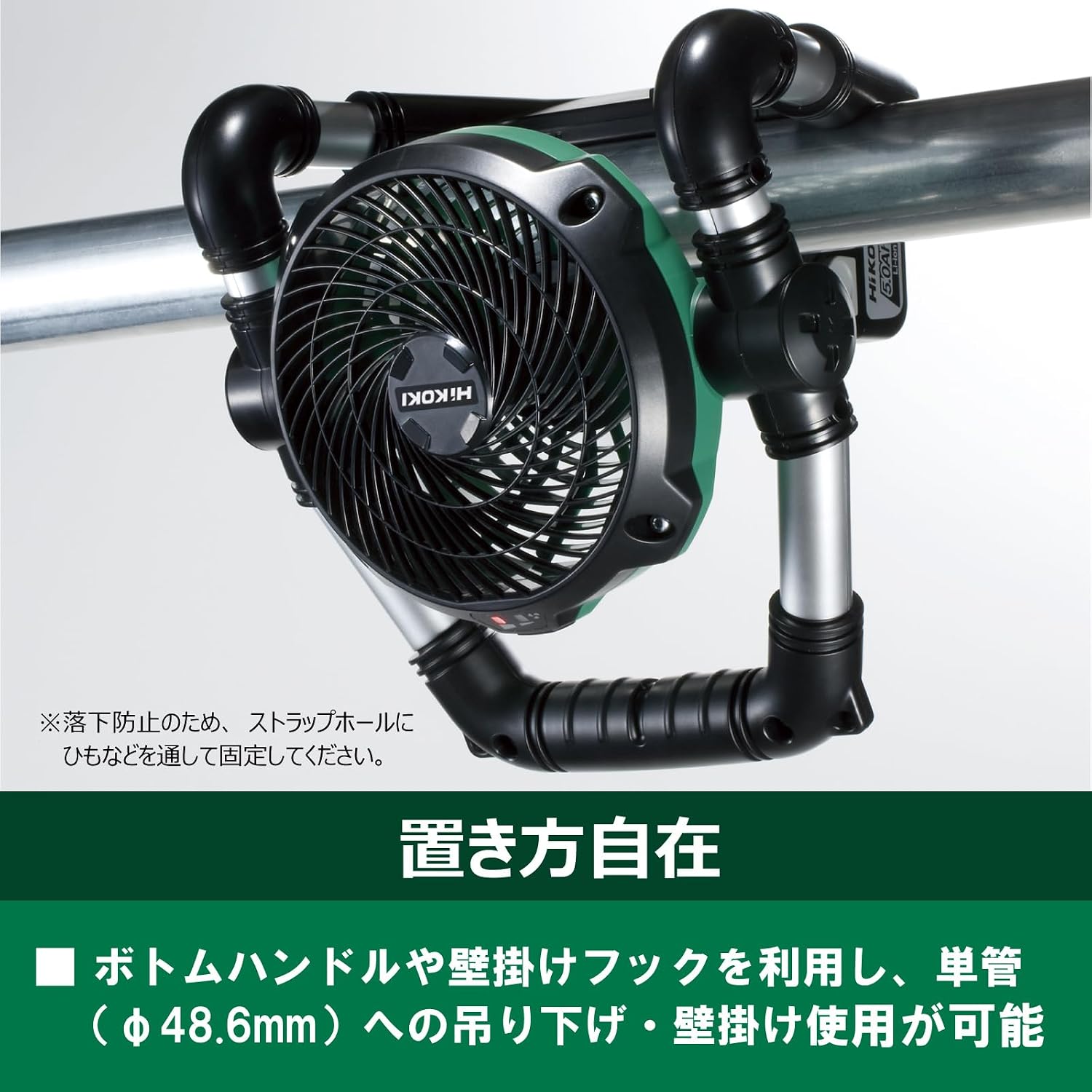

Figure 5: The fan can be hung from pipes or mounted on a wall. For safety, secure it with a strap through the strap holes.
Operating Instructions
1. Power On/Off
Press the power button to turn the fan on or off.
2. Airflow Mode Selection
The fan features a two-stage airflow switch:
- Strong Mode: Provides maximum airflow of 190 m/min.
- Weak Mode: Provides a gentler airflow of 120 m/min, ideal for extended use (approx. 21 hours with BSL1850 battery).
3. Angle Adjustment
Manually adjust the fan head to direct airflow. The angle can be set upwards by 60 degrees and downwards by 30 degrees, with 15-degree incremental stops.
Figure 6: The fan head can be adjusted up to 60 degrees upwards and 30 degrees downwards.
Maintenance
Regular maintenance ensures the longevity and efficient operation of your fan.
- Cleaning: Disconnect the power source (remove battery or unplug AC adapter) before cleaning. Wipe the exterior with a soft, damp cloth. Do not use abrasive cleaners or solvents.
- Blade Cleaning: Periodically clean dust from the fan blades and grille. Use a soft brush or vacuum cleaner. Do not attempt to disassemble the fan for cleaning beyond what is specified in the manual.
- Storage: When not in use for extended periods, store the fan in a dry, cool place, away from direct sunlight and moisture. Remove the battery if storing for a long time.
Troubleshooting
If you encounter issues with your fan, refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Fan does not turn on. | No power supply; Battery depleted; AC adapter not properly connected. | Ensure battery is charged and properly inserted, or AC adapter is securely plugged in. |
| Weak airflow. | Fan is in 'Weak' mode; Obstruction in front/rear grille; Dirty blades. | Switch to 'Strong' mode. Check for and remove any obstructions. Clean fan blades and grilles. |
| Unusual noise during operation. | Loose parts; Obstruction hitting blades. | Turn off and unplug the fan. Inspect for any loose parts or obstructions. If noise persists, contact customer support. |
If the problem persists after trying these solutions, please contact HiKOKI customer support.
Specifications
| Feature | Specification |
|---|---|
| Model Number | UF18DSDL(NN) |
| Power Voltage | 14.4V / 18V (Cordless) |
| AC Adapter Input | 100V, 50/60Hz |
| AC Adapter Output | 12V, 1.0A |
| Air Speed (Strong Mode) | 190 m/min |
| Air Speed (Weak Mode) | 120 m/min |
| Air Speed Settings | 2 stages (Strong/Weak) |
| Weight (excluding battery) | 0.9 kg |
| Dimensions (W x L x H, excluding battery) | 256 x 199 x 252 mm |
| Compatible Batteries (sold separately) | BSL36A18, BSL36B18 (HiKOKI brand only), BSL1860, BSL1850, BSL1840, BSL1830, BSL1830C, BSL1825, BSL1460, BSL1450, BSL1440, BSL1430, BSL1430C, BSL1425, BSL1420, BSL1415, BSL1415S |
| Compatible Chargers (sold separately) | UC18YDL, UC18YSL3, UC18YML2, UC18YKSL, UC18YFSL, UC18YSL2, UC18YRSL, UC18YGSL |
Warranty and Support
HiKOKI products are manufactured to high-quality standards. For warranty information, please refer to the warranty card included with your purchase or visit the official HiKOKI website. Keep your proof of purchase for warranty claims.
For technical support, spare parts, or service inquiries, please contact your local HiKOKI dealer or visit the official HiKOKI brand store online:
Visit the Official HiKOKI Store
Figure 7: For support and other products, visit the HiKOKI brand store.
