Product Overview
The Westfalia ASTM12 Control Unit, model 900001506005, is an electronic module designed to manage the electrical signals for trailer connections in vehicles. This unit ensures proper functioning of trailer lighting and other electrical components, providing a reliable interface between the vehicle and the trailer's electrical system.

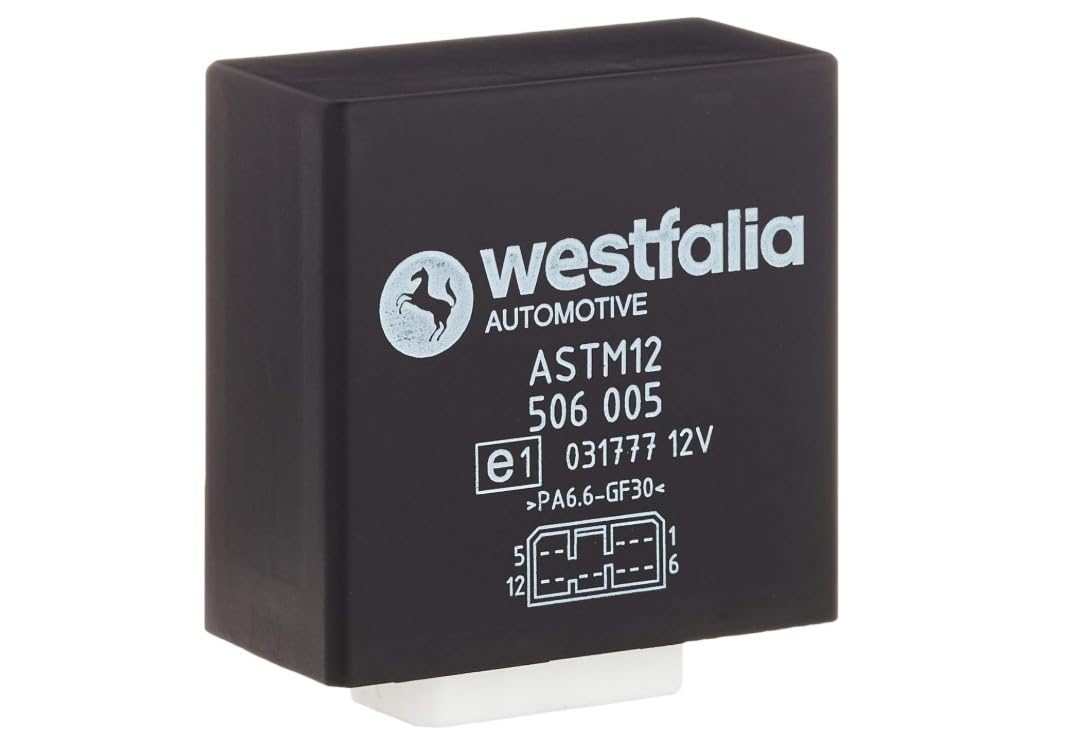

This image displays the Westfalia ASTM12 control unit. It is a compact, black rectangular electronic module featuring a white multi-pin electrical connector on one side. The top surface of the unit is labeled with 'WESTFALIA', 'ASTM12', '506 005', '021777 12V', and a circuit diagram indicating pin assignments. This unit is designed to manage electrical signals for trailer connections.
Setup and Installation
Installation of the Westfalia ASTM12 Control Unit requires careful attention to the vehicle's electrical system. It is recommended that installation be performed by a qualified professional to ensure correct wiring and functionality.
General Installation Guidelines:
- Safety First: Disconnect the vehicle's battery before beginning any electrical work.
- Location: Mount the control unit in a dry, protected area within the vehicle, away from excessive heat, moisture, and vibrations.
- Wiring: Connect the unit according to the specific wiring diagram provided with your vehicle's trailer electrical kit. Ensure all connections are secure and properly insulated. The unit operates on a 12V system.
- Testing: After installation, reconnect the battery and test all trailer lighting and functions thoroughly before use.
Operating Instructions
The ASTM12 Control Unit operates automatically once correctly installed. It detects when a trailer is connected and manages the electrical signals from the vehicle to the trailer's lights (e.g., brake lights, turn signals, tail lights) and other auxiliary functions.
Normal Operation:
- When a trailer is connected to the vehicle's tow bar electrical socket, the control unit activates.
- The unit processes the vehicle's electrical signals and transmits them to the trailer, ensuring correct illumination and signaling.
- No manual intervention is typically required for the control unit's basic operation.
Maintenance
The Westfalia ASTM12 Control Unit is designed for long-term reliability and typically requires minimal maintenance.
Recommended Maintenance:
- Periodic Inspection: Annually, or as part of routine vehicle maintenance, inspect the unit and its wiring for any signs of damage, corrosion, or loose connections.
- Cleanliness: Ensure the unit and its connectors are kept clean and free from dirt, dust, and moisture. Use a dry cloth for cleaning.
- Environmental Protection: Verify that the mounting location continues to protect the unit from harsh environmental conditions.
Troubleshooting
If you experience issues with your trailer's electrical functions, consider the following troubleshooting steps:
Common Issues and Solutions:
- No Trailer Lights:
- Check the trailer's own wiring and bulbs.
- Verify the connection between the vehicle and the trailer is secure.
- Inspect the vehicle's fuses related to the trailer electrical system.
- Check the control unit's connections for looseness or corrosion.
- Incorrect Light Function (e.g., brake light stays on):
- Ensure correct wiring according to the installation diagram.
- Check for short circuits in the trailer or vehicle wiring.
- Unit Not Responding:
- Confirm the unit is receiving power (12V).
- If issues persist after basic checks, professional diagnosis is recommended.
Specifications
| Model Number | 900001506005 |
| Brand | Westfalia |
| Voltage | 12V |
| Weight | 90 Grams |
| Approximate Dimensions (L x W x H) | 18.3 x 11.6 x 4 cm (packaging dimensions) |
| Vehicle Service Type | Truck, Van, Car (Universal Fit) |
| Components Included | Control Unit |
| Manufacturer | WESTFALIA |
| Country of Origin | China |
Warranty and Support
The Westfalia ASTM12 Control Unit is covered by a manufacturer's warranty.
Warranty Information:
- This product comes with a 2-year manufacturer's warranty. Please retain your proof of purchase for warranty claims.
- The warranty covers defects in materials and workmanship under normal use. It does not cover damage resulting from improper installation, misuse, or unauthorized modifications.
Customer Support:
For technical assistance, warranty claims, or further inquiries, please contact Westfalia customer service or an authorized Westfalia dealer. Contact information can typically be found on the official Westfalia website or product packaging.
