1. Introduction
This manual provides essential instructions for the proper installation, functionality check, and maintenance of the Turbochef HHB-8060 Door Receiver Assembly. This component is a genuine OEM replacement part designed to ensure optimal performance and compatibility with your Turbochef oven.
Adhering to these guidelines will help maintain the safety and operational integrity of your appliance.
2. Product Overview
The HHB-8060 Door Receiver Assembly is a critical component in the door mechanism of Turbochef ovens. It is designed to securely receive and hold the oven door in its closed position, contributing to efficient operation and safety.

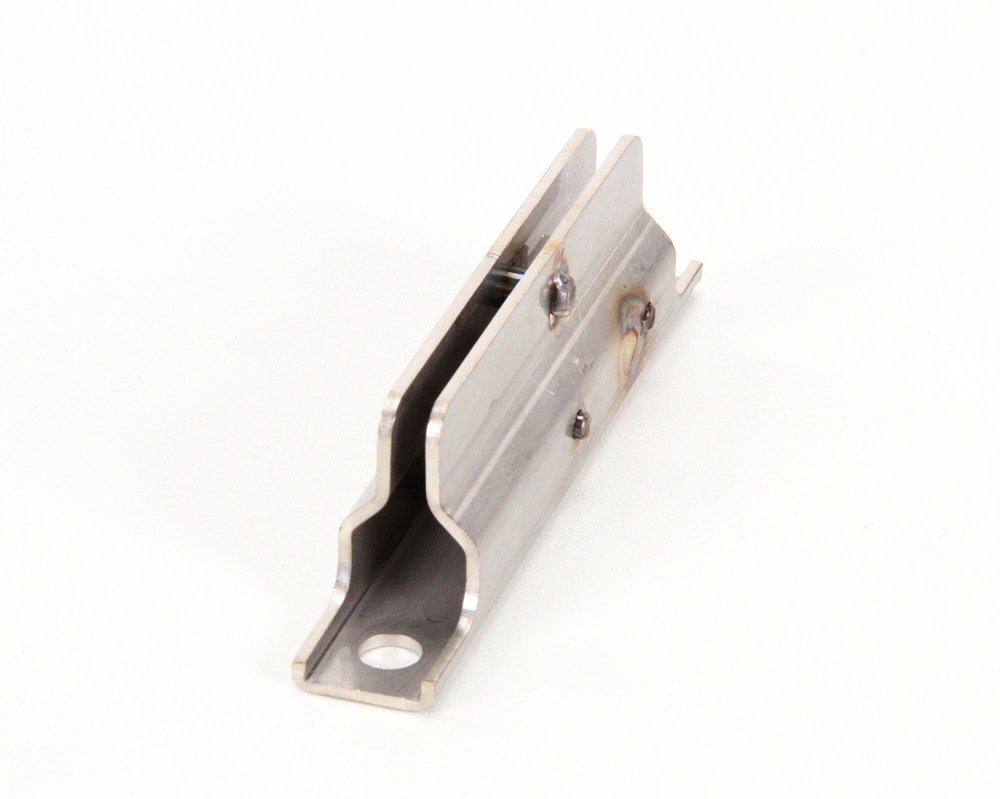

Figure 1: Turbochef HHB-8060 Door Receiver Assembly. This image displays a metallic component, typically made of stainless steel, featuring a U-shaped channel with several small weld points along its sides. One end of the component includes a circular mounting hole, indicating its attachment point within the oven door mechanism.
3. Installation Instructions
Safety First: Before beginning any installation or replacement procedure, ensure the oven is completely disconnected from its power source. Failure to do so may result in electrical shock or injury.
Required Tools (Typical):
- Screwdriver set (Phillips and/or flathead, depending on oven model)
- Wrench or nut driver set (if applicable)
- Work gloves (recommended)
Procedure:
- Disconnect Power: Unplug the oven from the wall outlet or turn off the circuit breaker supplying power to the oven.
- Access the Door Receiver: Depending on your specific Turbochef oven model, you may need to remove the oven door or access the internal components where the door receiver is located. Refer to your oven's primary service manual for specific access procedures.
- Remove Old Receiver: Carefully locate the existing door receiver assembly. Unscrew any fasteners or release any clips holding it in place. Note the orientation and connection points for reassembly.
- Install New Receiver: Position the new Turbochef HHB-8060 Door Receiver Assembly in the exact location and orientation as the old part. Secure it using the original fasteners or new ones if provided. Ensure all connections are tight and secure.
- Reassemble Oven: Reattach any panels or the oven door that were removed during the process. Ensure all components are properly aligned and secured.
- Restore Power: Once installation is complete and all components are securely in place, restore power to the oven.
4. Functionality Check
After installation, perform the following checks to ensure the door receiver assembly is functioning correctly:
- Door Closure: Gently close the oven door. It should close smoothly and securely, without excessive force or resistance.
- Secure Latch: Verify that the door remains firmly closed. There should be no noticeable gaps or looseness when the door is in the closed position.
- Opening Mechanism: Open the oven door. It should release easily and open without binding.
If the door does not close or open properly, re-check the installation steps to ensure the receiver is correctly aligned and secured.
5. Maintenance
The Turbochef HHB-8060 Door Receiver Assembly is designed for durability and minimal maintenance. However, periodic inspection can prolong its lifespan and ensure continued reliable operation:
- Visual Inspection: Periodically inspect the receiver for any signs of wear, damage, or corrosion.
- Cleaning: If accessible, gently clean the receiver area to remove any food debris or grease buildup that could impede its function. Use a soft cloth and mild, non-abrasive cleaner. Ensure the area is dry before operating the oven.
- Fastener Check: Occasionally check that all mounting fasteners remain tight. Do not overtighten.
6. Troubleshooting
If you encounter issues with your oven door after installing the HHB-8060 Door Receiver Assembly, consider the following:
- Door Not Closing Securely:
- Verify the receiver is correctly aligned and fully seated.
- Check for any obstructions preventing the door from closing completely.
- Ensure all mounting screws are tightened appropriately.
- Door Sticking or Difficult to Open:
- Inspect for debris or buildup around the receiver mechanism.
- Confirm the receiver is not overtightened, which could cause binding.
- Unusual Noises:
- Ensure all components are properly installed and secured, preventing rattling.
If problems persist after troubleshooting, contact Turbochef customer support or a qualified service technician.
7. Specifications
| Attribute | Detail |
|---|---|
| Manufacturer | Turbochef |
| Part Number | HHB-8060 |
| Item Weight | 5 ounces |
| Product Dimensions | 7 x 5 x 4 inches |
| Item Model Number | HHB-8060 |
| Item Package Quantity | 1 |
8. Warranty Information
This HHB-8060 Door Receiver Assembly is a genuine OEM (Original Equipment Manufacturer) part. Using genuine OEM parts is crucial for maintaining the validity of your Turbochef oven's original warranty. Non-OEM parts may void existing warranties and could lead to compatibility or performance issues.
For specific warranty details regarding your Turbochef oven or this replacement part, please refer to the documentation provided with your original appliance or contact Turbochef customer support directly.
9. Customer Support
For further assistance, technical support, or to inquire about service, please contact Turbochef customer support. Contact information can typically be found on the Turbochef official website or in your oven's original user manual.
