Donaldson P502069 Engine Oil Filter User Manual

1. Introduction

This manual provides essential information for the proper installation, operation, and maintenance of the Donaldson P502069 Engine Oil Filter. The Donaldson P502069 is a full-flow, spin-on type engine oil filter designed to remove contaminants from engine oil, ensuring optimal engine performance and longevity. Regular maintenance and correct installation are crucial for the effective functioning of this component.

2. Product Overview

The Donaldson P502069 Engine Oil Filter features a spin-on design for ease of installation and removal. It utilizes cellulose media to effectively capture harmful particles, such as dirt, metal shavings, and sludge, from the engine oil. This full-flow filter ensures that all engine oil passes through the filtration media before circulating back into the engine, providing comprehensive protection.

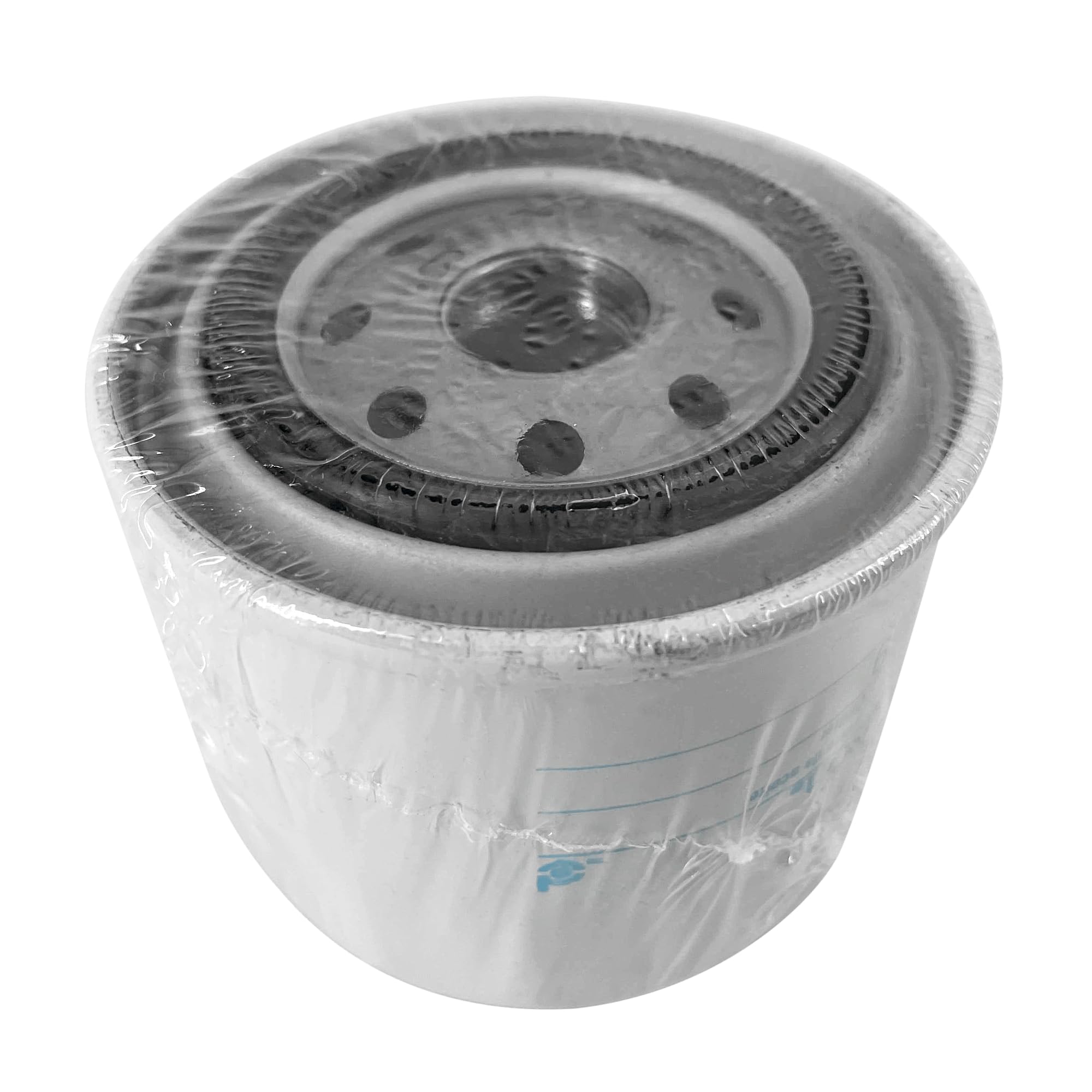

Figure 1: Donaldson P502069 Engine Oil Filter. This image displays the exterior of the spin-on oil filter, typically cylindrical with a threaded base for attachment to the engine block.

3. Installation Instructions

Proper installation is critical for the performance and safety of your engine. Always refer to your vehicle or equipment manufacturer's service manual for specific instructions and torque specifications.

1. Safety First: Ensure the engine is turned off and cool. Wear appropriate personal protective equipment, including gloves and eye protection.
2. Drain Old Oil: Place a suitable drain pan beneath the oil pan and remove the drain plug to allow the old engine oil to drain completely.
3. Remove Old Filter: Use an oil filter wrench to loosen and remove the old oil filter. Be prepared for residual oil to spill. Dispose of the old filter and oil responsibly according to local regulations.
4. Prepare New Filter: Apply a thin film of clean engine oil to the rubber gasket of the new Donaldson P502069 filter. This ensures a proper seal.
5. Install New Filter: Hand-tighten the new filter onto the engine block until the gasket makes contact. Then, tighten an additional 3/4 to 1 full turn, or as specified by your vehicle manufacturer. Do not overtighten.
6. Refill Engine Oil: Replace the oil drain plug and refill the engine with the recommended type and quantity of new engine oil.
7. Check for Leaks: Start the engine and let it run for a few minutes. Check for any oil leaks around the new filter and the drain plug. Turn off the engine and recheck the oil level, adding more if necessary.

4. Operating Considerations

Once installed, the Donaldson P502069 Engine Oil Filter operates continuously to clean the engine oil. No specific user interaction is required during normal operation. The filter's performance is directly linked to the quality and cleanliness of the engine oil. Always use engine oil that meets the specifications recommended by your engine manufacturer.

5. Maintenance

Regular maintenance of your engine oil filter is essential for engine health.

• Replacement Schedule: The engine oil filter should be replaced at every oil change, or according to the intervals specified in your vehicle or equipment service manual. Factors such as operating conditions (e.g., heavy-duty use, dusty environments) may necessitate more frequent changes.
• Disposal: Used oil filters contain residual oil and metal. Dispose of them responsibly at an authorized recycling center or according to local environmental regulations. Do not discard with general waste.

6. Troubleshooting

If you encounter issues after installing the oil filter, consider the following:

• Oil Leaks: The most common issue is an oil leak around the filter. This is often caused by an improperly tightened filter, a damaged or improperly seated gasket, or debris on the sealing surface. Ensure the gasket is clean and lubricated, and the filter is tightened correctly.
• Low Oil Pressure: If low oil pressure occurs immediately after an oil change, verify the oil level is correct. A severely clogged filter (unlikely for a new filter) or an incorrect filter type could also contribute, though rare.
• Incorrect Filter: Always ensure the P502069 is the correct filter for your specific engine application. Using an incorrect filter can lead to poor filtration, improper fit, or engine damage.

If problems persist, consult a qualified mechanic or your engine manufacturer's service department.

7. Specifications

8. Warranty and Support

For specific warranty information regarding the Donaldson P502069 Engine Oil Filter, please refer to the official Donaldson website or contact your authorized Donaldson dealer or the point of purchase. Warranty terms typically cover manufacturing defects under normal use conditions.

For technical support or further inquiries, please visit the official Donaldson website or contact their customer service department. Always provide the model number (P502069) when seeking support.
