Product Overview
The QSC TouchMix-8 compact digital mixer is engineered for musicians, production professionals, and live performance venues requiring the power and capabilities of a large concert mixing console in a compact, affordable, and user-friendly format. This mixer provides the functionality to meet the demands of experienced professionals while offering features and functions that assist less experienced users in achieving high-quality results. The QSC TouchMix Series represents a significant advancement in digital mixer design, redefining the user experience for both professionals and novices.
Key Features
- 12 Full Function Inputs: Includes 4 Mic, 4 Mic/Line (XLR/TRS Combo), 2 Stereo line (TRS), and USB 2-track inputs.
- Outputs: Features 4 Aux (XLR), 1 Stereo (TRS), Main R/L (XLR), and Cue/Monitor (TRS) outputs.
- IEM Support: TRS Aux outs are designed to directly drive wired In Ear Monitors (IEM). The TouchMix personal monitor app requires iOS 8 or higher for remote control.
- Advanced EQ: Equipped with 4-band full parametric EQ on all input channels, along with variable high-pass and low-pass filters.
- Dynamics Processing: Gate and compressor functions are available on all input channels for precise audio control.
Setup Guide
Follow these steps to set up your QSC TouchMix-8 Digital Mixer for optimal performance.
- Unpacking: Carefully remove the mixer and all accessories from the packaging. Inspect for any signs of damage.
- Power Connection: Connect the provided power adapter to the mixer's power input and then to a suitable AC power outlet. Ensure the power switch is in the OFF position before connecting.
- Input Connections: Connect your microphones, instruments, and other audio sources to the appropriate XLR/TRS Combo or TRS line inputs on the mixer.
- Output Connections: Connect the Main R/L XLR outputs to your main PA system or powered speakers. Use the Aux outputs for monitor mixes or external effects.
- USB Connection (Optional): For multi-track recording or playback, connect a USB drive to the designated USB port.
- Initial Power On: Once all connections are secure, switch the mixer ON. The display will illuminate, and the system will initialize.

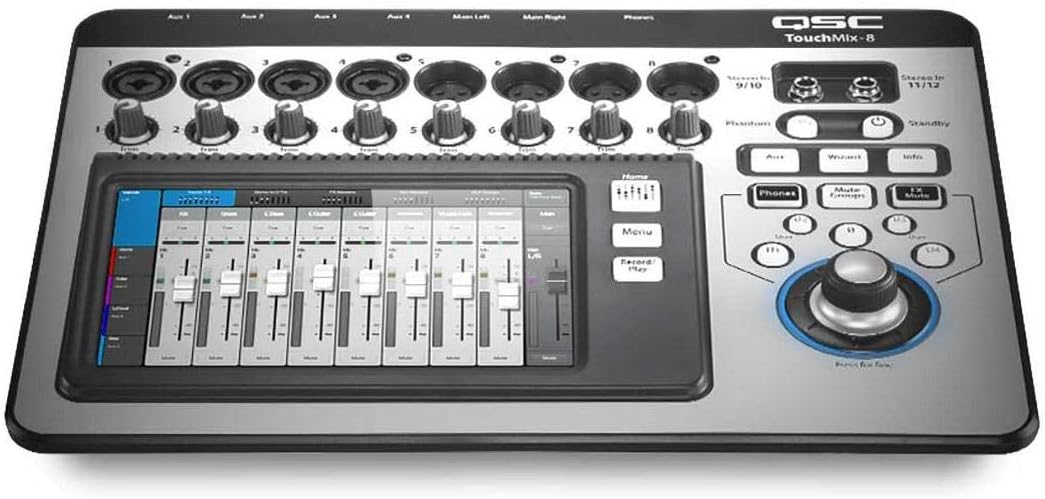

Figure 1: Angled view of the QSC TouchMix-8 Digital Mixer, showing its compact design and primary controls.
Figure 2: Front view of the QSC TouchMix-8, highlighting the touch screen interface and channel faders.

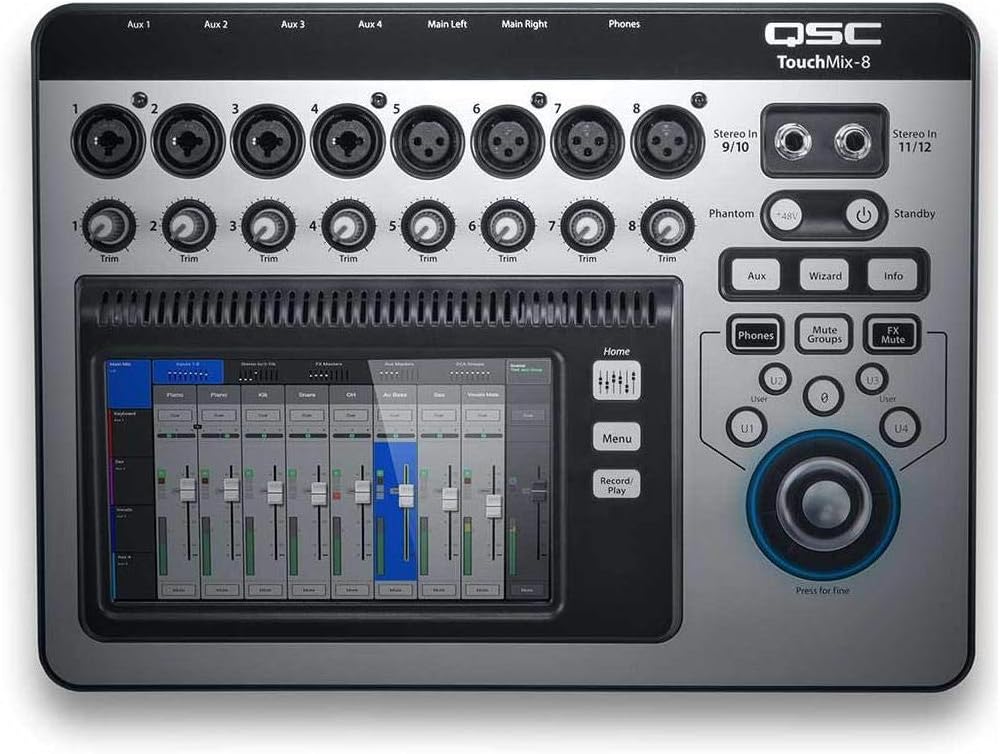

Figure 3: Top-down view of the QSC TouchMix-8, illustrating the various input and output jacks, along with control knobs.
Figure 4: Rear view of the QSC TouchMix-8, showing the USB ports and additional connectivity options.
Operating Instructions
The TouchMix-8 features an intuitive touchscreen interface for controlling all mixer functions. Here are some basic operating guidelines:
- Channel Control: Select a channel on the touchscreen to access its individual settings, including gain, EQ, dynamics (gate and compressor), and auxiliary sends.
- Equalization (EQ): Utilize the 4-band parametric EQ on each input channel to shape the tone of your audio. Adjust frequency, gain, and Q for precise sound sculpting.
- Dynamics: Apply the gate to reduce unwanted noise and the compressor to control dynamic range, ensuring a consistent and polished sound.
- Auxiliary Sends: Use the auxiliary sends to create separate monitor mixes for performers or to send signals to external effects processors.
- Effects: The TouchMix-8 includes built-in effects. Navigate to the effects section on the touchscreen to select and apply reverbs, delays, and other effects to your channels or mixes.
- Recording/Playback: Connect a USB storage device to record your live performance or playback pre-recorded tracks directly through the mixer.
- Remote Control: Download the QSC TouchMix Control app for iOS devices to remotely control the mixer, providing flexibility for sound engineers and musicians on stage.
Maintenance and Care
Proper maintenance ensures the longevity and reliable performance of your TouchMix-8 Digital Mixer.
- Cleaning: Use a soft, dry cloth to clean the exterior of the mixer. For the touchscreen, use a microfiber cloth specifically designed for electronic displays. Avoid abrasive cleaners or solvents.
- Storage: When not in use, store the mixer in a cool, dry place, away from direct sunlight and extreme temperatures. Using a protective bag or case is recommended.
- Ventilation: Ensure that the mixer's ventilation openings are not blocked during operation to prevent overheating.
- Cable Management: Organize cables neatly to prevent tripping hazards and reduce strain on connectors.
- Firmware Updates: Periodically check the QSC website for firmware updates to ensure your mixer has the latest features and bug fixes.
Troubleshooting
If you encounter issues with your TouchMix-8, refer to the following common troubleshooting tips:
| Problem | Possible Cause / Solution |
|---|---|
| No audio output | Check all cable connections (inputs, outputs, power). Ensure master fader and channel faders are up. Verify input sources are active. Check mute groups and individual channel mutes. |
| Touchscreen unresponsive or laggy | Ensure the screen is clean and free of debris. Try restarting the mixer. If using an iOS device for remote control, ensure a stable Wi-Fi connection. Consider updating firmware if available. |
| Distorted audio | Check input gain levels to prevent clipping. Reduce output levels if the PA system is overdriven. Inspect cables for damage. |
| Mixer freezes or crashes | Perform a power cycle (turn off, wait 10 seconds, turn on). Ensure the latest firmware is installed. Avoid extreme temperatures. |
For more detailed troubleshooting, please refer to the official QSC support resources.
Technical Specifications
| Specification | Detail |
|---|---|
| Item Weight | 4.3 pounds (1950 Grams) |
| Product Dimensions | 20 x 5 x 17 inches |
| Model Number | QSC TOUCHMIX8 |
| Hardware Interface | USB |
| Power Source | Corded Electric |
| Voltage | 100 Volts (AC) |
| Number of Channels | 8 |
| First Available Date | April 10, 2014 |
Warranty and Support
QSC products are designed for reliability and performance. For detailed warranty information, please refer to the warranty card included with your product or visit the official QSC website.
For additional support, including the full user manual in PDF format, please visit the following link:
Download Full User Manual (PDF)
You can also visit the QSC Store on Amazon for more product information and accessories.
