1. Introduction
This manual provides essential instructions for the safe and efficient operation, assembly, and maintenance of your Vestil 120x30 Ergonomic Long Deck Cart 2k, model LDLT-30120. Please read this manual thoroughly before using the equipment to ensure proper function and to prevent injury or damage.
2. Safety Information
WARNING: Failure to follow these safety instructions may result in serious injury or death.
- Always inspect the cart for damage or wear before each use. Do not operate if damaged.
- Ensure the load is evenly distributed and secured on the deck. Do not exceed the maximum weight capacity.
- Keep hands and feet clear of moving parts, especially during height adjustment.
- Operate on a level, stable surface. Avoid inclines or uneven terrain.
- Wear appropriate personal protective equipment (PPE) such as safety shoes and gloves.
- Do not modify the cart in any way. Use only genuine Vestil replacement parts.
- Ensure all casters are locked when the cart is stationary and loaded, or when performing maintenance.
3. Package Contents
Upon unpacking, verify that all components are present and undamaged. If any parts are missing or damaged, contact Vestil customer service immediately.
- 120x30 Ergonomic Long Deck Cart 2k (Main Assembly)
- Assembly Hardware (if applicable)
- Instruction Manual (this document)
4. Setup and Assembly
The Vestil LDLT-30120 cart requires assembly. It is recommended that two or more individuals assist with the assembly process due to the size and weight of the components.
- Unpacking: Carefully remove all components from the packaging. Lay them out on a clean, flat surface.
- Caster Installation: Attach the four casters to the designated mounting points on the cart's base frame using the provided hardware. Ensure all bolts are tightened securely. (Note: Two casters are typically swivel with brakes, and two are rigid.)
- Deck Attachment: Secure the long deck to the lift mechanism frame. Follow the specific instructions provided with the hardware kit for proper alignment and fastening.
- Hydraulic System Check: Before first use, inspect all hydraulic lines and connections for leaks. Ensure the hydraulic fluid reservoir is at the appropriate level.
- Functional Test: Once assembled, perform a test of the lift mechanism without a load to ensure smooth operation and proper height adjustment.
Figure 4.1: Side view of the assembled Vestil 120x30 Ergonomic Long Deck Cart 2k, showing the long deck and base frame with casters.
5. Operating Instructions
This ergonomic long deck cart is designed to facilitate the transport and positioning of long, heavy items. Always operate the cart responsibly and within its stated capacities.
- Loading the Cart:
- Ensure the cart is on a level surface and all swivel casters are locked.
- Carefully place the item onto the center of the deck, distributing the weight as evenly as possible.
- Do not exceed the maximum load capacity of 2000 lbs (2k).
- Adjusting Height:
- To raise the deck, operate the foot pedal pump mechanism. Pump steadily until the desired height is reached.
- To lower the deck, slowly engage the release lever. Control the descent to prevent sudden drops.
- The ergonomic design allows for precise height adjustments to minimize bending and lifting.
- Transporting the Cart:
- Unlock the swivel casters.
- Push or pull the cart using the handles or designated push points. Avoid sudden movements or excessive speed.
- When stopping, engage the caster brakes to prevent unintended movement.

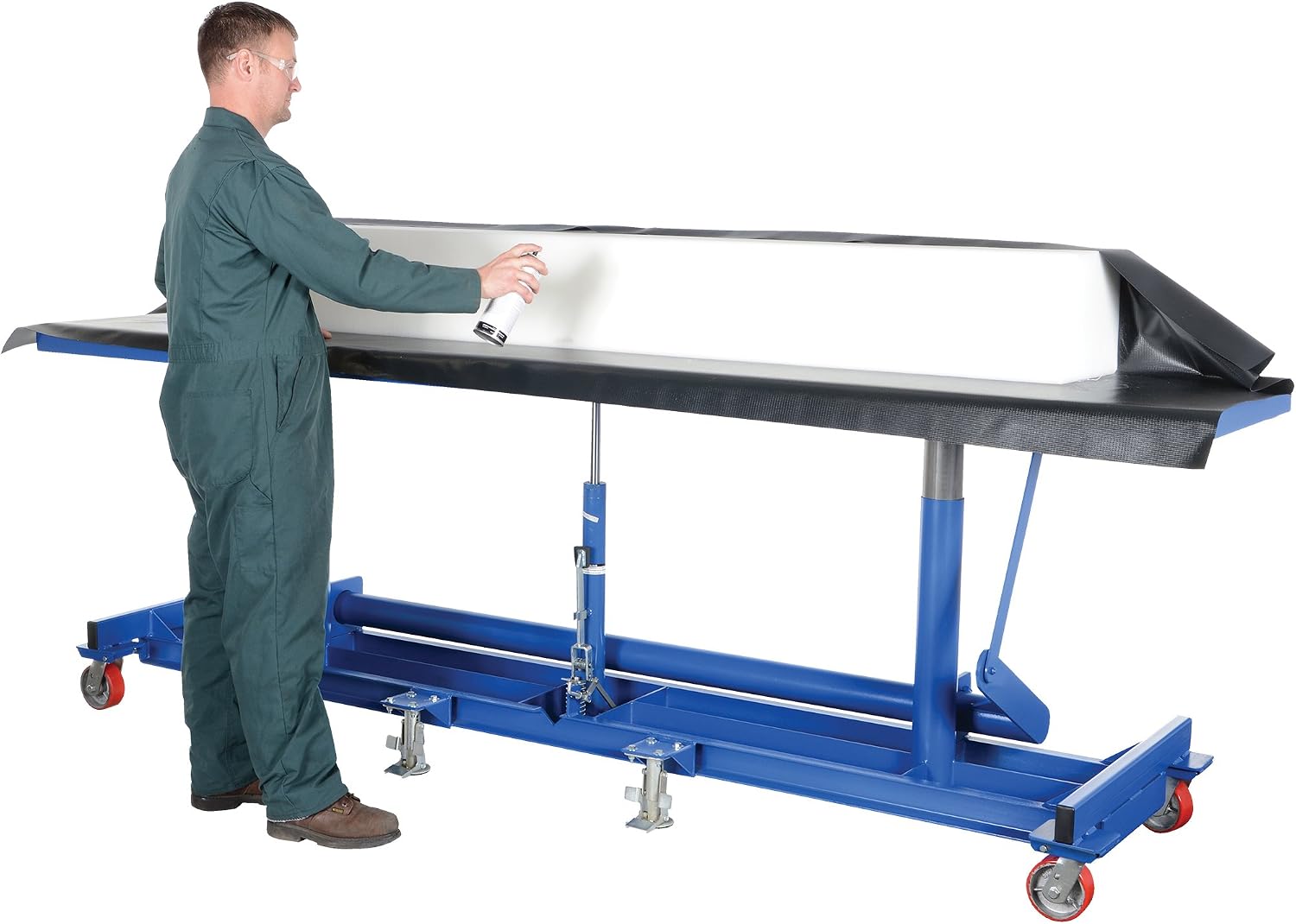

Figure 5.1: An operator demonstrating the ergonomic height adjustment feature of the cart, positioning a long item at a comfortable working level.
Figure 5.2: Front view of the cart, highlighting the robust lift mechanism and the four casters for mobility.
6. Maintenance
Regular maintenance is crucial for the longevity and safe operation of your cart.
- Lubrication: Periodically lubricate all pivot points, axles, and caster bearings with appropriate grease or oil.
- Hydraulic Fluid: Check the hydraulic fluid level monthly. Refill with hydraulic oil (ISO VG 32 or equivalent) if necessary. Bleed air from the system if operation becomes erratic.
- Fasteners: Inspect all bolts, nuts, and other fasteners regularly. Tighten any loose hardware.
- Casters: Check casters for wear, damage, and proper rotation. Replace worn or damaged casters promptly.
- Cleaning: Keep the cart clean and free of debris. Wipe down surfaces with a damp cloth. Avoid harsh chemicals that may damage the finish.

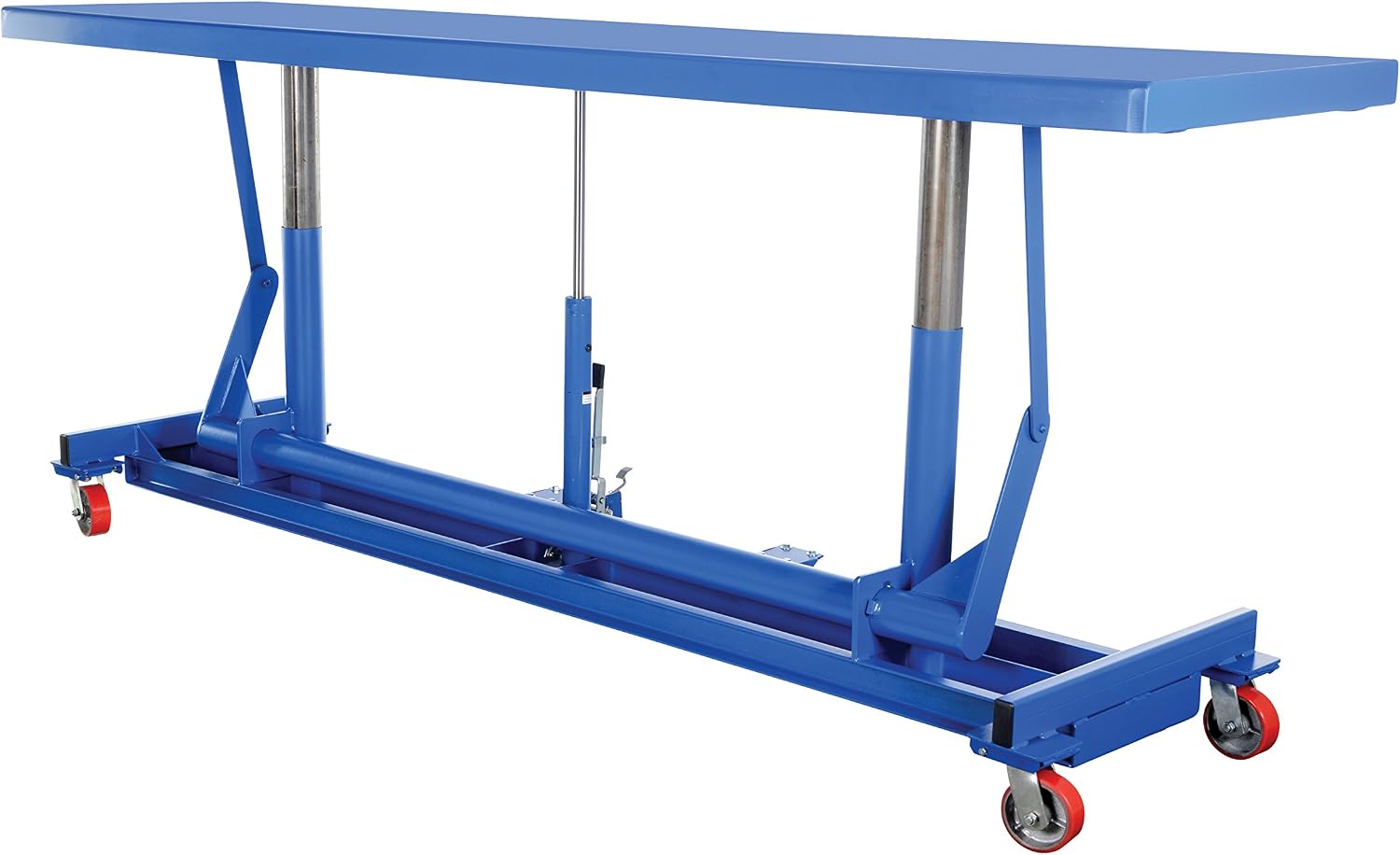

Figure 6.1: Angled view of the cart, illustrating the hydraulic lift cylinders that require regular inspection and maintenance.
7. Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Cart will not lift or lifts slowly. | Low hydraulic fluid level; Air in hydraulic system; Overload; Damaged pump. | Check and refill hydraulic fluid; Bleed air from system; Reduce load; Contact service for pump repair. |
| Cart drifts down when raised. | Leaking hydraulic seal; Release valve not fully closed. | Inspect for leaks and replace seals; Ensure release valve is fully closed. |
| Casters do not roll smoothly. | Debris in bearings; Worn bearings; Damaged casters. | Clean casters; Lubricate bearings; Replace damaged casters. |
8. Specifications
| Feature | Detail |
|---|---|
| Model Number | LDLT-30120 |
| Brand | Vestil |
| Deck Dimensions | 120 inches (length) x 30 inches (width) |
| Weight Capacity | 2000 lbs (2k) |
| Item Weight | 961 Pounds |
| Number of Wheels | 4 |
| Caster Type | Swivel (typically 2 swivel with brake, 2 rigid) |
| Material | Blend (typically steel construction) |
| Required Assembly | Yes |
| UPC | 691215026406 |
9. Warranty and Support
For warranty information, technical support, or to order replacement parts, please contact Vestil Manufacturing Co. directly or refer to their official website. Keep your purchase receipt and model number (LDLT-30120) handy when contacting support.
Note: Specific warranty terms and conditions may vary. Consult the official Vestil warranty statement for complete details.
