Introduction
This user manual provides comprehensive instructions for the installation, operation, maintenance, and troubleshooting of your Geberit IT White Toilet Seat. Designed for modern living, this high-quality Duroplast toilet seat features a soft-close mechanism and durable metal hinges for long-lasting performance.
Product Overview

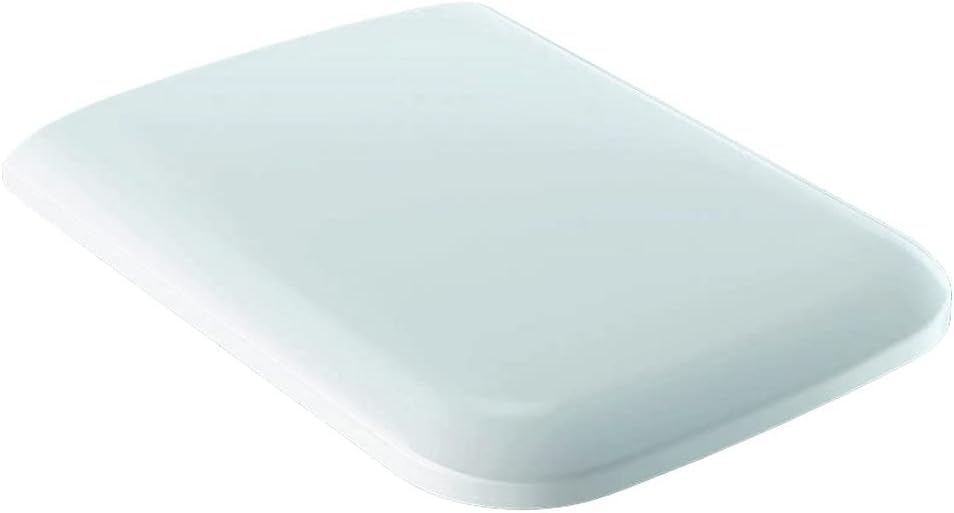

Figure 1: Top view of the Geberit IT White Toilet Seat. This image shows the sleek, rectangular design of the closed toilet seat and lid.
Figure 2: Top-down view of the toilet seat with key dimensions. The width is approximately 36.5 cm and the length is 45 cm, indicating the overall footprint of the seat.
Figure 3: Side view of the toilet seat showing its height. The total height from the base to the top of the closed lid is approximately 4.5 cm.

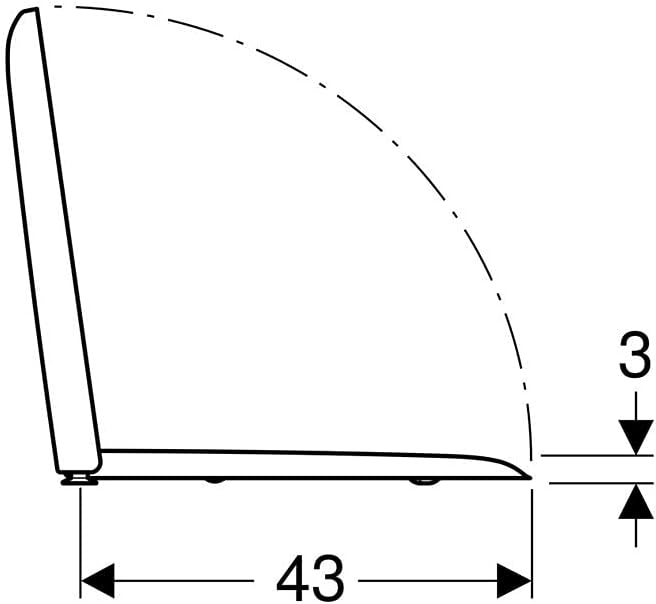

Figure 4: Side view illustrating the maximum opening angle of the toilet seat lid. The lid can open to an angle that allows for full access to the toilet bowl, with a seat length of 43 cm and a small front lip of 3 cm.

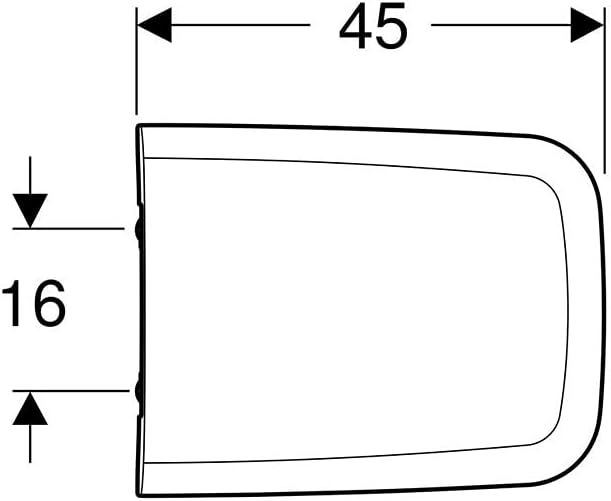

Figure 5: Top view showing the hinge spacing. The distance between the two top-fixing points is 16 cm, and the overall width at the back is 45 cm, crucial for proper installation on the ceramic.
Setup and Installation
The Geberit IT Toilet Seat is designed for top-fixing installation, making it convenient to install and remove for cleaning. Ensure you have all components before beginning.
Components Included:
- Toilet seat with lid
- Metal hinges (chrome-plated brass)
- Fixing hardware for top installation
Installation Steps:
- Prepare the Toilet Bowl: Ensure the toilet bowl's mounting holes are clean and free of debris.
- Insert Fixing Bolts: Place the fixing bolts (part of the hinge assembly) into the mounting holes on the toilet bowl.
- Position the Hinges: Attach the metal hinges to the fixing bolts. The hinges are designed for top-down installation, meaning they are secured from above the toilet bowl.
- Attach the Toilet Seat: Align the toilet seat with the hinge posts and press down firmly until it clicks into place. Ensure the seat is centered and stable.
- Tighten Fixings: From the top, tighten the screws on the hinge assembly to secure the toilet seat firmly to the bowl. Do not overtighten.
- Test Stability: Gently push down on the seat to ensure it is stable and does not wobble. Adjust tightening if necessary.
Note: This toilet seat is designed to be combined with Geberit IT WC models 201900, 201950, and 200920. Refer to Figure 2, Figure 3, and Figure 5 for critical dimensions and hinge spacing to ensure compatibility.
Operating Instructions
The Geberit IT Toilet Seat features a soft-close mechanism for quiet and gentle closing of both the lid and the seat.
Soft-Close Function:
- To close the lid or seat, simply push it down gently. The soft-close mechanism will engage, allowing it to lower slowly and silently without slamming.
- Do not force the lid or seat down, as this can damage the soft-close mechanism.
Maintenance
Proper care and maintenance will ensure the longevity and appearance of your Geberit IT Toilet Seat.
Cleaning:
- Clean the toilet seat regularly with a mild soap solution and a soft cloth.
- Avoid using abrasive cleaners, scouring pads, or strong chemical detergents, as these can damage the Duroplast surface and chrome-plated hinges.
- Rinse thoroughly with clean water and dry with a soft cloth.
- For stubborn stains, a diluted vinegar solution can be used, but always test on an inconspicuous area first.
Hinge Care:
- The chrome-plated brass hinges should be wiped dry after cleaning to prevent water spots and maintain their shine.
- Periodically check the hinge fixings for tightness and re-tighten if necessary, but do not overtighten.
Troubleshooting
This section addresses common issues you might encounter with your toilet seat.
| Problem | Possible Cause | Solution |
|---|---|---|
| Toilet seat wobbles or is loose. | Hinge fixings are loose. | Re-tighten the screws on the hinge assembly from the top. |
| Soft-close mechanism not working properly. | Mechanism is dirty or damaged; forced closing. | Clean the hinge area thoroughly. Avoid forcing the lid/seat down. If still faulty, contact support. |
| Stains on the seat surface. | Improper cleaning agents used; prolonged contact with staining substances. | Clean with mild soap and water. For stubborn stains, try diluted vinegar. Avoid harsh chemicals. |
Specifications
| Feature | Detail |
|---|---|
| Product Name | Geberit IT Toilet Seat |
| Model Number | 571900000 |
| Brand | Keramag (Manufacturer) / Geberit (Product Series) |
| Color | White (Alpine) |
| Material | Duroplast (Seat), Chrome-plated Brass (Hinges) |
| Dimensions (L x W x H) | Approx. 46 x 37 x 4 cm |
| Item Weight | 2.7 kg |
| Hinge Type | Top-fixing, Metal Hinges |
| Special Features | Soft-close mechanism, Overlapping lid |
| Compatibility | Designed for Geberit IT WC models 201900, 201950, 200920 |
| Standard | DIN 19516 |
Warranty and Support
Information regarding specific warranty terms for the Geberit IT Toilet Seat is not provided in the product details. Please refer to the manufacturer's official website or your point of purchase for detailed warranty information.
For technical support or further assistance, please contact the manufacturer, Keramag, or your authorized Geberit dealer. Contact details can typically be found on their official websites.
