Introduction
Welcome to your Elite Platinum EPC-1013 10-Quart Electric Pressure Cooker. This manual provides essential information for the safe operation, maintenance, and optimal use of your appliance. Please read all instructions thoroughly before first use and retain this manual for future reference.
Image: The Elite Platinum EPC-1013 electric pressure cooker, featuring a stainless steel body with black accents, a digital control panel, and included measuring cup and serving spoon.
Important Safety Instructions
When using electrical appliances, basic safety precautions should always be followed to reduce the risk of fire, electric shock, and injury to persons. Read all instructions carefully.
- Do not touch hot surfaces. Use handles or knobs.
- To protect against electric shock, do not immerse cord, plugs, or the main unit in water or other liquid.
- Close supervision is necessary when any appliance is used by or near children.
- Unplug from outlet when not in use and before cleaning. Allow to cool before putting on or taking off parts.
- Do not operate any appliance with a damaged cord or plug, or after the appliance malfunctions or has been damaged in any manner.
- Do not use outdoors.
- Do not let cord hang over edge of table or counter, or touch hot surfaces.
- Do not place on or near a hot gas or electric burner, or in a heated oven.
- Extreme caution must be used when moving an appliance containing hot oil or other hot liquids.
- Always attach plug to appliance first, then plug cord into the wall outlet. To disconnect, turn any control to 'off', then remove plug from wall outlet.
- Do not use appliance for other than intended use.
- This appliance cooks under pressure. Improper use may result in scalding injury. Ensure unit is properly closed before operating.
- Never fill the unit above the MAX fill line.
- Do not open the pressure cooker until the unit has cooled and all internal pressure has been released. If the handles are difficult to push apart, this indicates that the cooker is still pressurized.
- Always check the steam release valve and float valve for clogging before use.
- Use caution when releasing steam from the pressure release valve. Keep hands and face clear of the steam vent.
Product Components
Familiarize yourself with the main parts of your Elite Platinum EPC-1013 pressure cooker:
- Main Unit: The exterior housing containing the heating element and control panel.
- Inner Cooking Pot: Removable nonstick 10-quart pot for cooking.
- Lid: Features a sealing gasket, steam release valve, and float valve.
- Control Panel: Digital display and function buttons for operation.
- Steam Release Valve: Controls the release of pressure.
- Float Valve: Indicates when the cooker is pressurized.
Image: A detailed view of the pressure cooker's lid, showing the steam release valve and the 'OPEN' and 'CLOSE' indicators for securing the lid.
Setup and First Use
Unpacking
Carefully remove all packaging materials and accessories from the box. Ensure all components listed in the 'Product Components' section are present.
Initial Cleaning
Before first use, wash the inner cooking pot, lid, and sealing gasket with warm, soapy water. Rinse thoroughly and dry completely. Wipe the exterior of the main unit with a damp cloth.
Placement
Place the pressure cooker on a stable, level, heat-resistant surface away from walls and cabinets to allow for proper ventilation and steam release.
Operating Instructions
Control Panel Overview
The digital control panel allows you to select various cooking functions and settings.

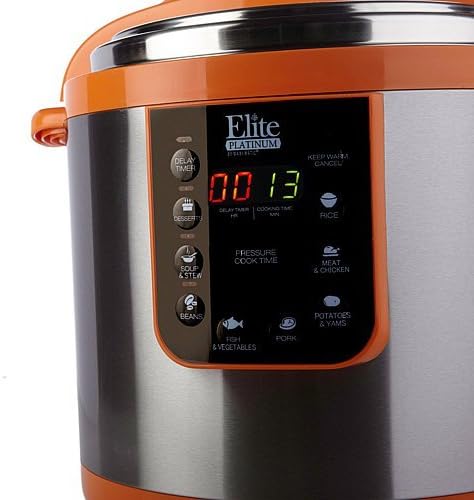

Image: A close-up of the digital control panel, displaying the time '00 13' and various function buttons such as Delay Timer, Dessert, Soup & Stew, Beans, Fish & Vegetables, Pork, Potatoes & Yams, Meat & Chicken, and Rice.
Basic Operation
- Place the inner cooking pot into the main unit.
- Add ingredients and liquid to the inner pot, ensuring not to exceed the MAX fill line.
- Place the lid on the cooker and rotate it clockwise until it locks into place. Ensure the steam release valve is in the 'Sealing' position for pressure cooking.
- Plug the power cord into a grounded electrical outlet. The display will show '0000'.
- Select your desired cooking function from the control panel.
- The cooker will automatically begin the preheating process, then build pressure, and finally start the cooking countdown.
- Once cooking is complete, the unit will beep and automatically switch to the 'Keep Warm' function.
Cooking Functions
The EPC-1013 features 8 pre-set multifunctions for various dishes:
- Rice: For cooking various types of rice.
- Potatoes & Yams: Ideal for tender potatoes and yams.
- Meat & Chicken: Optimized for cooking different cuts of meat and poultry.
- Pork: Specific setting for pork dishes.
- Fish & Vegetables: Gentle cooking for delicate fish and vegetables.
- Beans & Grains: Perfect for legumes and various grains.
- Soup & Stews: For rich and flavorful soups and stews.
- Desserts: Suitable for preparing various desserts.
Delay Timer Function
The 24-hour delay timer allows you to program the cooking process to begin at a later time. After selecting a cooking function, press the 'Delay Timer' button and adjust the desired delay time using the '+' and '-' buttons. The cooker will start automatically after the set delay.
Browning Function
The browning function allows you to sauté or brown ingredients before pressure cooking. This function operates without the lid sealed. Refer to the specific recipe for browning instructions.
Keep Warm Function
After the cooking cycle is complete, the pressure cooker automatically switches to the 'Keep Warm' setting to maintain food temperature until serving. This function can also be manually selected.
Releasing Pressure
There are two methods for releasing pressure:
- Natural Release: Allow the pressure to dissipate naturally. This is recommended for foamy foods or large cuts of meat. The float valve will drop when pressure is fully released.
- Quick Release: Carefully turn the steam release valve to the 'Venting' position. Steam will rapidly escape. Keep hands and face clear of the steam. Once the float valve drops, pressure is released.
Maintenance and Cleaning
Regular cleaning ensures the longevity and proper functioning of your pressure cooker.
Cleaning the Inner Pot
The nonstick inner cooking pot is removable for easy cleaning. Wash with warm, soapy water and a non-abrasive sponge. Rinse thoroughly and dry completely. Do not use harsh chemicals or abrasive cleaners.
Cleaning the Lid and Gasket
Remove the sealing gasket from the lid and wash both the lid and gasket with warm, soapy water. Pay attention to the steam release valve and float valve areas to ensure they are free of food debris. Rinse and dry completely before reassembling.
Cleaning the Exterior
Wipe the exterior of the main unit with a damp cloth. Never immerse the main unit in water or any other liquid.
Troubleshooting
If you encounter issues with your pressure cooker, refer to the table below for common problems and solutions.
| Problem | Possible Cause | Solution |
|---|---|---|
| Unit does not power on. | Power cord not securely plugged in; electrical outlet malfunction; internal fuse issue. | Ensure power cord is fully inserted. Try a different electrical outlet. If problem persists, contact customer support. |
| Steam leaks from around the lid. | Lid not properly closed or sealed; sealing gasket is dirty, damaged, or improperly installed; food debris on rim. | Ensure lid is fully locked. Check sealing gasket for proper placement and cleanliness. Clean the rim of the inner pot and lid. |
| Float valve does not rise. | Insufficient liquid in the pot; steam release valve in 'Venting' position; float valve clogged. | Add more liquid as per recipe. Ensure steam release valve is in 'Sealing' position. Clean float valve. |
| Food is undercooked or overcooked. | Incorrect cooking time or function selected; insufficient liquid; recipe variations. | Adjust cooking time or function. Ensure adequate liquid. Refer to recipes and adjust as needed. |
| Unit stops working during operation. | Overheating; electrical fault. | Unplug the unit and allow it to cool. Check for any blockages. If the issue persists, contact customer support. |
Specifications
- Brand: Elite Platinum
- Model: EPC-1013
- Capacity: 10 Quarts
- Material: Plastic (exterior), Stainless Steel (housing), Nonstick (inner pot)
- Color: Black
- Wattage: 1000 watts
- Voltage: 120V
- Control Method: Touch
- Special Feature: Keep Warm Setting
- Product Dimensions: 14.17 x 14.17 x 15.35 inches
- Item Weight: 16.98 pounds
- Manufacturer: Maxi-Matic
- UPC: 787543886277, 717056122890
Warranty and Customer Support
For warranty information or customer support inquiries, please refer to the warranty card included with your product or contact Maxi-Matic customer service directly. Ensure you have your model number (EPC-1013) and proof of purchase available when contacting support.
