1. Introduction
This manual provides essential information for the safe and efficient installation, operation, and maintenance of the ABB AF16-30-10-14 IEC Contactor. This device is designed for controlling electrical circuits, specifically for motor control and general purpose applications. It features a 3-pole configuration, rated for 600V, with a 250-500 VAC/VDC coil and one normally open (N.O.) auxiliary contact block.
Please read this manual thoroughly before attempting any installation or operation to ensure proper function and to prevent potential hazards.
2. Safety Information
WARNING: Electrical shock hazard. Only qualified personnel should install, operate, or service this equipment.
- Always disconnect power before working on the contactor or associated circuitry.
- Ensure proper grounding of all equipment.
- Use appropriate personal protective equipment (PPE) such as insulated gloves and safety glasses.
- Verify all connections are secure and correctly wired according to local and national electrical codes.
- Do not operate the contactor if it appears damaged.
3. Product Overview
The ABB AF16-30-10-14 is an IEC standard contactor from the AF-Line Series, AF16 Frame. It is designed for reliable switching of power circuits.

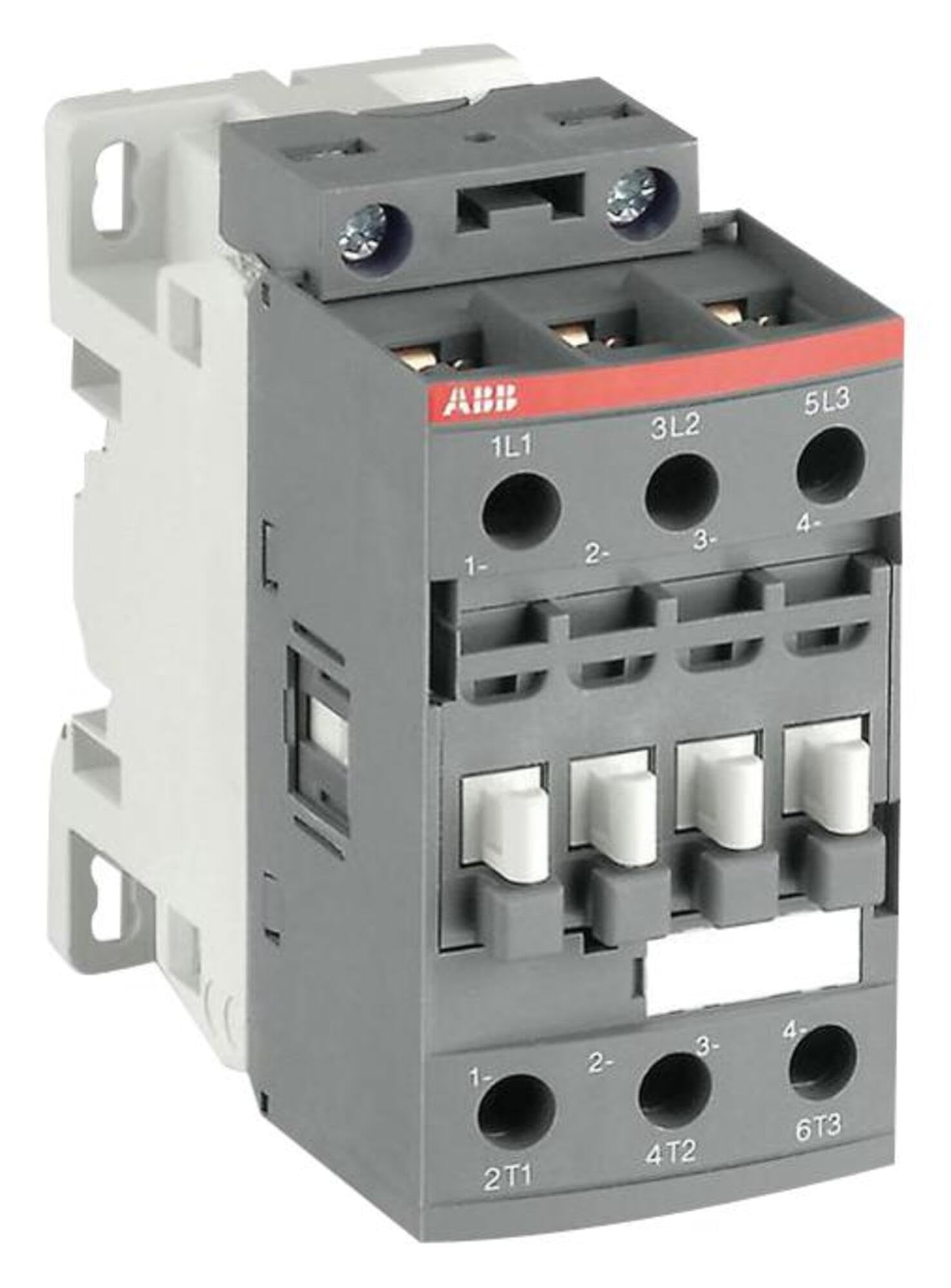

Figure 1: ABB AF16-30-10-14 IEC Contactor. This image displays the front view of the contactor, showing its main terminals and auxiliary contact block.
Key Features:
- Amperage: 17 Motor Current Amp, 30 General Purpose Amp
- Type: Contactor, Non-Reversing, IEC, Lighting Contactor
- Poles: 3-Pole
- Rated Voltage: 600V
- Coil Voltage: 250-500 VAC/VDC
- Auxiliary Contacts: (1) N.O. (Normally Open)
- Control Voltage Options: 24VDC, 28VDC, 48VDC, 50VDC (for specific control applications)
4. Setup and Installation
Proper installation is critical for the safe and reliable operation of the contactor. Follow these steps carefully:
- Mounting: Mount the contactor vertically on a DIN rail or using screws on a panel. Ensure adequate clearance for ventilation and wiring.
- Power Wiring: Connect the main power circuit conductors to the power terminals (L1, L2, L3 for input; T1, T2, T3 for output). Ensure correct phase sequence if applicable. Tighten terminals to the specified torque.
- Control Wiring: Connect the control circuit conductors to the coil terminals (A1, A2). Ensure the coil voltage matches the supply (250-500 VAC/VDC).
- Auxiliary Contacts: If using the auxiliary contact, connect the control circuit to the N.O. (Normally Open) terminals.
- Grounding: Ensure the contactor and associated equipment are properly grounded according to local electrical codes.
- Verification: Double-check all wiring connections for correctness and tightness before applying power.
Refer to the wiring diagram provided with the product packaging for detailed connection schematics.
5. Operating Instructions
The AF16-30-10-14 contactor operates by energizing its coil, which closes the main power contacts, allowing current to flow to the load.
- Energizing the Coil: Apply the specified control voltage (250-500 VAC/VDC) to the coil terminals (A1 and A2). The contactor will audibly click, and the main contacts will close.
- De-energizing the Coil: Remove the control voltage from the coil terminals. The contactor will open its main contacts, interrupting power to the load.
- Auxiliary Contact Operation: The N.O. auxiliary contact will close when the main coil is energized and open when the coil is de-energized. This can be used for signaling or interlocking circuits.
Ensure the load current does not exceed the contactor's rated capacity (17A motor current, 30A general purpose current).
6. Maintenance
Regular maintenance helps ensure the longevity and reliable performance of your ABB contactor.
- Periodic Inspection: Visually inspect the contactor periodically for signs of wear, damage, or overheating (discoloration).
- Terminal Tightness: Check all terminal connections for tightness, especially after initial installation and during routine maintenance. Loose connections can cause overheating and arcing.
- Cleaning: Keep the contactor free from dust, dirt, and moisture. Use a dry, lint-free cloth for cleaning. Do not use solvents.
- Contact Wear: While contacts are designed for long life, excessive arcing or frequent operation under heavy loads can cause wear. If contacts show significant pitting or erosion, replacement of the contactor may be necessary.
Always disconnect power before performing any maintenance.
7. Troubleshooting
This section provides solutions to common issues you might encounter with the AF16-30-10-14 contactor.
| Problem | Possible Cause | Solution |
|---|---|---|
| Contactor does not energize (no click) |
|
|
| Contactor energizes but main contacts do not close |
|
|
| Contactor hums excessively or overheats |
|
|
If the problem persists after attempting these solutions, contact qualified technical support.
8. Specifications
| Parameter | Value |
|---|---|
| Manufacturer | ABB |
| Part Number | AF16-30-10-14 |
| Item Model Number | AF16-30-10-14 |
| Motor Current Amp | 17 A |
| General Purpose Amp | 30 A |
| Poles | 3-Pole |
| Rated Voltage | 600V |
| Coil Voltage | 250-500 VAC/VDC |
| Auxiliary Contacts | (1) N.O. (Normally Open) |
| Control Voltage Options | 24VDC, 28VDC, 48VDC, 50VDC |
| Certification | IEC |
| Material | Copper |
| Item Weight | 10.9 ounces |
| Product Dimensions | 10 x 2 x 2.7 inches |
9. Warranty and Support
For warranty information and technical support, please refer to the documentation included with your product or visit the official ABB website. Keep your purchase receipt for warranty claims.
ABB Official Website: www.abb.com
