Introduction
This manual provides essential information for the safe and efficient use of your Liebherr Refrigerator/Freezer Drawer, Model B00JPGWAR6-TR. This drawer is designed as a replacement or accessory part for compatible Liebherr refrigeration appliances. Please read these instructions carefully before installation and use to ensure proper function and longevity of the product.
Safety Information
- Always disconnect power to the appliance before attempting to install, remove, or clean any internal parts.
- Handle the drawer with care to avoid damage to the product or potential personal injury.
- Ensure the drawer is correctly seated on its runners to prevent items from falling or the drawer from dislodging during use.
- Do not overload the drawer beyond its capacity, as this may impede its function or cause damage.
Setup and Installation
This drawer is intended for use as a direct replacement or additional storage in compatible Liebherr refrigerator or freezer models. Follow these steps for proper installation:
- Preparation: Ensure the appliance is unplugged from the power supply and empty of any contents that might obstruct the installation area.
- Remove Old Drawer (if applicable): If replacing an existing drawer, gently pull the old drawer forward until it reaches its stop. Lift the front edge slightly and pull it out completely from the internal runners or guides.
- Insert New Drawer: Align the new Liebherr Refrigerator/Freezer Drawer (Model B00JPGWAR6-TR) with the designated runners or guides inside the appliance compartment.
- Slide into Place: Carefully push the drawer along the runners until it is fully seated and slides smoothly. Do not force the drawer; if it resists, re-check alignment.

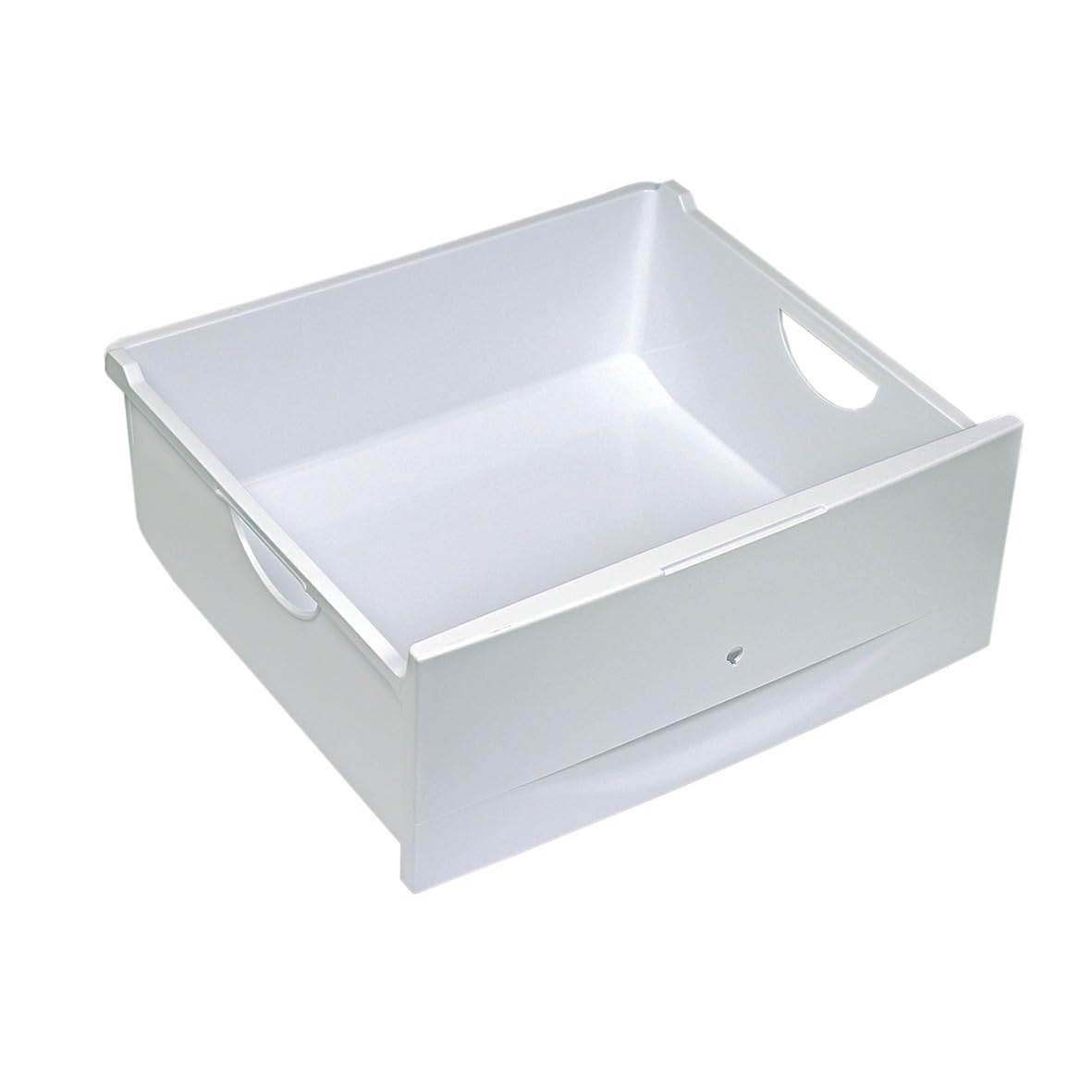

Image: Liebherr Refrigerator/Freezer Drawer, Model B00JPGWAR6-TR. This image illustrates the complete drawer unit, showing its design and form for proper identification and installation within a compatible appliance.
Operating Instructions
- Opening and Closing: Use the integrated handles or cut-outs on the drawer to smoothly pull it open and push it closed. Avoid slamming the drawer to prevent wear and tear.
- Loading: Distribute items evenly within the drawer. Do not overload to ensure smooth operation, proper air circulation within the appliance, and to prevent damage to the drawer or its contents.
- Temperature: The drawer's internal temperature will correspond to the overall temperature settings of your Liebherr refrigerator or freezer.
Maintenance and Cleaning
Regular cleaning and proper maintenance will extend the life of your drawer and ensure hygienic storage.
- Regular Cleaning: Remove the drawer from the appliance. Clean it regularly with a mild detergent and warm water.
- Rinsing: Rinse the drawer thoroughly with clean water to remove all soap residue.
- Drying: Dry the drawer completely with a soft, clean cloth before placing it back into the appliance. Ensure no moisture remains to prevent ice buildup or odors.
- Avoid Harsh Cleaners: Do not use abrasive cleaners, scouring pads, solvents, or strong chemical agents, as these can damage the plastic surface and finish of the drawer.
Troubleshooting
If you encounter issues with your drawer, consider the following common solutions:
- Drawer not sliding smoothly:
- Check for any food items or debris obstructing the runners or lodged beneath the drawer.
- Ensure the drawer is correctly aligned on its runners. Remove and re-insert if necessary.
- Clean the runners and the drawer thoroughly to remove any sticky residue or dirt.
- Drawer not closing completely:
- Verify that no items inside the drawer are protruding and blocking its path.
- Check for proper alignment on the runners, as a misaligned drawer may not close fully.
- Ensure the appliance door gasket is not interfering with the drawer's closure.
Specifications
| Feature | Detail |
|---|---|
| Brand | Liebherr |
| Model Number | B00JPGWAR6-TR |
| Dimensions (L x W x H) | 41.2 x 45.29 x 18.49 cm |
| Weight | 1.08 kg (2.38 lbs) |
| Material | Plastic |
| Compatibility | Designed for specific Liebherr refrigerator/freezer models |
Note: Specifications are approximate and may vary slightly.
Warranty and Support
For detailed warranty information and customer support regarding your Liebherr appliance and its parts, please refer to the documentation provided with your original Liebherr appliance purchase. You may also visit the official Liebherr website for service contacts and support resources. Keep your purchase receipt as proof of purchase for any warranty claims.
