John Deere GY21749 Positive Battery Cable Instruction Manual

1. Product Overview

The John Deere GY21749 is an original equipment positive battery cable designed for various John Deere lawn and garden tractor models. This cable is a direct replacement for part number GY21301 and ensures proper electrical connection for your equipment's battery system.

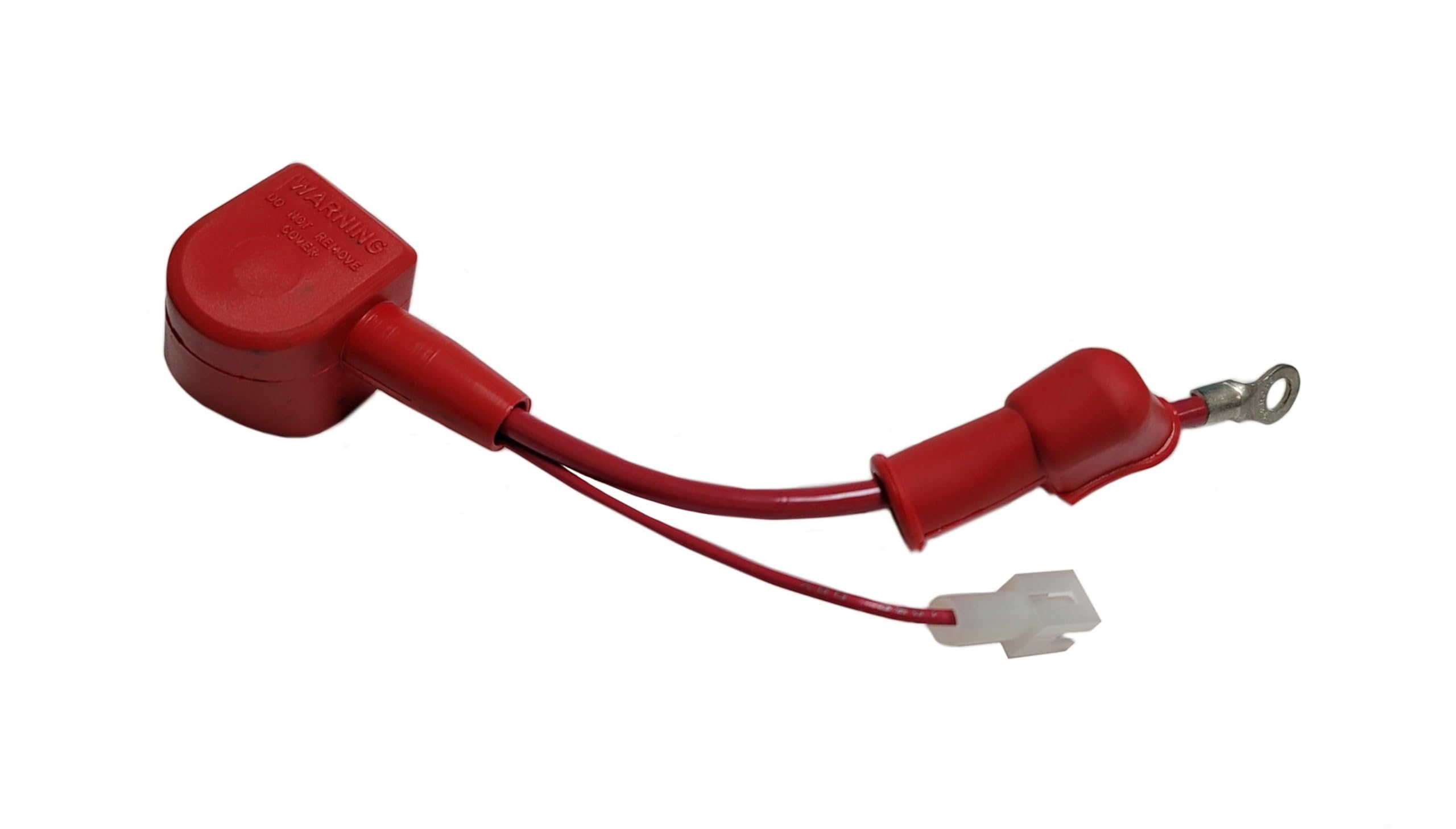

Figure 1: John Deere GY21749 Positive Battery Cable. This image shows the red positive battery cable with its protective boot, a smaller red wire branching off, and the terminal connectors at each end.

Key Features:

• OEM Part: Genuine John Deere original equipment part, ensuring compatibility and quality.
• Replacement: Replaces John Deere part number GY21301.
• Color: Red, indicating positive polarity.
• Construction: Designed for durability and reliable electrical conductivity.

2. Compatibility

This positive battery cable (GY21749) is compatible with a wide range of John Deere 100 Series lawn and garden tractors. Always refer to your equipment's original owner's manual to verify compatibility before installation.

Compatible John Deere Models:

• 107H, 107S, 92H
• D100, D105, D110, D120, D125, D130, D140, D150, D160, D170
• E100, E110, E120, E130, E140, E150, E160, E170, E180
• S100, S110, S120, S130, S140, S160, S170, S180, S240
• X105, X106, X107, X115R, X116R, X117R
• X125, X126, X127, X135R, X145, X146R, X147R
• X155R, X165, X166, X166R, X167, X167R

3. Installation Instructions

Safety First: Before beginning any work on your equipment, ensure the engine is off, the parking brake is engaged, and the ignition key is removed. Wear appropriate personal protective equipment, including safety glasses and gloves. Disconnect the negative battery cable first to prevent accidental short circuits.

Steps for Replacing the Positive Battery Cable:

1. Prepare the Equipment: Park the equipment on a level surface. Turn off the engine and remove the ignition key. Engage the parking brake.
2. Locate the Battery: Access the battery compartment of your John Deere equipment.
3. Disconnect Negative Cable: Using an appropriate wrench, loosen the nut on the negative (-) battery terminal. Remove the negative cable and secure it away from the battery to prevent accidental contact.
4. Disconnect Old Positive Cable: Loosen the nut on the positive (+) battery terminal. Carefully remove the old positive battery cable from the terminal. Note its routing and any auxiliary connections.
5. Remove Old Cable: Detach the other end of the old positive cable from its connection point on the starter solenoid or other component.
6. Install New Positive Cable: Connect the new GY21749 positive battery cable to the starter solenoid or corresponding component. Ensure the connection is secure.
7. Connect to Battery: Attach the positive (+) terminal end of the new cable to the positive (+) post on the battery. Tighten the nut securely, but do not overtighten.
8. Connect Negative Cable: Reconnect the negative (-) battery cable to the negative (-) post on the battery. Tighten the nut securely.
9. Verify Connections: Double-check all connections to ensure they are tight and free from corrosion.
10. Test Equipment: Attempt to start the equipment to confirm proper installation.

If you are unsure about any step, consult your equipment's service manual or a qualified technician.

4. Operation and Function

The John Deere GY21749 positive battery cable serves as a critical component in your equipment's electrical system. Its primary function is to transmit electrical current from the positive terminal of the battery to the starter solenoid and other electrical components, enabling the engine to start and the electrical system to function correctly.

Proper connection ensures efficient power delivery and prevents electrical issues. The cable's red color signifies its positive polarity, which is crucial for correct installation and preventing damage to the electrical system.

5. Maintenance

Regular inspection and maintenance of your battery cables can extend their lifespan and ensure reliable operation of your John Deere equipment.

Recommended Maintenance Practices:

• Visual Inspection: Periodically inspect the entire length of the cable for signs of wear, cracks, fraying, or damage to the insulation. Check the terminals for corrosion, looseness, or damage.
• Corrosion Cleaning: If corrosion (a white or bluish powdery substance) is present on the battery terminals or cable ends, disconnect the battery (negative first, then positive) and clean the terminals using a wire brush and a mixture of baking soda and water. Rinse with clean water and dry thoroughly before reconnecting.
• Terminal Tightness: Ensure that the cable connections to both the battery terminals and the starter solenoid (or other connection points) are tight and secure. Loose connections can cause poor starting and electrical issues.
• Protective Coatings: After cleaning and securing, consider applying a thin layer of dielectric grease or anti-corrosion spray to the battery terminals to help prevent future corrosion.

6. Troubleshooting Common Issues

If you experience electrical issues after installing or while using your equipment, consider the following troubleshooting steps related to the battery cable:

• Engine Does Not Crank or Cranks Slowly:
  • Check if the positive battery cable connections are tight at both the battery and the starter solenoid.
  • Inspect the cable for internal breaks or severe corrosion that might impede current flow.
  • Ensure the battery itself is fully charged and in good condition.
• Intermittent Electrical Problems:
  • Loose or corroded connections can cause intermittent power loss. Re-check and clean all connections.
  • Inspect the cable insulation for any damage that could lead to short circuits.
• Cable Overheating:
  • An undersized or damaged cable, or a poor connection, can cause resistance and lead to overheating. Replace the cable if it shows signs of damage or if connections cannot be secured.

If troubleshooting does not resolve the issue, consult a certified John Deere service technician.

7. Product Specifications

8. Warranty and Support

As an Original Equipment Manufacturer (OEM) part, the John Deere GY21749 battery cable is manufactured to John Deere's quality standards. For specific warranty information, please refer to the warranty documentation provided with your John Deere equipment or contact an authorized John Deere dealer.

For technical support, parts inquiries, or service assistance, please contact your local authorized John Deere dealer or visit the official John Deere website.

Important: Always use genuine John Deere parts to ensure proper fit, performance, and to maintain your equipment's warranty.
