Viking Class 2 Chainsaw Boots: Instruction Manual

1. Introduction and Overview

This manual provides essential information for the safe and effective use, care, and maintenance of your Viking Class 2 Ultra Flexible Chainsaw Boots, Model VW64. These boots are designed to offer protective footwear for individuals working with chainsaws, featuring specific safety standards to minimize risk.

It is crucial to read and understand all instructions before using the boots to ensure proper protection and longevity of the product.

2. Safety Information

Your safety is paramount. These boots are engineered with protective features, but they do not eliminate all risks associated with chainsaw operation. Always follow general chainsaw safety guidelines and wear appropriate personal protective equipment (PPE).

2.1 Certifications and Protection Levels

• Chainsaw Protection: Certified ASTM F1818 Mid Class rating at 24m/sec, EN ISO 17249:2013. This indicates the boots provide protection against chainsaw cuts at a chain speed of up to 24 meters per second.
• Steel Toe: ASTM F2413-11 Grade 1 rated for impact and compression resistance, protecting against falling objects and compression hazards.

2.2 General Safety Precautions

• Always inspect boots for damage before each use. Do not use damaged boots.
• Ensure laces are securely tied to prevent tripping hazards and maintain a snug fit.
• These boots are designed for chainsaw protection but are not impenetrable. Exercise extreme caution when operating chainsaws.
• Be aware of your surroundings and maintain stable footing, especially on uneven or slippery terrain.

3. Product Features

The Viking Class 2 Chainsaw Boots are designed with several features to enhance safety and comfort:

• Chainsaw Protective Material: Integrated layers designed to resist chainsaw cuts.
• Chemical Resistant Upper: Constructed from heavy-duty SBR blended natural rubber with an interior cotton canvas lining for durability.
• Deep NBR Lug Soles: Engineered for traction on water and ice, offering high abrasion, oil, chemical, and slip resistance. Compatible with ice studs.
• Steel Toe: ASTM F2413-11 Grade 1 rated for impact and compression protection.
• Achilles Tendon and Ankle Protection: Built-in design to protect feet from motion injury and fatigue.
• Hi-Vis Reflective Safety Collar: Enhances visibility in low-light conditions.
• Durable Rubber Laces: For a secure and adjustable fit.

Figure 1: Side view of the Viking Class 2 Chainsaw Boot, showcasing its overall design and high-visibility orange color.

Figure 2: View of the boot from the side, with the sole partially visible, highlighting the robust construction.

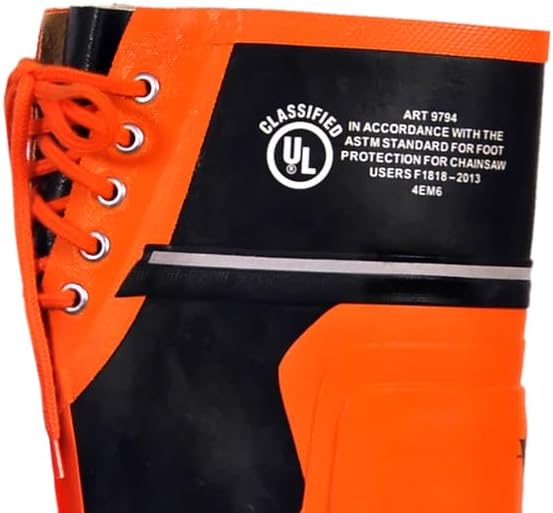

Figure 3: Close-up of the boot's upper section, showing the UL classification and ASTM F1818 certification details.

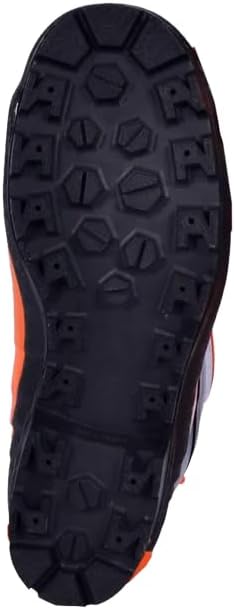

Figure 4: View of the deep NBR lug sole, designed for superior traction and resistance.

4. Usage Instructions

4.1 Setup and Fitting

1. Sizing: It is recommended to try on the boots with the type of socks you typically wear for work. Some users find these boots run slightly large, allowing for thicker socks or insoles. Ensure a comfortable but secure fit that does not restrict circulation or cause excessive rubbing.
2. Donning the Boots: Slide your foot into the boot. If necessary, use the laces on the reflective collar to adjust the fit around the calf.
3. Lacing: Securely tie the rubber laces. The laces help to ensure a snug fit around the upper calf, preventing debris entry and providing additional support.

4.2 Operating Environment

These boots are suitable for various outdoor and industrial environments where chainsaw operation is performed. The slip-resistant soles are designed for performance on wet, icy, and uneven surfaces. Always be mindful of specific environmental hazards.

5. Care and Maintenance

Proper care will extend the life and effectiveness of your Viking Chainsaw Boots.

• Cleaning: After each use, clean the boots with water and a mild soap to remove dirt, sap, and chemicals. Rinse thoroughly and allow to air dry completely at room temperature, away from direct heat sources or sunlight.
• Inspection: Regularly inspect the boots for any signs of damage, such as cuts, punctures, cracks in the rubber, or wear on the soles. Pay close attention to the chainsaw protective layers and the steel toe area.
• Storage: Store boots in a cool, dry place away from direct sunlight and extreme temperatures. Do not store heavy objects on top of the boots.
• Chemical Exposure: While the boots are chemical resistant, prolonged exposure to harsh chemicals should be avoided. Clean immediately after contact.

6. Troubleshooting

This section addresses common concerns regarding the Viking Class 2 Chainsaw Boots.

• Fit Issues: If boots feel too loose, consider wearing thicker socks or adding an insole for a more secure fit. If too tight, ensure you have selected the correct size. Note that calf tightness has been reported by some users; ensure the boot fits comfortably around your calf without excessive restriction.
• Reduced Traction: If the soles show significant wear, their slip-resistant properties may be reduced. Consider replacing the boots if traction becomes compromised. Ensure soles are clean of mud or debris before use.
• Water Penetration: While designed to be waterproof, inspect for any punctures or tears in the rubber that could compromise water resistance. Ensure the top opening is not allowing water entry during use.

7. Specifications

8. Warranty and Support

For information regarding product warranty, returns, or technical support, please refer to the official Viking website or contact your retailer. Keep your proof of purchase for any warranty claims.

For further assistance, you may visit the Viking Store on Amazon.
