Puig 6280A Blue Aluminum Short Bar End User Manual
Model: 6280A
1. Introduction
This manual provides essential information for the proper installation, use, and maintenance of your Puig 6280A Blue Aluminum Short Bar Ends. These bar ends are designed to provide a precise fit for compatible motorcycle handlebars, enhancing both aesthetics and protection.

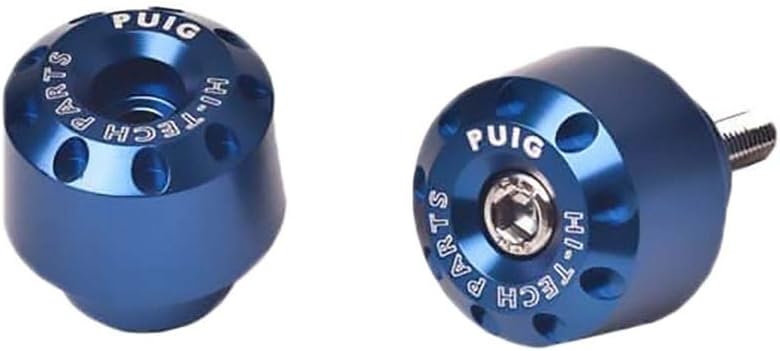

Image 1.1: A pair of Puig 6280A Blue Aluminum Short Bar Ends. The bar ends are cylindrical with a slightly tapered end, featuring the "PUIG HI-TECH PARTS" engraving and a central hex bolt for attachment. They are a vibrant blue color.
2. Safety Information
Always ensure your safety and the proper functioning of your motorcycle. Read and understand all instructions before installation. If you are unsure about any step, consult a qualified mechanic.
- Ensure the motorcycle is stable and turned off before beginning installation.
- Use appropriate tools to avoid damaging the product or your motorcycle.
- Do not overtighten fasteners, as this can strip threads or damage components.
- Regularly check the tightness of the bar ends to ensure they remain securely fastened.
3. Package Contents
Your Puig 6280A Blue Aluminum Short Bar Ends package should contain the following items:
- Two (2) Puig 6280A Blue Aluminum Short Bar Ends
- Necessary mounting hardware (e.g., bolts, expanders) - (Note: Specific hardware may vary slightly by application. Refer to the product packaging for exact contents.)
4. Installation Guide
Follow these steps for the correct installation of your Puig bar ends:
- Prepare the Handlebar: If existing bar ends are present, carefully remove them using the appropriate tools. Clean the inside of the handlebar tube to ensure a clear and secure fit.
- Insert the Bar End: Insert the expander mechanism of the Puig bar end into the open end of the handlebar.
- Tighten the Fastener: Using an appropriate hex key (Allen wrench), slowly tighten the central bolt of the bar end. As you tighten, the expander mechanism inside the handlebar will expand, securing the bar end firmly in place.
- Check Security: Once tightened, gently attempt to rotate or pull the bar end to ensure it is securely fastened and does not move. Repeat the process for the other side.
- Final Inspection: Before riding, double-check both bar ends for tightness and proper alignment.
Important: Ensure the bar ends do not interfere with the throttle operation or any other controls.
5. Function and Use
Puig bar ends serve multiple functions on a motorcycle. Primarily, they provide a finished look to the handlebars and can help reduce handlebar vibrations. In the event of a low-speed tip-over or fall, they can offer a degree of protection to the handlebars and levers, potentially minimizing damage.
6. Maintenance
To ensure the longevity and appearance of your Puig bar ends:
- Cleaning: Clean the bar ends regularly with a soft cloth and mild soap and water. Avoid abrasive cleaners or solvents that could damage the finish.
- Inspection: Periodically inspect the bar ends for any signs of looseness, damage, or wear.
- Tightness Check: Re-check the tightness of the mounting bolts periodically, especially after long rides or off-road use, to ensure they remain secure.
7. Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Bar end is loose or rotates | Mounting bolt not tightened sufficiently; expander not fully engaged. | Tighten the central hex bolt until the bar end is secure. Ensure the expander mechanism is correctly positioned inside the handlebar. |
| Difficulty inserting bar end | Handlebar interior is dirty or has obstructions; expander mechanism is too wide. | Clean the inside of the handlebar. Loosen the central bolt slightly to retract the expander before insertion. |
| Scratches or dull finish | Abrasive cleaning agents; impact damage. | Use only mild soap and water for cleaning. Minor scratches may be polished with appropriate aluminum polish (test in an inconspicuous area first). |
8. Specifications
| Attribute | Detail |
|---|---|
| Model | Puig 6280A |
| Material | Billet Aluminum |
| Color | Blue |
| Item Weight | ~6.5 ounces (for the pair) |
| Product Dimensions | ~7 x 6 x 3 inches (packaging dimensions) |
| Country of Origin | Spain |
| Manufacturer Part Number | 6280A |
9. Warranty and Support
For warranty information or technical support regarding your Puig 6280A Blue Aluminum Short Bar Ends, please refer to the official Puig website or contact your authorized Puig dealer. Keep your proof of purchase for any warranty claims.
Puig Official Website: www.puig.tv
