1. Product Overview
The Defiant 10 Outlet Metal Surge Protector, model YLPT-46, is designed to provide power and surge protection for electrical tools and devices in demanding environments such as workshops or garages. Its robust metal construction ensures resistance to impact damage. This unit features a durable 15-foot (4.6 meter) power cord to accommodate devices with shorter cables, offering flexibility in placement.
Key Features:
- 10 Outlets: Provides ample power connections for multiple devices.
- 4 Power Blocks: Designed to accommodate larger power adapters without blocking adjacent outlets.
- 1500 Joules Surge Protection: Protects connected equipment from power surges, spikes, and AC contamination.
- Durable Metal Construction: Resistant to impact, suitable for rugged environments.
- 15-foot (4.6m) Heavy-Duty Cord: Offers extended reach and flexibility.
- $50,000 Connected Equipment Warranty: Provides assurance for connected devices (refer to warranty section for details).

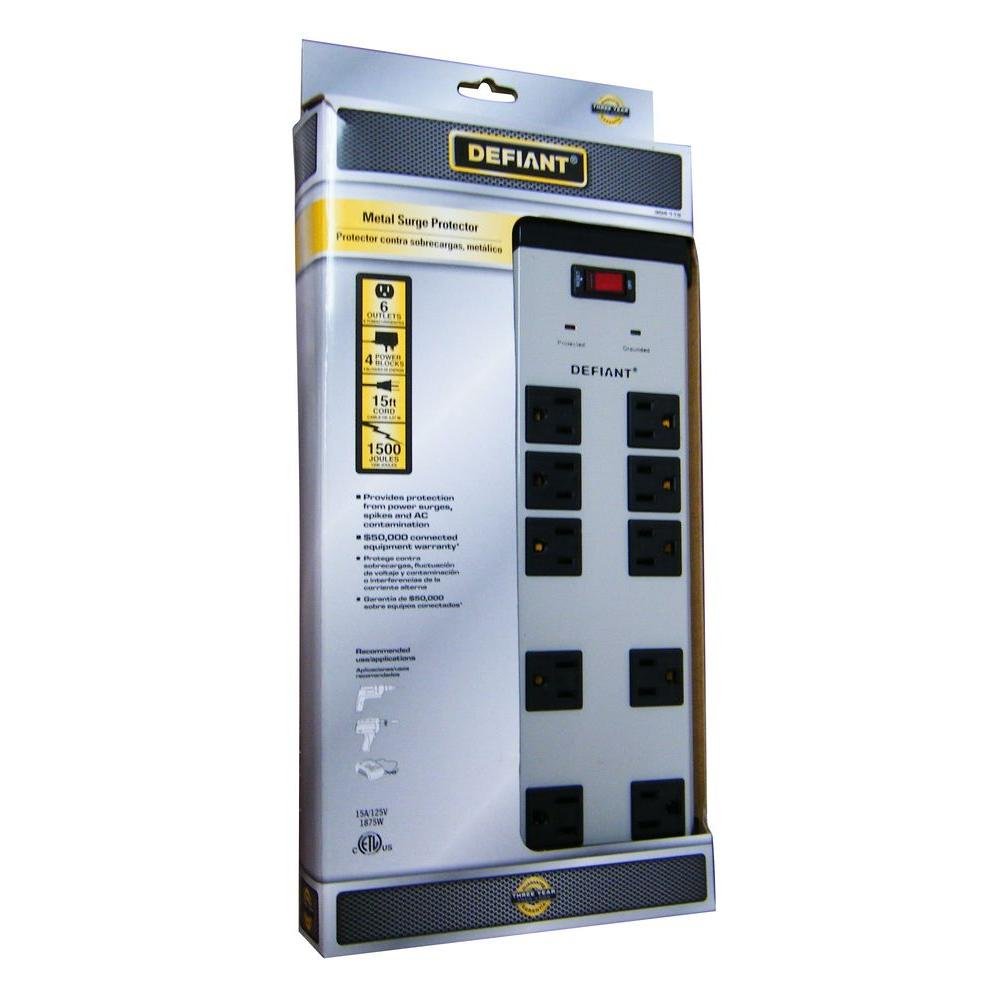

Image 1.1: The Defiant 10 Outlet Metal Surge Protector shown in its retail packaging. The packaging highlights key features such as 10 outlets, 4 power blocks, a 15-foot cord, and 1500 Joules of surge protection. The device itself is a gray metal power strip with black outlets and a red power switch, indicating its robust design for workshop or garage environments.
2. Safety Information
Please read and understand all safety instructions before using this product. Failure to follow these instructions may result in electric shock, fire, or serious injury.
- Indoor Use Only: This surge protector is designed for indoor use in dry locations. Do not expose to moisture or wet conditions.
- Electrical Rating: Do not exceed the electrical rating of 15A/125V/1875W. Overloading the surge protector can cause overheating and fire.
- Grounding: Ensure the wall outlet is properly grounded. This surge protector must be plugged into a grounded 3-prong outlet.
- Avoid Daisy-Chaining: Do not plug one surge protector into another.
- Extension Cords: Do not use this surge protector with extension cords unless absolutely necessary, and ensure the extension cord is rated for the load.
- Children and Pets: Keep out of reach of children and pets.
- Inspection: Periodically inspect the surge protector and its cord for damage. Discontinue use if damaged.
- Medical Equipment: Not intended for use with life support systems or other medical equipment where failure could cause injury or death.
3. Setup
Follow these steps to set up your Defiant 10 Outlet Metal Surge Protector:
- Unpack: Carefully remove the surge protector from its packaging.
- Placement: Choose a dry, indoor location for the surge protector, away from sources of water or excessive heat. Ensure there is adequate ventilation around the unit.
- Plug In: Insert the surge protector's flat plug into a standard, properly grounded 3-prong 125V AC wall outlet.
- Power On: Press the red ON/OFF switch to the 'ON' position. The 'Protected' and 'Grounded' indicator lights should illuminate (refer to Section 4 for details on indicator lights).
- Connect Devices: Plug your electronic devices and tools into the available outlets. Utilize the 4 power block outlets for larger adapters to prevent blocking other outlets.
4. Operating Instructions
The Defiant 10 Outlet Metal Surge Protector is designed for simple operation.
- Power Switch: The red ON/OFF switch controls power to all 10 outlets. Press it to the 'ON' position to supply power and to the 'OFF' position to cut power.
- Indicator Lights: The unit features two indicator lights:
- Protected: When this light is illuminated, it indicates that the surge protection circuitry is active and functioning correctly. If this light goes out, the surge protection has been compromised, and the unit should be replaced to ensure continued protection.
- Grounded: When this light is illuminated, it indicates that the surge protector is properly grounded. If this light is not illuminated, there may be a grounding issue with your wall outlet, and you should consult a qualified electrician.
- Connecting Devices: Plug your equipment directly into the surge protector's outlets. For devices with large power adapters, use the designated 'power block' outlets to avoid obstructing adjacent outlets.
5. Maintenance
To ensure optimal performance and longevity of your surge protector:
- Cleaning: Disconnect the surge protector from the wall outlet before cleaning. Use a soft, dry cloth to wipe the exterior. Do not use liquid cleaners or solvents.
- Inspection: Periodically check the power cord and the surge protector housing for any signs of damage, such as cuts, fraying, or cracks. If damage is found, discontinue use immediately and replace the unit.
- Surge Protection Status: Regularly check the 'Protected' indicator light. If it is off, the surge protection has been exhausted, and the unit will no longer protect against surges. Replace the surge protector to maintain protection for your devices.
6. Troubleshooting
If you encounter issues with your Defiant 10 Outlet Metal Surge Protector, refer to the following common problems and solutions:
- No Power to Outlets:
- Ensure the surge protector's ON/OFF switch is in the 'ON' position.
- Check if the wall outlet is functioning by plugging in another device directly.
- The surge protector may have an internal circuit breaker that has tripped due to an overload. Unplug all devices, reset the circuit breaker (if present, usually a small button), and then plug devices back in one by one.
- 'Protected' Indicator Light is Off:
- This indicates that the surge protection components have absorbed a significant surge and are no longer active. The unit will still function as a power strip, but it will not provide surge protection. For continued protection, the surge protector must be replaced.
- 'Grounded' Indicator Light is Off:
- This indicates a problem with the grounding of the wall outlet. The surge protector is not receiving a proper ground connection. Consult a qualified electrician to inspect your wiring. Do not use the surge protector if the 'Grounded' light is off, as it cannot provide full protection.
- Devices Not Receiving Full Power:
- Ensure the total power draw of all connected devices does not exceed the surge protector's maximum rating (1875W).
7. Specifications
| Feature | Specification |
|---|---|
| Model Number | YLPT-46 |
| Brand | Defiant |
| Manufacturer | YALING ELECTRIC APPLIANCE CO., LTD |
| Total Outlets | 10 |
| Surge Protection | 1500 Joules |
| Cord Length | 15 feet (4.6 meters) |
| Voltage Rating | 125 Volts |
| Current Rating | 15 Amps |
| Power Rating | 1875 Watts |
| Dimensions (L x W x H) | 32.5 x 9.7 x 0.1 cm (approximate, as per product data) |
| Weight | 1.32 kg (approximate) |
| Special Feature | Surge Protection, USB Slot (Note: USB slot not explicitly visible in product images or description, but mentioned in specifications. Please verify product for actual feature.) |
8. Warranty and Support
Connected Equipment Warranty:
This Defiant surge protector includes a $50,000 connected equipment warranty. This warranty provides coverage for equipment properly connected to the surge protector that is damaged by a power surge while the surge protector is functioning correctly. Please refer to the full warranty documentation provided with your product for specific terms, conditions, and claim procedures. Keep your purchase receipt and product packaging for warranty claims.
Manufacturer:
YALING ELECTRIC APPLIANCE CO., LTD
For further assistance or support, please contact the retailer or the manufacturer directly using the contact information provided on the product packaging or manufacturer's website.
