MENABO Stand Up 3 Bike Rack Instruction Manual

Introduction

This manual provides comprehensive instructions for the assembly, operation, and maintenance of your MENABO Stand Up 3 Bike Rack. Designed for durability and ease of use, this high-quality steel rack is capable of transporting up to three bicycles with a maximum combined weight of 45 kg (99.2 lbs). It is suitable for bicycle frames with a diameter ranging from 40 mm to 90 mm.

Please read these instructions carefully before installation and use to ensure safe and proper operation of the bike rack.

Figure 1: Front view of the MENABO Stand Up 3 Bike Rack, showcasing its sturdy frame and bike cradles.

Setup and Installation

The MENABO Stand Up 3 Bike Rack comes with all necessary mounting materials and an instruction manual for straightforward assembly. Follow these steps for proper setup and installation on your vehicle.

1. Unpacking and Component Identification

Carefully unpack all components from the box. Verify that all parts listed in the packing list are present. Familiarize yourself with the main frame, bike cradles, and securing straps.

Figure 2: Angled view of the bike rack, showing the main frame and attachment points for assembly.

2. Initial Assembly

Assemble the main frame components according to the included diagrams. Ensure all bolts and fasteners are securely tightened. The design allows for easy assembly, typically taking around 30 minutes for the initial setup.

3. Vehicle Attachment

Position the bike rack on the rear of your vehicle. The rack utilizes a strap mounting system. Attach the straps to the designated points on your vehicle's trunk or hatchback. Ensure the rack rests securely on the bumper and/or rear window, depending on your vehicle type.

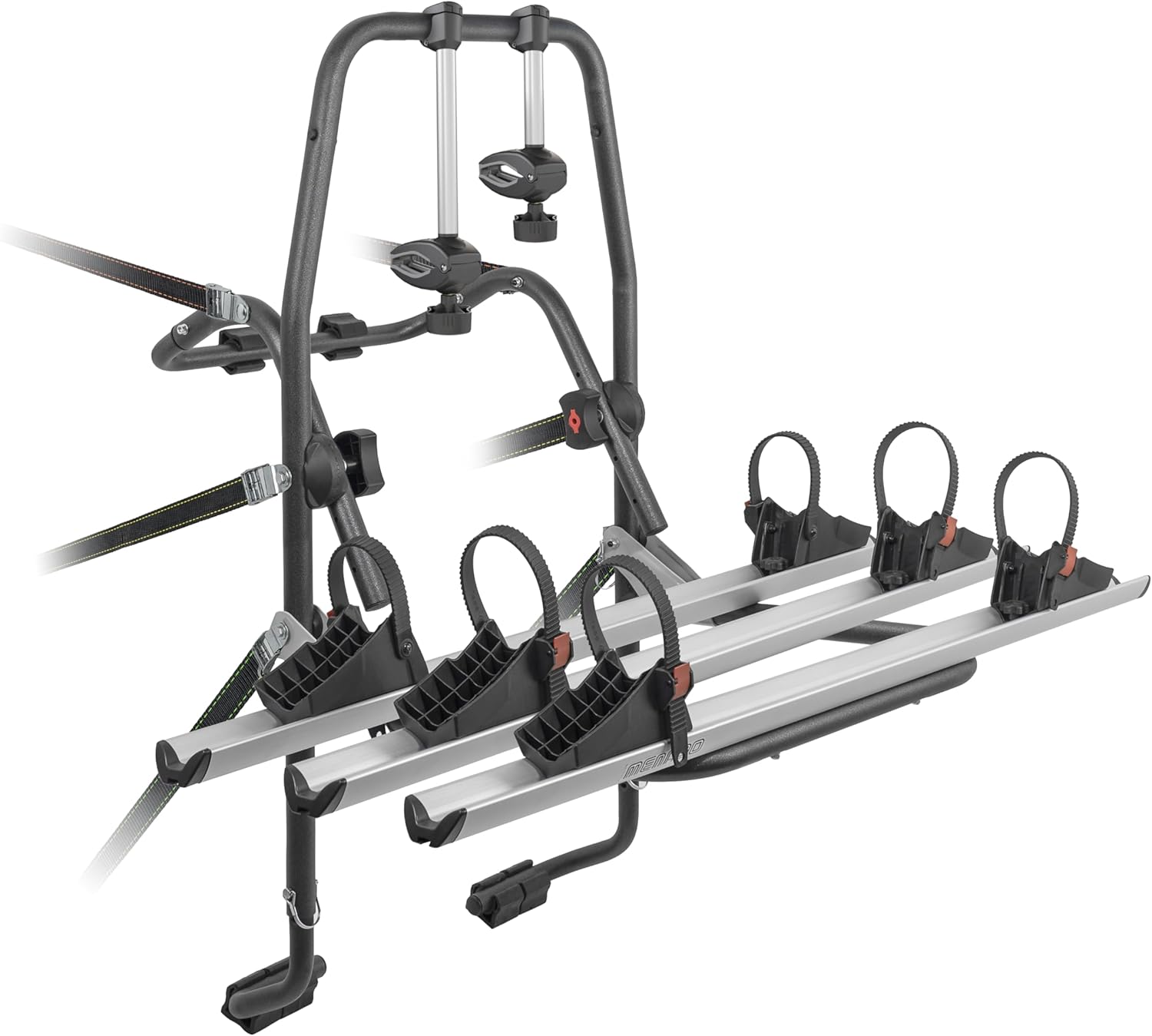

Figure 3: Side view illustrating the strap attachment points and the overall structure of the rack when ready for vehicle mounting.

Tighten all straps firmly to eliminate any movement of the rack. It is crucial that the rack is stable and does not wobble once installed. Double-check all connections before proceeding.

Operating Instructions

1. Loading Bicycles

The MENABO Stand Up 3 Bike Rack is designed to carry up to three bicycles. Place the first bicycle onto the rack, ensuring its frame fits securely into the cradles. The rack is compatible with bicycle frames ranging from 40 mm to 90 mm in diameter.

Secure the bicycle using the provided straps or clamps. Repeat this process for the remaining bicycles, ensuring even weight distribution and that the total weight does not exceed 45 kg (99.2 lbs).

Figure 4: The bike rack installed on a vehicle, demonstrating how three bicycles are securely loaded and transported.

2. Driving with the Rack

Before driving, perform a final check to ensure all bicycles are securely fastened and the rack itself is tightly secured to the vehicle. Drive cautiously, especially when turning or braking, and be mindful of the increased length and width of your vehicle due to the loaded rack.

Note that with bicycles loaded, accessing the vehicle's trunk or tailgate may be restricted or require temporary removal of the bikes.

Maintenance

Regular maintenance will prolong the life of your MENABO Stand Up 3 Bike Rack. The rack is constructed from high-quality steel, designed for durability.

• Cleaning: Clean the rack periodically with mild soap and water, especially after exposure to dirt, salt, or harsh weather conditions. Rinse thoroughly and dry to prevent corrosion.
• Inspection: Regularly inspect all straps, buckles, bolts, and frame components for signs of wear, damage, or corrosion. Replace any worn or damaged parts immediately.
• Lubrication: Apply a light lubricant to moving parts and threads of bolts as needed to ensure smooth operation and prevent seizing.
• Storage: When not in use, store the bike rack in a clean, dry place away from direct sunlight and extreme temperatures.

Troubleshooting

This section addresses common issues you might encounter with your bike rack.

• Rack Wobbles After Installation:

  Solution: Ensure all mounting straps are pulled taut and securely fastened. Check that the rack is properly seated on the vehicle's contact points. Re-adjust and re-tighten as necessary.

• Bicycles Not Secure:

  Solution: Verify that bicycle frames are correctly positioned in the cradles and that all securing straps/clamps are tightly fastened around the bike frames and wheels. Ensure the frame diameter is within the specified 40-90 mm range.

• Difficulty Opening Trunk/Tailgate:

  Solution: This is a common characteristic of rear-mounted bike racks, especially when loaded. It may be necessary to remove the bicycles or the entire rack to fully access the trunk. Some vehicles may allow partial opening with the rack installed.
• Scratches on Vehicle Paint:

  Solution: Always ensure that all contact points between the rack and your vehicle are clean and free of debris. Consider using protective films or pads on your vehicle's paint where the rack makes contact to prevent scratches.

Specifications

Warranty and Support

For detailed information regarding the product warranty, please refer to the official MENABO website or contact MENABO customer support directly. Warranty terms and conditions may vary by region and purchase date.

If you require technical assistance, have questions about installation, or need to order replacement parts, please reach out to the manufacturer's customer service department. Contact information can typically be found on the product packaging or the official MENABO website.
