BEKO Rear Shelf Support 4617500200 User Manual

1. Introduction

This user manual provides essential information for the BEKO Rear Shelf Support, model 4617500200. This component is designed as a replacement part for specific Beko refrigerator and freezer models, ensuring the stable placement of shelves. Please read these instructions carefully before installation to ensure proper fit and function.

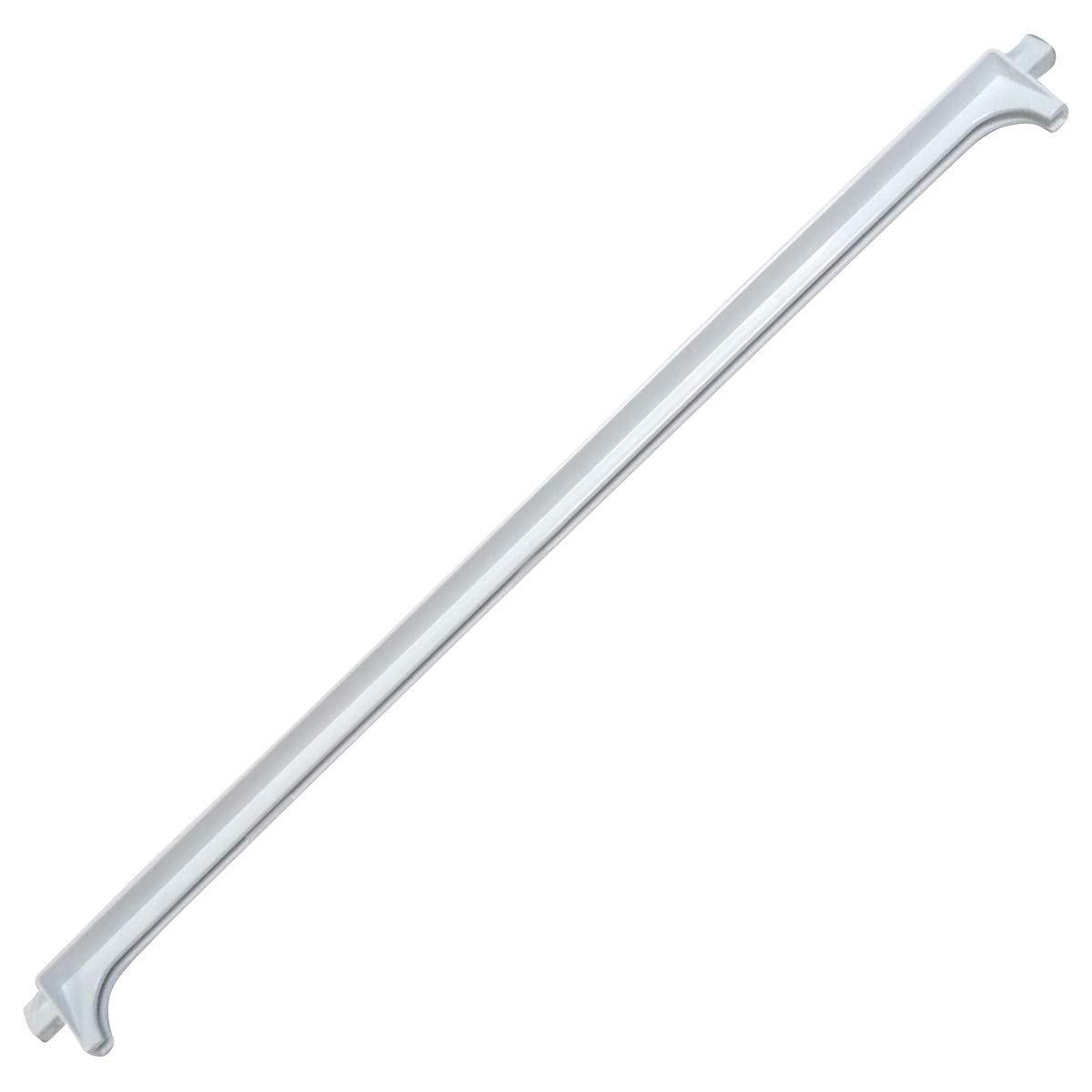

This image displays the BEKO Rear Shelf Support, model 4617500200. It is a long, slender, clear or light-colored plastic bar with specific fittings at each end, designed to hold a shelf in a refrigerator or freezer.

2. Product Overview

The BEKO Rear Shelf Support 4617500200 is a genuine replacement part intended to secure the rear edge of a glass or wire shelf within compatible Beko refrigeration appliances. Its primary function is to prevent the shelf from sliding backward and to provide structural integrity for items placed on the shelf.

2.1 Compatibility

This shelf support is compatible with various BEKO and Oceanic appliance models. A partial list of compatible models includes:

• RBI6301LH, CBI7705, DSA28001S, DSA28021, DSA28021S, KG1740, LBI2201, LBI22S, RBI1400, RBI2301, RBI2305, RBI23S
• DSA28001, SSA245, SSA25401, SSA25401S, SSA25421, SSA25421S, TA52000, CNA29120S, CSA22020, DSA25022, CBI7750HCA
• CBI77021, CBI.SA29020, CBI7751HCA, CBI7771, CBI7772, CBI77S, CNA29120, CNA29120T, CSA24022, CSA27620S, CSA29000
• DSA28000S, CSA31020, CSA31020X, DPA540, DSA25000, DSA25000S, DSA25020, DSA25020S, DSA25021X, DSA25022S, DSA28000, OCEAFC185W

For a complete list of compatible models, please refer to your appliance's original documentation or contact Beko customer support.

3. Setup / Installation

Installation of the BEKO Rear Shelf Support 4617500200 is typically straightforward, involving the replacement of an existing or damaged support. Always ensure the appliance is unplugged from the power supply before attempting any installation or repair.

3.1 Safety Precautions

• Disconnect Power: Always unplug the refrigerator or freezer from the electrical outlet before beginning any work.
• Handle with Care: The support may be made of plastic. Handle it carefully to avoid damage during installation.
• Proper Fit: Ensure the new support fits securely into the designated slots or grooves within the appliance. Do not force the part if it does not align correctly.

3.2 Installation Steps (General)

1. Prepare the Appliance: Open the refrigerator/freezer door and remove the shelf that requires the support. If replacing a broken support, carefully remove any remaining pieces.
2. Locate Mounting Points: Identify the specific slots or mounting points on the interior walls of the appliance where the shelf support is to be installed.
3. Insert the Support: Align the ends of the new BEKO Rear Shelf Support with the mounting points. Gently push or slide the support into place until it clicks or sits firmly.
4. Test Stability: Once installed, gently tug on the support to ensure it is securely fastened.
5. Reinstall Shelf: Place the shelf back onto the newly installed support, ensuring it rests evenly and securely.
6. Restore Power: Plug the appliance back into the electrical outlet.

If you encounter any difficulties, consult a qualified technician or the appliance's specific service manual.

4. Operating

The BEKO Rear Shelf Support 4617500200 operates passively once installed. Its function is to provide a stable and level surface for refrigerator or freezer shelves, preventing them from shifting or collapsing under the weight of stored items. No active operation or user interaction is required after proper installation.

5. Maintenance

Maintaining the BEKO Rear Shelf Support is simple and contributes to its longevity and the overall hygiene of your appliance.

5.1 Cleaning

• Regular Cleaning: Periodically wipe down the shelf support with a damp cloth and mild detergent.
• Avoid Harsh Chemicals: Do not use abrasive cleaners, solvents, or harsh chemicals, as these can damage the plastic material.
• Drying: Ensure the support is completely dry before reinstalling shelves or closing the appliance door.

5.2 Inspection

Occasionally inspect the support for any signs of cracks, stress fractures, or deformation, especially if heavy items are frequently placed on the shelves. Replace the support if any damage is observed to prevent potential shelf collapse.

6. Troubleshooting

While the BEKO Rear Shelf Support is a simple component, issues can arise. Here are some common troubleshooting tips:

6.1 Shelf Not Level or Stable

• Check Installation: Ensure the support is fully seated in its mounting points. It should not wobble or feel loose.
• Verify Compatibility: Confirm that the shelf support is the correct part for your specific Beko appliance model. Incorrect parts may not fit properly.
• Inspect for Damage: Look for any hidden cracks or deformities on the support itself or on the appliance's mounting points.

6.2 Difficulty Installing the Support

• Correct Orientation: Ensure the support is oriented correctly. Some supports have a specific top/bottom or left/right orientation.
• Clear Obstructions: Check for any debris or obstructions in the mounting slots that might prevent the support from seating properly.
• Gentle Pressure: Apply firm but gentle pressure. Avoid excessive force, which could damage the support or the appliance.

If problems persist, it is recommended to consult the appliance's service manual or contact Beko customer service for further assistance.

7. Specifications

8. Warranty and Support

For information regarding warranty coverage for the BEKO Rear Shelf Support 4617500200, please refer to the purchase documentation or contact the retailer from whom the part was acquired. Beko provides customer support for their products. You can visit the official Beko website or contact their customer service for assistance with product inquiries, technical support, or warranty claims.
