AWENTA Round Ventilation Grille

1. Introduction

Thank you for choosing the AWENTA Round Ventilation Grille. This manual provides essential information for the safe and effective installation, operation, and maintenance of your new ventilation grille. Please read this manual thoroughly before installation and keep it for future reference.

Safety Information

Always follow local building codes and regulations. Ensure power is disconnected if working near electrical components. Wear appropriate personal protective equipment (PPE) during installation. Keep out of reach of children.

2. Product Overview

The AWENTA Round Ventilation Grille is designed for use in ventilation systems, both indoors and outdoors, suitable for residential and commercial premises including kitchens, bathrooms, toilets, and garages. It features an adjustable duct size and inclining louvers for directed airflow.

Key Features:

• Adjustable flange diameter from Ø 4" to 6" (Ø 100mm to 150mm).
• External diameter of Ø 7" (Ø 178mm).
• Made from high-quality, durable, UV-resistant ABS plastic.
• Environmentally friendly and non-toxic material.
• Built-in fiberglass net for insect protection.
• Inclining louvers allow for adjustable airflow direction.
• Can be installed in multiple directions by rotating the grille.

Product Components:

Figure 2.1: Front view of the assembled ventilation grille.

Figure 2.2: Front view showing the integrated fiberglass net.

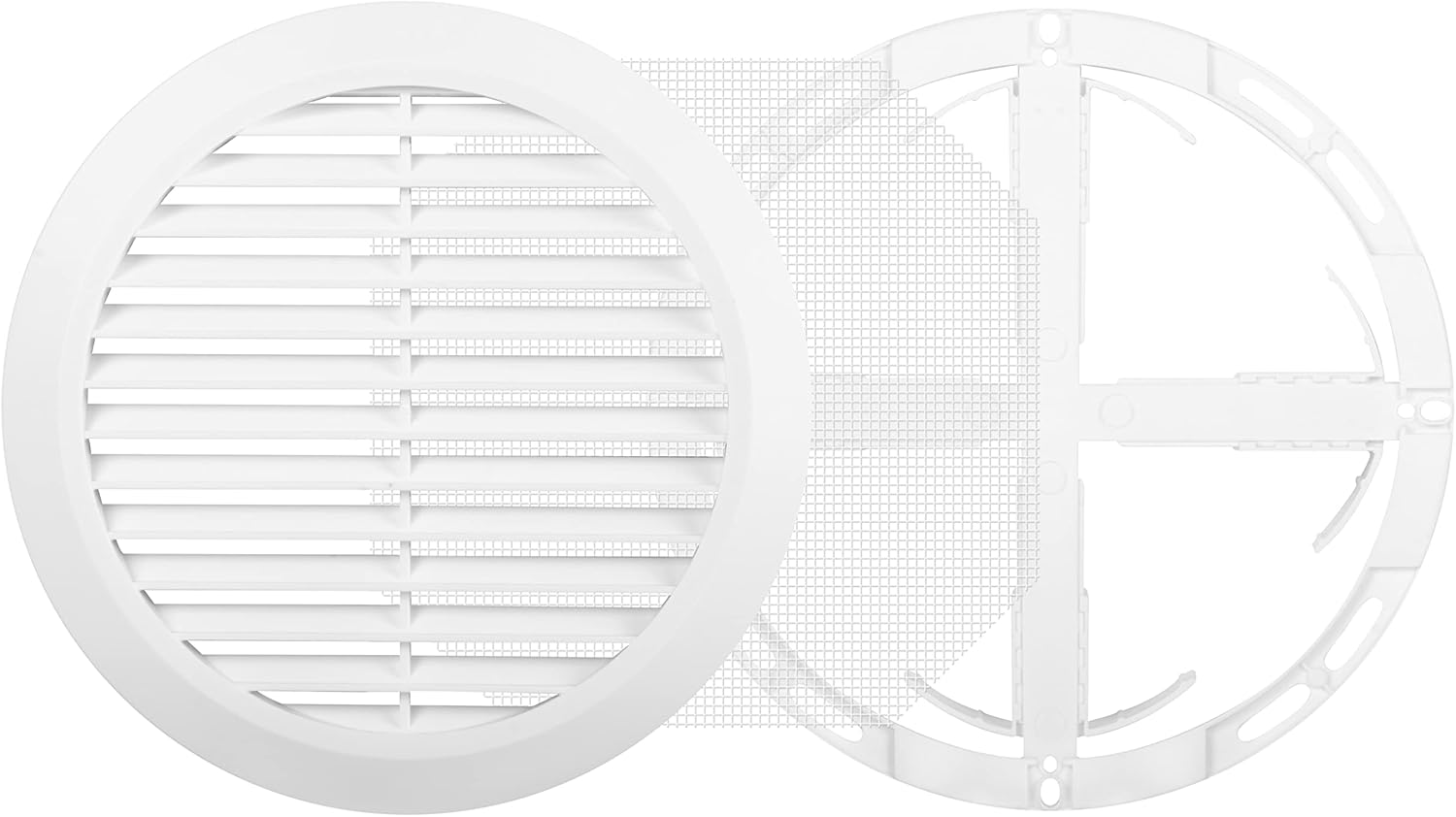

Figure 2.3: Exploded view showing the grille cover, fiberglass net, and adjustable mounting frame.

Figure 2.4: Rear view of the grille, highlighting the adjustable mounting clips.

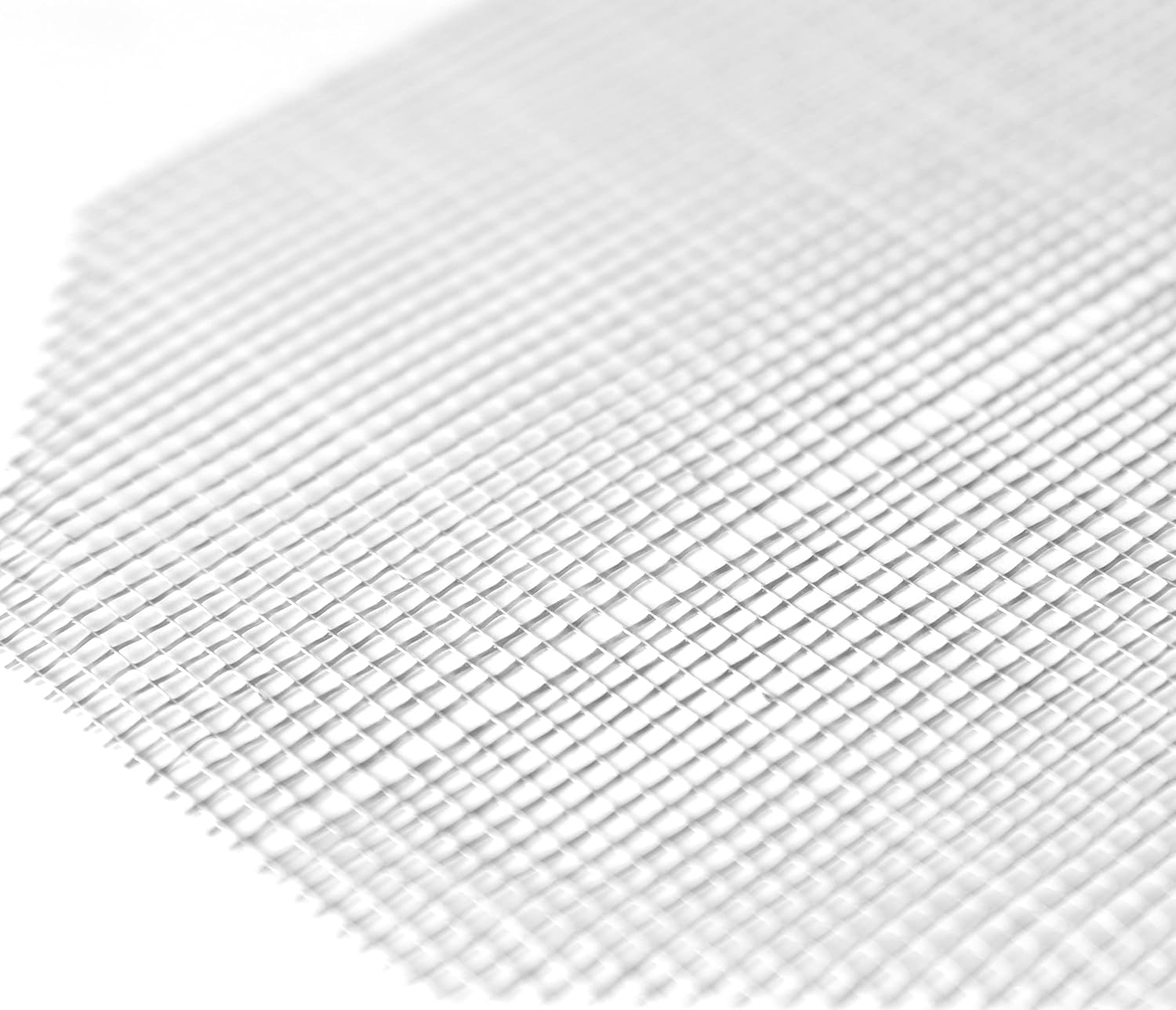

Figure 2.5: Detail of the fine mesh fiberglass net, designed to prevent insect entry.

3. Installation Instructions

The AWENTA ventilation grille is designed for easy installation in various duct sizes. Follow these steps for a secure fit:

1. Prepare the Opening: Ensure the duct opening is clean and free of debris. The grille is designed for duct sizes between 4 inches (100mm) and 6 inches (150mm) in diameter. The external diameter of the grille is 7 inches (178mm).


Figure 3.1: Grille dimensions showing minimum 100mm and maximum 150mm duct compatibility.

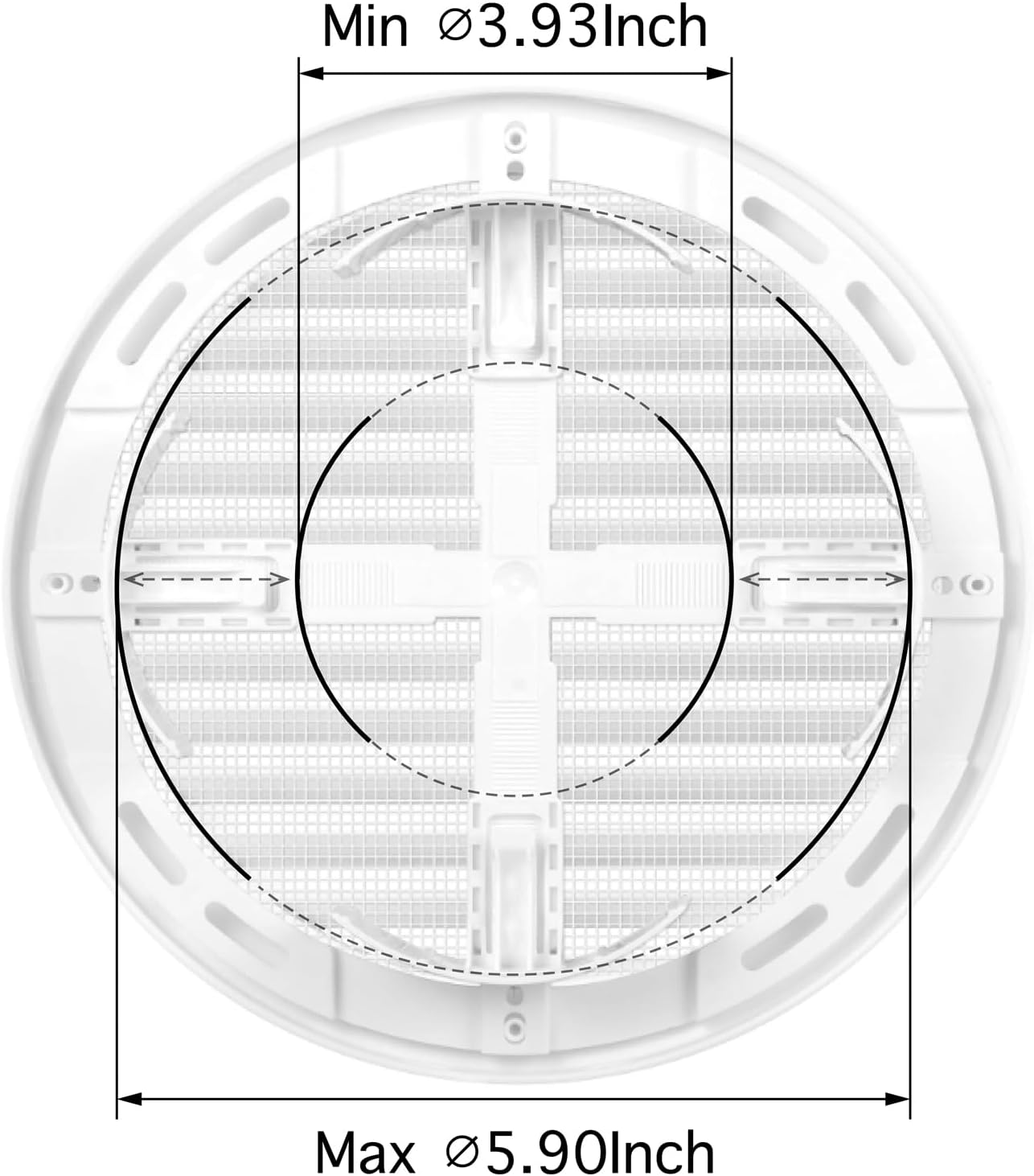

Figure 3.2: Grille dimensions showing minimum 3.93 inches and maximum 5.90 inches duct compatibility.

2. Separate Components: Gently detach the louvered cover from the main frame. The fiberglass net is typically integrated with the cover or frame.
3. Adjust Mounting Clips: The main frame features four sliding plastic arcs with ratchet fastenings. These are the adjustable mounting clips.

Figure 3.3: Detail of the adjustable clip mechanism on the grille frame.
4. Insert Frame: Place the main frame into the duct opening. Ensure the sliding arcs are retracted enough to fit into the opening.
5. Expand Clips: Once the frame is in place, slide out the arcs (mounting clips) until they are tight against the inside of the duct, securing the frame. Use the small lever provided (if applicable) to facilitate adjustment.


Figure 3.4: Side view illustrating the extended mounting clips for secure installation.

6. Attach Cover: Once the frame is securely mounted, re-attach the louvered cover to the frame. Ensure it snaps firmly into place. The grille can be rotated to direct airflow as desired.

4. Operation

The AWENTA Round Ventilation Grille is designed for passive or active ventilation systems. Its operation is straightforward:

• Airflow Direction: The grille features inclining louvers. While the louvers themselves are fixed, the entire grille can be rotated within its mounted frame to direct the airflow in the desired direction (e.g., upwards, downwards, or sideways).
• Continuous Ventilation: Once installed, the grille provides continuous air passage, either for exhaust or supply air, depending on your ventilation system's setup.

5. Maintenance

To ensure optimal performance and longevity of your AWENTA Ventilation Grille, periodic cleaning is recommended:

• Cleaning: The grille is washable. Gently detach the louvered cover from the frame. Wash the cover and the integrated fiberglass net with mild soap and water. Rinse thoroughly and allow to air dry completely before re-attaching.
• Inspection: Periodically inspect the grille for any signs of damage or blockage. Ensure the fiberglass net remains intact to prevent insect entry.
• Do Not Use Abrasives: Avoid using abrasive cleaners or harsh chemicals, as these can damage the plastic material and finish.

6. Troubleshooting

If you encounter issues with your AWENTA Ventilation Grille, refer to the following common problems and solutions:

7. Specifications

8. Warranty and Support

Warranty Information

AWENTA products are manufactured to high-quality standards. For specific warranty details, please refer to the documentation included with your purchase or visit the official AWENTA website. Keep your proof of purchase for warranty claims.

Customer Support

If you have any questions, require technical assistance, or need to report an issue, please contact AWENTA customer support through their official website or the retailer from whom you purchased the product. For more products and information, visit the Awenta Brand Store.
