Introduction
This manual provides detailed instructions for the installation, operation, and maintenance of your Jones Stephens P3560PN Lift and Turn Drain. Please read all instructions carefully before beginning installation to ensure proper function and longevity of the product. This drain is designed for use in standard bathtub applications.
Safety Information
- Always wear appropriate personal protective equipment (PPE) such as safety glasses and gloves during installation.
- Ensure the water supply to the fixture is turned off before beginning any plumbing work.
- If you are unsure about any step, consult a qualified plumber.
- Keep small parts away from children to prevent choking hazards.
Package Contents
Verify that all components are present before beginning installation:
- Lift and Turn Drain Body (Solid Brass)
- Lift and Turn Stopper (Solid Brass)
- Drain Flange/Strainer
- Rubber Gasket
- Lock Nut
- Tailpiece (if included with specific model variant)

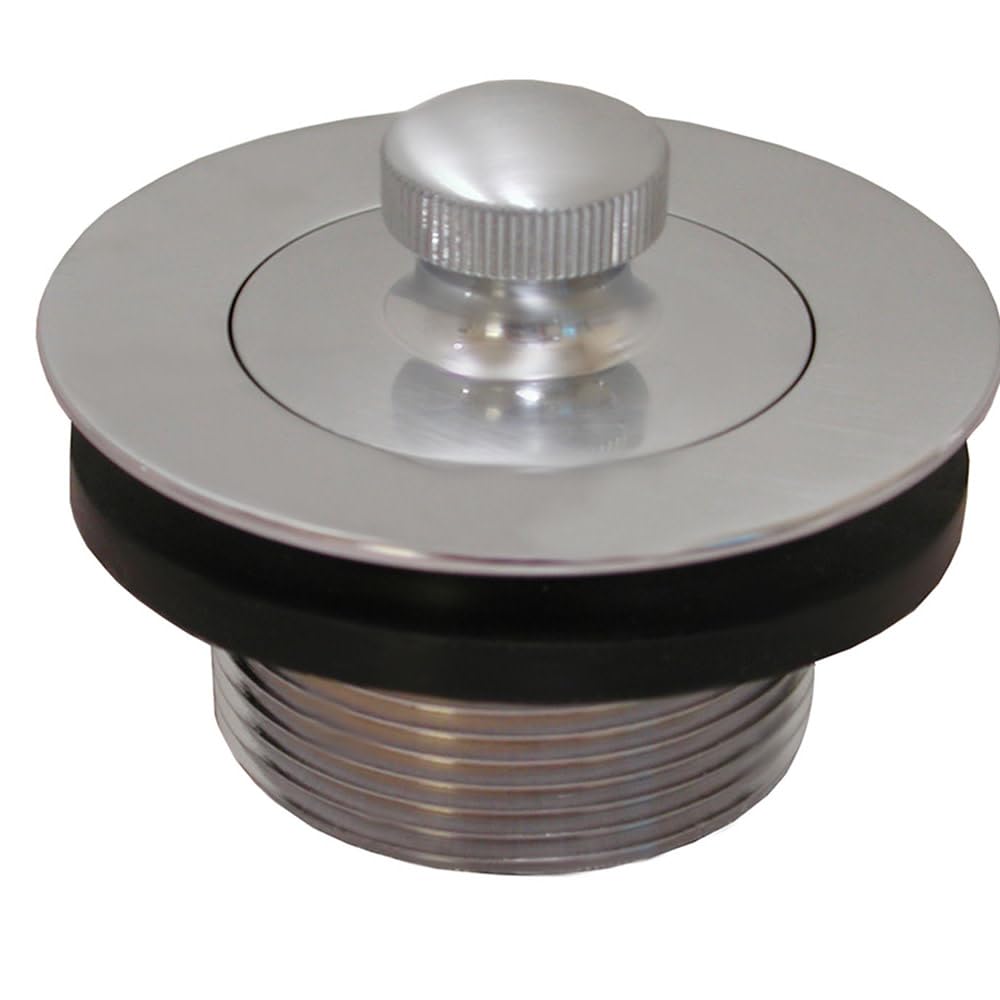

Image of the Jones Stephens P3560PN Polished Nickel Lift and Turn Drain, showcasing its polished nickel finish and lift-and-turn stopper mechanism.
Setup and Installation
Tools you may need: Plumber's putty or silicone sealant, pipe wrench, screwdriver, rags.
- Prepare the Drain Opening: If replacing an old drain, remove it completely and thoroughly clean the drain opening in the bathtub. Remove any old putty or sealant residue to ensure a clean surface for the new drain.
- Apply Sealant to Flange: Roll a thin bead of plumber's putty or apply a silicone sealant around the underside edge of the drain flange (the top part that sits inside the tub). Ensure complete coverage to prevent leaks.
- Insert Drain Flange: From inside the bathtub, insert the drain flange into the drain opening. Press down firmly to create a seal with the putty/sealant.
- Install Rubber Gasket and Lock Nut: From underneath the bathtub, slide the rubber gasket onto the threaded portion of the drain body, followed by the lock nut. Ensure the gasket is seated correctly against the tub's underside.
- Tighten the Lock Nut: Hand-tighten the lock nut, then use a pipe wrench or appropriate tool to tighten it further. Do not overtighten, as this can damage the tub or drain. The drain flange should be snug against the tub surface. Wipe away any excess plumber's putty that squeezes out from under the flange.
- Connect to Plumbing: Attach the drain tailpiece (if separate) to the bottom of the drain body and connect it to your existing P-trap assembly. Ensure all connections are tight and sealed according to local plumbing codes.
- Test for Leaks: Once installation is complete, fill the bathtub with water and allow it to sit for several minutes. Check underneath the tub for any signs of leaks around the drain connections. If leaks are detected, tighten connections as necessary.
Operating Instructions
The Jones Stephens P3560PN features a simple lift and turn mechanism for opening and closing the drain.
- To Close the Drain: Push the stopper down into the drain opening and turn it clockwise until it locks into place, sealing the drain.
- To Open the Drain: Turn the stopper counter-clockwise until it unlocks, then lift it up to allow water to drain.
Maintenance
Regular cleaning will help maintain the appearance and function of your drain.
- Clean the drain regularly with a soft cloth and mild, non-abrasive cleaner.
- Avoid using harsh chemicals, abrasive pads, or acidic cleaners, as these can damage the polished nickel finish.
- Periodically remove the stopper to clean any hair or debris that may accumulate in the drain opening to prevent clogs.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Slow Draining | Hair or debris accumulation; partial clog in plumbing. | Remove stopper and clean drain opening. Use a drain snake or chemical drain cleaner if the clog is further down the pipe. |
| Drain Leaks | Improperly seated gasket; loose lock nut; insufficient sealant. | Ensure gasket is correctly positioned. Tighten the lock nut. If leaks persist, disassemble, reapply plumber's putty/sealant, and reassemble. |
| Stopper Not Sealing | Debris under stopper; stopper mechanism needs adjustment. | Clean under the stopper. Check if the stopper can be adjusted (some models allow height adjustment by turning the stopper stem). |
Specifications
- Model Number: P3560PN
- Material: Solid Brass Body and Stopper
- Finish: Polished Nickel
- Type: Lift and Turn Drain
- Product Dimensions: Approximately 1.5"L x 1.5"W x 1.45"H (Drain Flange)
- Item Weight: 9.92 ounces
- UPC: 717510356083
Warranty and Support
Jones Stephens products are manufactured to high-quality standards. For specific warranty information or technical support, please refer to the official Jones Stephens website or contact their customer service department. Keep your purchase receipt for warranty claims.
