Jones Stephens D70205 Grid Vessel Drain Instruction Manual

1. Product Overview

The Jones Stephens D70205 Grid Vessel Drain is designed for use with sinks that do not have an overflow. This drain features a grid design to prevent larger debris from entering the plumbing system while allowing water to pass through efficiently. It is constructed for durability and finished in polished chrome for a clean aesthetic.

Key Features:

• Designed for sinks without overflow holes.
• Decorative polished chrome finish covers all metal parts, including the tailpiece and lock nut.
• Tailpiece opening measures 1-1/4 inches outside diameter (OD).
• Drain body is threaded completely to the top for secure installation.
• Compatible with sinks featuring a 1-1/2 inch drain hole.

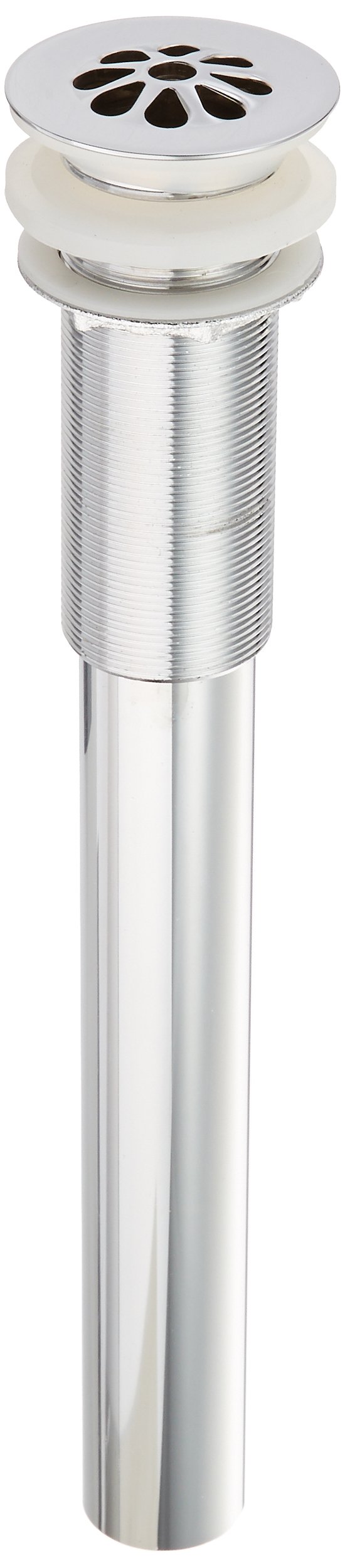

Figure 1: Jones Stephens D70205 Grid Vessel Drain assembly. This image shows the polished chrome finish and the grid design at the top, along with the threaded tailpiece.

2. Safety Information

Please read and understand all instructions before beginning installation. Failure to follow these instructions may result in property damage or personal injury. Always observe local plumbing codes.

• Wear appropriate personal protective equipment, such as safety glasses and gloves, during installation.
• Ensure the water supply to the sink is turned off before starting any work.
• Handle tools carefully to prevent injury.
• Do not overtighten connections, as this can damage the drain or plumbing fixtures.
• Keep small parts away from children.

3. Installation Instructions

3.1 Package Contents:

• Grid Vessel Drain Assembly (D70205)
• Washers and Nuts for installation

3.2 Tools Required:

• Adjustable Wrench or Basin Wrench
• Plumber's Putty or Silicone Sealant
• Rag or Towel

3.3 Step-by-Step Installation:

1. Prepare the Sink: Ensure the sink drain hole is clean and free of any old sealant or debris. Verify the sink drain hole diameter is 1-1/2 inches.
2. Apply Sealant: Apply a bead of plumber's putty or silicone sealant around the underside of the drain flange (the top part of the drain that sits in the sink).
3. Insert Drain: Insert the drain assembly through the drain hole from the top of the sink. Press down firmly to create a seal.
4. Install Washers and Nut: From underneath the sink, slide the rubber washer, then the friction washer (if included), and finally the lock nut onto the threaded tailpiece.
5. Tighten Nut: Hand-tighten the lock nut, then use an adjustable wrench to tighten it an additional 1/4 to 1/2 turn. Do not overtighten.
6. Connect P-Trap: Connect the P-trap assembly to the tailpiece of the new drain. Ensure all connections are hand-tightened, then snugged with a wrench.
7. Test for Leaks: Turn on the water supply and fill the sink. Check all connections for leaks. If leaks are present, tighten connections slightly until they stop. Remove any excess plumber's putty from the sink surface.

4. Operating Instructions

The Jones Stephens D70205 Grid Vessel Drain operates passively. Water flows through the grid opening into the plumbing system. The grid prevents larger objects from entering the drain, reducing the risk of clogs.

5. Maintenance

Regular maintenance will help ensure the longevity and proper function of your drain.

• Cleaning: Clean the visible parts of the drain regularly with a soft cloth and mild soap and water. Avoid abrasive cleaners, scouring pads, or harsh chemicals, as these can damage the polished chrome finish.
• Debris Removal: Periodically remove any hair or debris that may accumulate on the grid to maintain optimal drainage.
• Leak Check: Occasionally check underneath the sink for any signs of leaks around the drain connections.

6. Troubleshooting

Common Issues and Solutions:

• Slow Drainage:
  • Cause: Debris accumulation on the grid or in the P-trap.
  • Solution: Remove any visible debris from the grid. If the issue persists, the P-trap may need to be cleaned.
• Leaks Around Drain:
  • Cause: Loose connections or improper sealant application.
  • Solution: Ensure all nuts are snug (do not overtighten). If the leak is from the sink opening, the plumber's putty or silicone may need to be reapplied.
• Water Not Draining Completely:
  • Cause: Partial blockage further down the plumbing line.
  • Solution: This may indicate a clog beyond the drain assembly. Consult a plumber if basic cleaning does not resolve the issue.

7. Specifications

8. Warranty and Support

This Jones Stephens product comes with a limited warranty. For specific warranty details, please refer to the documentation included with your purchase or visit the official Jones Stephens website.

For technical assistance, replacement parts, or further inquiries, please contact Jones Stephens customer support:

• Website: www.jonesstephens.com (Note: This is a placeholder URL, please refer to actual product documentation for correct contact information.)
• Phone: Refer to the manufacturer's website or product packaging for current contact numbers.
