Blodgett 20355 Transformer and Screws 115/24V Instruction Manual

1. Introduction

This manual provides essential information for the safe and effective handling, installation, and maintenance of the Blodgett 20355 Transformer and Screws. This component is a genuine OEM (Original Equipment Manufacturer) replacement part designed for Blodgett ovens, ensuring compatibility and reliable performance within the specified electrical systems.

The Blodgett 20355 is a 115/24 Volt transformer, crucial for converting electrical power to the appropriate voltage required by various oven components.

2. Safety Information

WARNING: Electrical components can cause serious injury or death if not handled properly. Always follow these safety guidelines:

• Disconnect Power: Before attempting any installation, maintenance, or troubleshooting, ensure the main power supply to the appliance is completely disconnected and locked out.
• Qualified Personnel Only: Installation and service should only be performed by qualified, licensed technicians familiar with electrical systems and appliance repair.
• Proper Tools: Use appropriate insulated tools for electrical work.
• Inspect Components: Before installation, visually inspect the transformer for any signs of damage. Do not install damaged components.
• Follow Wiring Diagrams: Always refer to the specific appliance's wiring diagram for correct connections.

Failure to follow these safety instructions could result in electrical shock, fire, or damage to equipment.

3. Product Overview

The Blodgett 20355 Transformer is an internal mount power transformer designed to provide reliable voltage conversion within Blodgett commercial ovens. It converts 115V input to 24V output, powering control circuits and other low-voltage components.

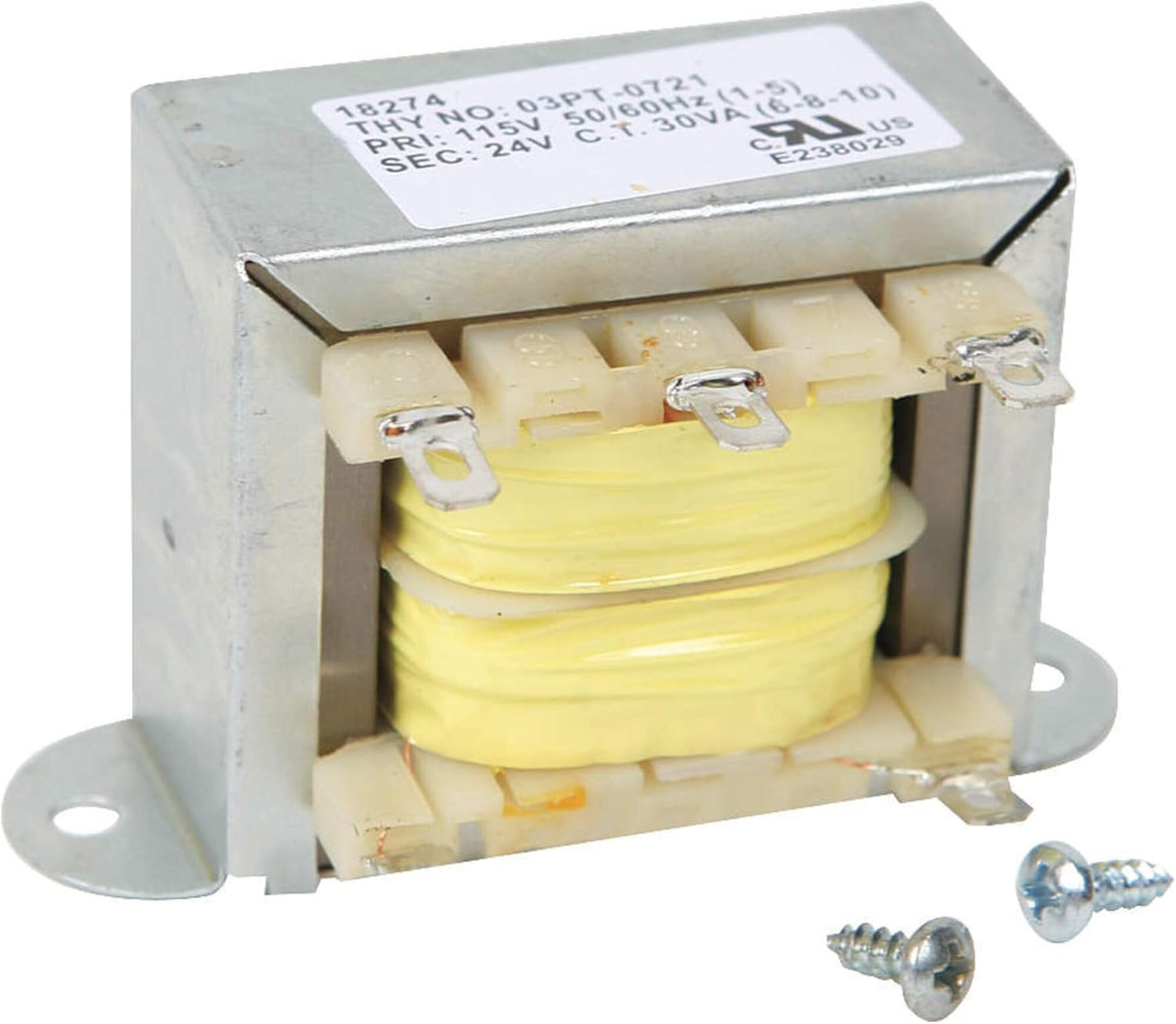

Image 1: Blodgett 20355 Transformer and Screws. This image shows the transformer unit with its mounting screws, illustrating its compact design and connection terminals.

Key features of this genuine OEM part include:

• Guaranteed Compatibility: OEM parts fit and function exactly like the original components, ensuring a perfect match for your Blodgett appliance.
• Higher Quality and Reliability: OEM parts are built to the same quality standards as the original components, reducing the risk of premature failure.
• Safety Assurance: Genuine parts provide peace of mind that your equipment remains safe to use.
• Maintain Your Warranty: Using genuine OEM parts is less likely to void your equipment's warranty.

4. Setup and Installation

Installation of the Blodgett 20355 Transformer should only be performed by a qualified service technician.

1. Preparation: Ensure the appliance is completely disconnected from its power source. Access the transformer compartment within the oven.
2. Removal of Old Transformer: Carefully disconnect all wiring from the existing transformer, noting the position and color of each wire. Remove the mounting screws securing the old transformer.
3. Installation of New Transformer: Position the new Blodgett 20355 transformer in the designated location. Secure it using the provided screws or the original mounting hardware.
4. Wiring Connections: Connect the wires to the new transformer according to the appliance's wiring diagram. Ensure all connections are secure and properly insulated.
5. Verification: Double-check all connections for correctness and security. Ensure no wires are pinched or exposed.
6. Power Restoration: Once installation is complete and verified, restore power to the appliance.
7. Testing: Test the appliance's functionality to ensure the transformer is operating correctly and providing the necessary voltage to the control circuits.

5. Operating Instructions

The Blodgett 20355 Transformer operates automatically as part of the oven's electrical system. Once correctly installed and power is supplied to the appliance, the transformer will convert the incoming 115V AC power to 24V AC, which is then used to power the oven's control board, relays, and other low-voltage components. There are no user-adjustable settings on the transformer itself.

6. Maintenance

The Blodgett 20355 Transformer is designed for long-term reliability and typically requires minimal maintenance. However, periodic inspection by a qualified technician is recommended as part of routine appliance servicing.

• Visual Inspection: During routine maintenance, visually inspect the transformer for any signs of overheating (discoloration), loose connections, or physical damage.
• Connection Integrity: Ensure all electrical connections to the transformer remain tight and free from corrosion.
• Environmental Factors: Ensure the area around the transformer is free from excessive dust, moisture, or debris that could impede cooling or cause electrical issues.

7. Troubleshooting

If the appliance is experiencing power-related issues, the transformer may be a contributing factor. Troubleshooting should only be performed by a qualified technician.

• No Power to Controls: If the oven's control panel or low-voltage components are not receiving power, check the input voltage to the transformer (115V) and the output voltage (24V) using a multimeter.
• Overheating: An overheating transformer can indicate an internal fault or an excessive load. Disconnect power immediately and investigate the cause.
• Blown Fuses/Tripped Breakers: Repeatedly blown fuses or tripped breakers associated with the oven's control circuit may indicate a short circuit within the transformer or connected components.

If the transformer is determined to be faulty, it must be replaced with a genuine Blodgett 20355 part.

8. Specifications

9. Warranty and Support

As a genuine OEM replacement part, the Blodgett 20355 Transformer is designed to meet the manufacturer's original specifications, ensuring compatibility and maintaining the warranty of your Blodgett appliance. Using non-OEM parts may void your appliance's warranty and could lead to performance issues or safety hazards.

For specific warranty details, technical support, or service inquiries, please contact Blodgett customer service or an authorized Blodgett service provider. Refer to your appliance's documentation for contact information.

The EU Spare Part Availability Duration for this component is 10 years, ensuring long-term support for European customers.
