Introduction
This instruction manual provides essential information for the safe installation, operation, and maintenance of your Quoizel PRN8606C Paragon Platinum 6-Light Bath Bar Vanity Wall Lighting. Please read these instructions thoroughly before beginning installation and retain them for future reference. Proper installation and adherence to safety guidelines are crucial for optimal performance and user safety.
Figure 1: Front view of the Quoizel PRN8606C Paragon Platinum Bath Bar Vanity Wall Lighting.
Safety Information
WARNING: Risk of electric shock. Disconnect power at the fuse box or circuit breaker before installation or servicing.
- All electrical connections must be in accordance with local codes and ordinances, and the National Electric Code (NEC).
- Consult a qualified electrician if you are unfamiliar with electrical wiring.
- Wear safety glasses and appropriate protective gear during installation.
- Handle glass components with care to prevent breakage and injury.
- Ensure the fixture is securely mounted to a structural element or an approved electrical junction box.
- Do not exceed the maximum wattage specified for the bulbs.
Package Contents
Verify that all components are present before beginning installation:
- Lighting Fixture Assembly (with integrated backplate)
- Glass Shades (6 pieces)
- G4 Base Xenon Bulbs (6 pieces, 20 Watts each)
- Mounting Hardware (screws, wire nuts, etc.)
- Instruction Manual
Setup and Installation
Follow these steps for safe and proper installation:
- Turn Off Power: Before starting, ensure the power supply to the installation area is turned off at the main circuit breaker or fuse box.
- Prepare Mounting Surface: The fixture is designed for wall mounting over an existing junction box (junction box not included). Ensure the junction box is securely installed and capable of supporting the fixture's weight (approximately 6.38 lbs).
- Connect Wiring: Carefully pull the electrical wires from the junction box. Connect the fixture's wires to the house wires according to standard electrical practices:
- Connect the black (hot) wire from the fixture to the black (hot) wire from the junction box.
- Connect the white (neutral) wire from the fixture to the white (neutral) wire from the junction box.
- Connect the green or bare copper (ground) wire from the fixture to the green or bare copper (ground) wire from the junction box.
- Mount Fixture: Align the fixture's backplate with the junction box and secure it using the provided mounting screws. Ensure the fixture is flush against the wall and stable.
Figure 2: Angled view of the lighting fixture, showing the structure for mounting.
- Install Bulbs: Insert the provided 20 Watt G4 Base Xenon bulbs into their respective sockets. Handle bulbs by their glass to avoid transferring oils from your skin, which can reduce bulb life.
- Attach Glass Shades: Carefully place each clear twist glass shade over its corresponding bulb and secure it according to the fixture's design. Ensure they are firmly seated but do not overtighten.
Figure 3: Side view of the fixture, illustrating the glass shade design.
- Restore Power: Once installation is complete and all components are secure, restore power at the circuit breaker. Test the light fixture to ensure proper operation.
Operating Instructions
The Quoizel PRN8606C Bath Bar Vanity Wall Lighting operates via a standard wall switch (not included). Once installed and wired correctly, simply toggle the wall switch to turn the light fixture on or off.
- Bulb Type: This fixture uses 6-20 Watt G4 Base Xenon bulbs. The total wattage is 120 Watts.
- Voltage: The G4 bulbs operate at 12 Volts. The fixture includes an internal transformer to convert standard household voltage to 12V for the bulbs.
Maintenance
Regular maintenance ensures the longevity and appearance of your lighting fixture.
- Cleaning: To clean the fixture, turn off the power and allow it to cool. Wipe the polished chrome finish with a soft, dry cloth. For glass shades, use a mild glass cleaner applied to a cloth, then wipe the shades. Avoid abrasive cleaners or harsh chemicals that may damage the finish or glass.
- Bulb Replacement: When a bulb burns out, turn off the power to the fixture. Carefully remove the glass shade. Gently pull the old G4 bulb straight out from its socket. Insert a new 20 Watt G4 Base Xenon bulb, pushing it straight into the socket. Replace the glass shade. It is recommended to replace all bulbs at once for consistent light output and to avoid frequent access to the fixture.

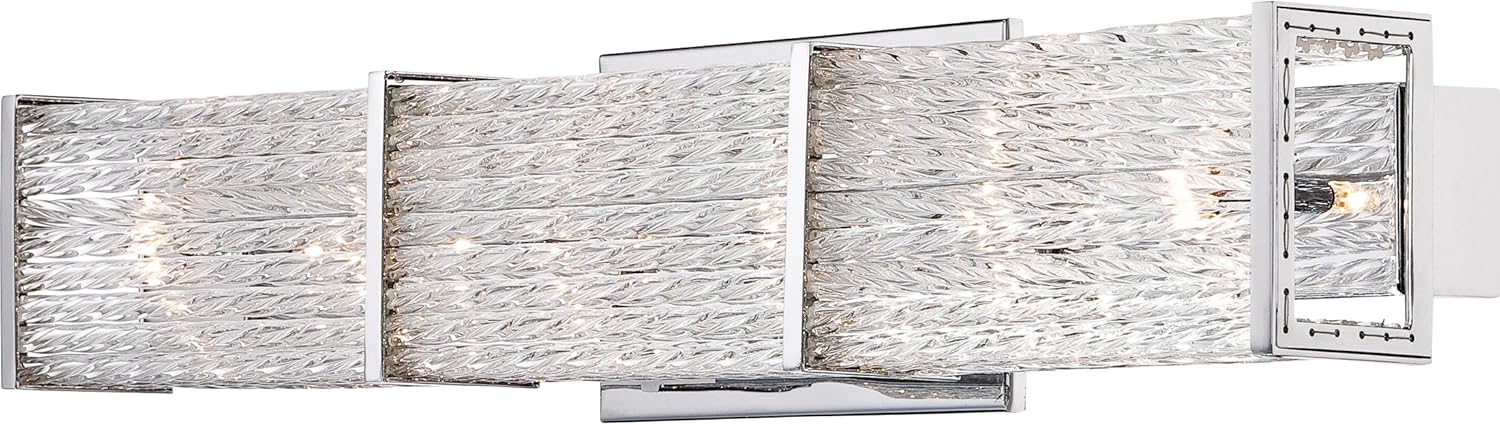

Figure 4: Close-up of the fixture, illustrating the bulb and socket area for replacement.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Light does not turn on. | No power to the fixture. | Check circuit breaker or fuse. Ensure wall switch is on. |
| Light does not turn on. | Bulbs are faulty or incorrectly installed. | Replace bulbs. Ensure bulbs are fully seated in sockets. |
| Light flickers. | Loose wiring connection. | Turn off power. Check all wire connections in the junction box and at the fixture. Tighten as necessary. |
| Light flickers. | Faulty bulb. | Replace the flickering bulb. |
| Glass shades are loose. | Shades not properly secured. | Gently tighten the securing mechanism for each shade. Do not overtighten. |
Specifications
| Feature | Detail |
|---|---|
| Model Number | PRN8606C |
| Brand | Quoizel |
| Dimensions (H x W x D) | 4.75" H x 21.5" W x 1" D (Product Dimensions) |
| Backplate Dimensions | 7" W x 5" H |
| Weight | 6.38 LBS |
| Number of Lights | 6 |
| Bulb Type | G4 Base Xenon |
| Max Wattage per Bulb | 20 Watts |
| Total Wattage | 120 Watts |
| Bulb Voltage | 12 Volts (requires internal transformer) |
| Material | Iron, Glass |
| Finish | Polished Chrome |
| Shade Material | Glass |
| Location Rating | ETL Approved for DAMP Locations |
| Specification Met | UL Listed |
| Power Source | Corded Electric |
Warranty and Support
Warranty: No specific warranty information is provided in the product details. Please refer to your purchase documentation or contact the retailer for warranty specifics.
Customer Support: For technical assistance, missing parts, or further inquiries, please contact Quoizel customer service. Refer to the contact information provided with your purchase or visit the official Quoizel website.
