1. Introduction
This manual provides essential information for the safe and efficient operation of your McGrey DJ-1022 Passive PA DJ Speakers. Please read it thoroughly before use and retain it for future reference. These speakers are designed for sound reinforcement applications, offering a robust and clear audio experience.
2. Safety Instructions
- Read all instructions carefully before operating the speakers.
- Keep this manual in a safe place for future reference.
- Do not expose the speakers to rain, moisture, or extreme temperatures.
- Ensure adequate ventilation around the speakers to prevent overheating.
- Connect the speakers only to compatible amplifiers with appropriate power ratings and impedance.
- Avoid operating the speakers at excessive volume levels for prolonged periods to prevent hearing damage and speaker damage.
- Do not attempt to service the speakers yourself. Refer all servicing to qualified personnel.
- Position speakers securely to prevent them from falling, especially when using pole mounts.
3. Package Contents
The package should contain the following items:
- 2 x McGrey DJ-1022 Passive PA DJ Speakers
- User Manual (this document)
Inspect the package upon receipt to ensure all components are present and undamaged. Contact your retailer immediately if any items are missing or damaged.
4. Setup
4.1 Speaker Placement
Place the speakers on a stable, level surface or mount them on suitable speaker stands using the integrated pole mount. Ensure the speakers are positioned to provide optimal sound coverage for your intended audience.
Image: Bottom view of the speaker, highlighting the integrated pole mount socket for stand placement.
4.2 Connections
Before making any connections, ensure your amplifier is turned off and disconnected from the power supply. Connect the speakers to your amplifier using high-quality speaker cables. The McGrey DJ-1022 speakers feature a versatile connection panel.
Image: Detailed view of the speaker's rear connection panel, showing two Speakon compatible connectors and two binding post terminals for amplifier connection.
- Speakon Compatible Connectors: Use these for secure and reliable connections with amplifiers equipped with Speakon outputs. You can use one for input and the other for daisy-chaining to another speaker if your amplifier supports it.
- Binding Post Terminals: These allow connection using bare wire, banana plugs, or spade connectors. Ensure correct polarity (+ to + and - to -) when connecting.
Always ensure a secure connection to prevent signal loss or damage to your equipment.
5. Operating Instructions
5.1 Powering On/Off
- Ensure all connections between the speakers and the amplifier are secure before powering on.
- Turn on your audio source (e.g., mixer, media player).
- Turn on your amplifier. Start with the amplifier's volume at its lowest setting.
- When powering off, first turn down the amplifier volume, then turn off the amplifier, and finally turn off your audio source.
5.2 Volume Control
Gradually increase the amplifier's volume to the desired listening level. Avoid pushing the amplifier or speakers into distortion, as this can cause damage.
5.3 Impedance Matching
The McGrey DJ-1022 speakers have an impedance of 8 Ohms. Ensure your amplifier is rated to safely drive an 8 Ohm load. Mismatching impedance can lead to amplifier overheating or speaker damage.
6. Maintenance
6.1 Cleaning
Wipe the speaker cabinets with a dry, soft cloth. Do not use liquid cleaners, solvents, or abrasive materials, as these can damage the felt surface or other components.
6.2 Storage
When not in use, store the speakers in a dry, cool environment, away from direct sunlight and extreme temperature fluctuations.
6.3 Inspection
Periodically inspect speaker cables and connectors for any signs of wear or damage. Replace damaged cables immediately.
7. Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| No sound from speakers |
|
|
| Distorted sound |
|
|
| Low volume output |
|
|
8. Specifications

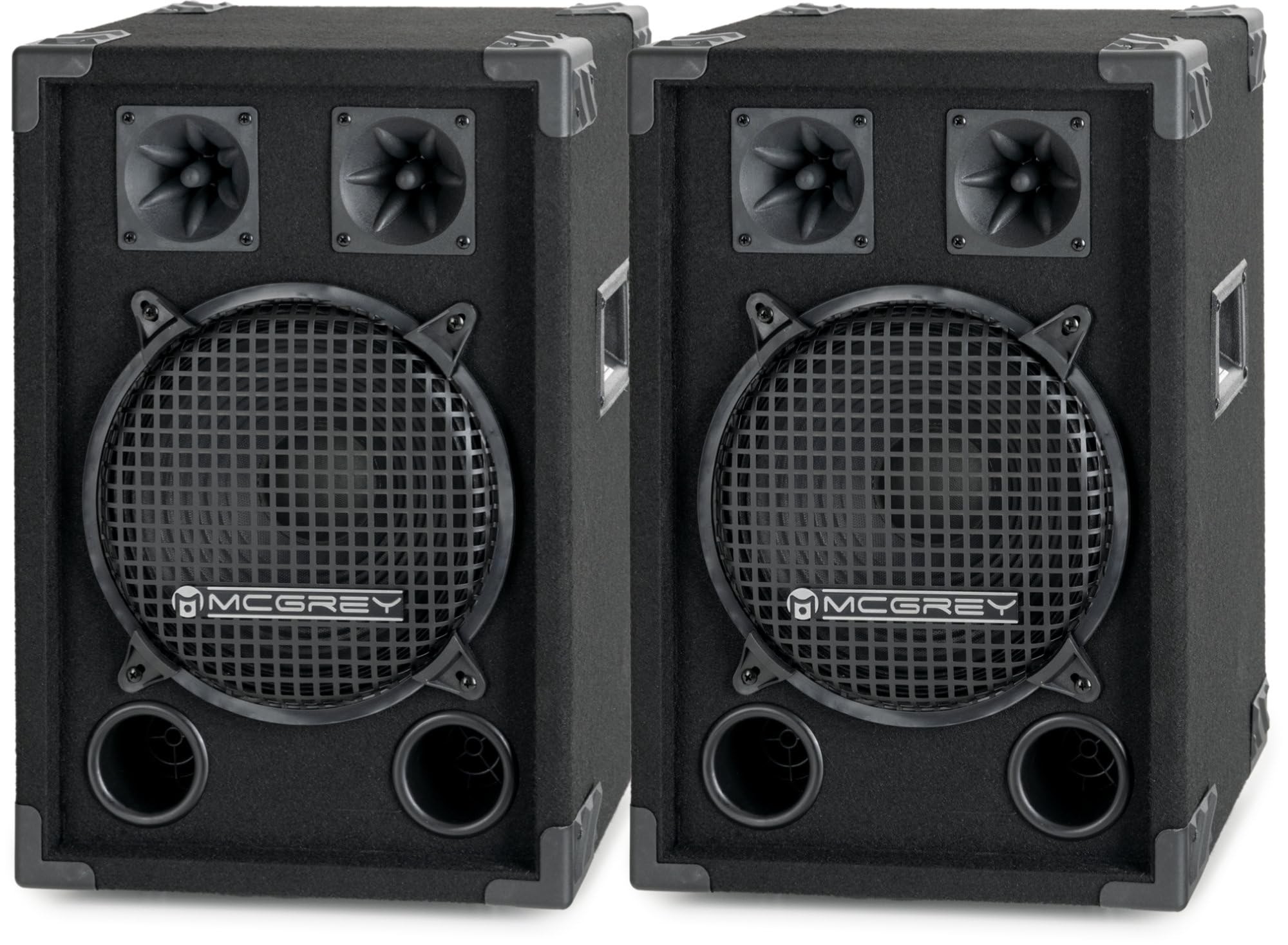

Image: An overall view of the McGrey DJ-1022 speaker, showcasing its robust design and components.
- Speaker Type: 2-way passive PA DJ speaker
- Subwoofer: 10-inch (25 cm)
- Tweeters: Two piezo tweeters
- RMS Power: 200W
- Max Power: 400W
- Impedance: 8 Ohm
- Sensitivity: 90dB (+/-2dB)
- Frequency Response: 55Hz - 18kHz
- Dimensions (H x W x D): 49 x 33 x 30 cm
- Weight: 6.2 kg per speaker
- Cabinet Material: Robust wood with felt surface
- Protection: Metal grille for subwoofer, protective corners
- Handles: Integrated side handles for transport
- Connection Panel: Two Speakon compatible inputs/outputs, two binding post terminals
- Mounting: Integrated pole mount socket
9. Warranty and Support
The McGrey DJ-1022 speakers come with a limited warranty. For specific details regarding warranty coverage, duration, and terms, please refer to the warranty card included with your product or contact your point of purchase.
For technical support, troubleshooting assistance, or warranty claims, please contact your retailer or the manufacturer, McGrey, directly. Have your product model number (DJ-1022) and proof of purchase ready when contacting support.
