Introduction
This document provides comprehensive instructions for the Dorman 56497 Passenger Side Door Mirror Glass. This mirror glass is engineered as a direct replacement for the original mirror glass on specific Toyota vehicle models, ensuring a precise fit and function. It includes features such as heating and an integrated turn signal, where applicable.
Vehicle Compatibility
The Dorman 56497 Passenger Side Door Mirror Glass is compatible with the following Toyota models and years:
- Toyota Sequoia: 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017
- Toyota Tundra: 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017
To confirm exact vehicle fitment, utilize the Amazon garage tool or consult your vehicle's specifications.
What's in the Box
- Dorman 56497: Plastic Backed Door Mirror Glass
Additional tools for installation may be included or required, such as a flat-head screwdriver or a plastic trim removal tool.
Installation Instructions
Follow these steps for proper installation of the Dorman 56497 Passenger Side Door Mirror Glass. It is recommended to consult a certified automotive professional for any complex repairs.
Step 1: Prepare for Removal
Ensure the vehicle is turned off and the parking brake is engaged. Gather necessary tools, which may include a flat-head screwdriver or a plastic trim removal tool.
Step 2: Remove Existing Mirror Glass
Carefully pry the existing mirror glass from its casing. Start from one edge and work your way around. If the mirror is broken, exercise caution to avoid injury from glass shards.
Image Description: A person's hand uses a flat-head screwdriver to carefully pry the broken mirror glass from the side mirror housing of a silver vehicle. The mirror glass is cracked.
Step 3: Disconnect Wires
Once the old mirror glass is partially detached, disconnect any electrical wires connected to the mirror plate. These typically include connections for heating and turn signals. Handle wires gently to prevent damage.
Image Description: A close-up view of the back of a car mirror glass with two electrical wires disconnected from their terminals. The mirror glass is detached from the mirror housing.
Step 4: Connect New Mirror Glass
Connect the vehicle's electrical wires to the corresponding terminals on the back of the new Dorman 56497 mirror glass. Ensure a secure connection for proper functionality of heating and turn signal features.

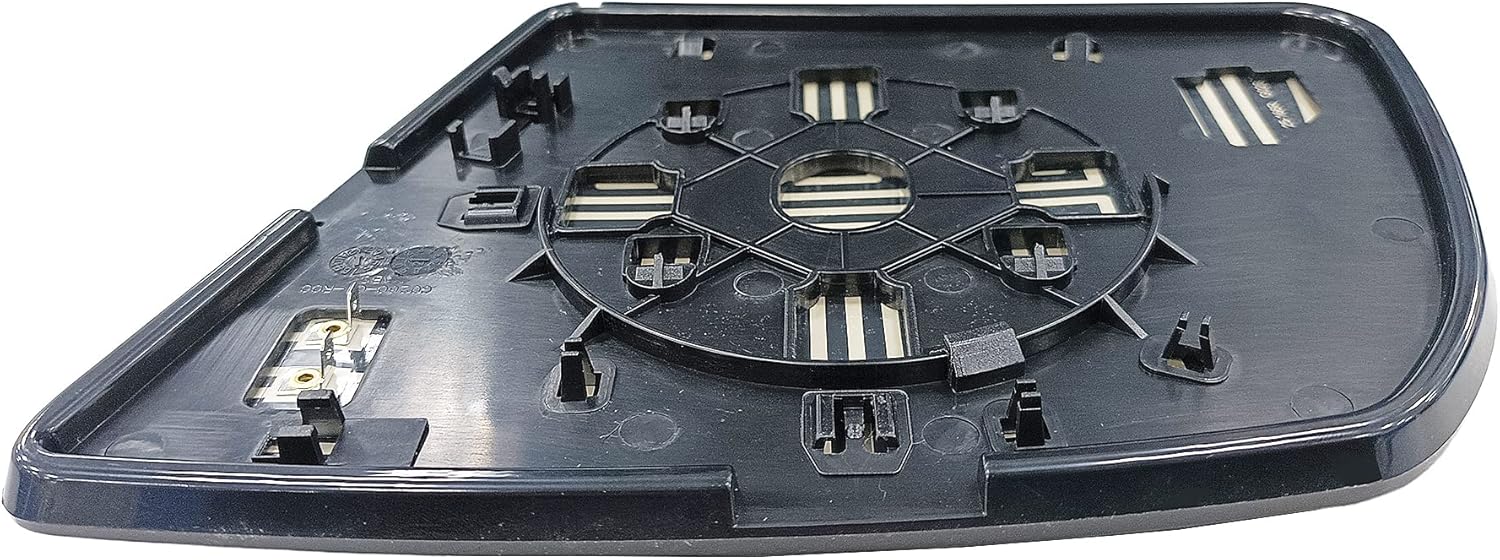

Image Description: The back of the new Dorman 56497 mirror glass, showing the electrical terminals for heating and turn signal connections. The plastic backing is visible.
Step 5: Secure New Mirror Glass
Align the new mirror glass with the mirror housing and apply firm, even pressure to snap it into place. Ensure all clips are securely engaged and the mirror is flush with the housing.
Image Description: A clear view of the Dorman 56497 Passenger Side Door Mirror Glass, showing the "Objects in mirror are closer than they appear" warning and the heating element icon.
Installation Video Resources
For visual guidance, refer to the following installation videos:
Exterior Mirror Replace Video (by Poso Auto Parts)
Video Description: This video demonstrates the process of replacing an exterior mirror, including removal of the old mirror, disconnecting heating cables, installing new mirror glass, and reconnecting the heating cables. It highlights the use of a mirror glass replacement tool and emphasizes careful handling of heating connections.
Replacement for 2007-2020 Toyota Tundra, 2008-2017 Sequoia (by Poso Auto Parts)
Video Description: This video showcases the replacement of a side mirror glass for Toyota Tundra and Sequoia models. It illustrates the mirror's features, including the built-in LED turn signal and rapid heating for defogging and defrosting. The video also demonstrates the plug-and-play heating socket and the adapter for 2-pin and 4-pin connectors.
Passenger Side Door Heated Mirror (by Senzeal)
Video Description: This video provides a detailed look at a passenger side heated mirror, demonstrating its features such as the built-in LED turn signal and the heating function. It shows the mirror's appearance and functionality when connected to power.
Mirrors for 2008 to 2017 Sequoia and 2007 to 2020 Tundra (by LOIYLLEN)
Video Description: This video presents a side mirror replacement for Toyota Sequoia and Tundra models, highlighting its design and compatibility. It shows the mirror's appearance and the integrated turn signal feature.
Compatible with Toyota Tundra, Sequoia with Turn Signal (by Poso Auto Parts)
Video Description: This video demonstrates the turn signal functionality of a compatible side mirror for Toyota Tundra and Sequoia. It shows the illuminated turn signal arrow on the mirror surface.
Operation
The Dorman 56497 mirror glass operates in conjunction with your vehicle's existing mirror system. Key operational features include:
- Mirror Adjustment: Adjust the mirror angle using your vehicle's interior mirror controls.
- Heating Function: If your vehicle is equipped with heated mirrors, the mirror glass will defog and defrost automatically or via a dedicated control, improving visibility in cold or humid conditions.
- Turn Signal: The integrated LED turn signal will illuminate in sync with your vehicle's turn signals, providing additional visibility to other drivers.
- Convex Lens: The convex lens design provides a wider field of view, with the standard warning "OBJECTS IN MIRROR ARE CLOSER THAN THEY APPEAR" to remind the driver of the perspective difference.
Maintenance
To ensure longevity and optimal performance of your mirror glass:
- Cleaning: Clean the mirror surface with a soft cloth and standard glass cleaner. Avoid abrasive materials that could scratch the glass.
- Inspection: Periodically inspect the mirror for any cracks, chips, or loose connections. Address any issues promptly to maintain safety and functionality.
- Electrical Connections: Ensure electrical connections remain free from corrosion and are securely attached.
Troubleshooting
- Mirror Not Heating: Check the electrical connections to the heating element. Ensure your vehicle's heated mirror function is activated. If issues persist, consult a professional.
- Turn Signal Not Working: Verify the electrical connection for the turn signal. Check your vehicle's turn signal system for any other faults.
- Mirror Appears Loose: Re-apply firm, even pressure to the mirror glass to ensure it is fully seated and all clips are engaged.
Specifications
| Feature | Detail |
|---|---|
| Brand | Dorman |
| Model Number | 56497 |
| Auto Part Position | Passenger Side (Left) |
| Mounting Type | Door Mount |
| Lens Curvature | Convex |
| Shape | Rectangular |
| Item Dimensions (L x W x H) | 11.4 x 8.7 x 2.4 inches |
| Item Weight | 0.82 Pounds (13.1 ounces) |
| Included Components | Dorman 56497: Plastic Backed Door Mirror Glass |
| OEM Part Number | 30246; 879030C020 |
| UPC | 037495564977 |
Warranty and Support
For information regarding product warranty, returns, or technical support, please refer to the official Dorman Products website or contact their customer service directly. Specific warranty details may vary based on purchase location and retailer.
You can visit the Dorman Store for more information: Dorman Store on Amazon.
