Introduction
Thank you for purchasing the Feit Electric LED Flashlight Combo Pack. This pack includes two high-performance LED flashlights: one 500 lumen and one 240 lumen model. Both flashlights are designed for durability and versatility, featuring a sliding zoom function and multiple light modes. This manual provides essential information for the safe and effective use of your new flashlights.
Product Features
- High Power LEDs: Provides bright and efficient illumination.
- Sliding Zoom: Allows quick adjustment between a wide flood beam and a narrow spot beam.
- Multiple Light Modes: Includes High Beam, Low Beam, Strobe Light, and Emergency S.O.S. (S.O.S. function available on the large flashlight only).
- Durable Construction: Crafted from aircraft-grade aluminum for enhanced durability and weather resistance.
- Weather Resistant: Designed to withstand various environmental conditions.
Package Contents
- 1 x 500 Lumen LED Flashlight
- 1 x 240 Lumen LED Flashlight
- 2 x Wrist Straps
Note: Batteries are not included and must be purchased separately.
Setup: Battery Installation
Proper battery installation is crucial for the functionality of your flashlights. Please follow these steps:
- Unscrew the tail cap of the flashlight by turning it counter-clockwise.
- For the 500 Lumen Flashlight, insert three (3) C-size alkaline batteries.
- For the 240 Lumen Flashlight, insert three (3) AAA-size alkaline batteries.
- Ensure that the batteries are inserted with the correct polarity (+/-) as indicated inside the battery compartment. Incorrect polarity can prevent the flashlight from working.
- Screw the tail cap back on clockwise until it is securely tightened.

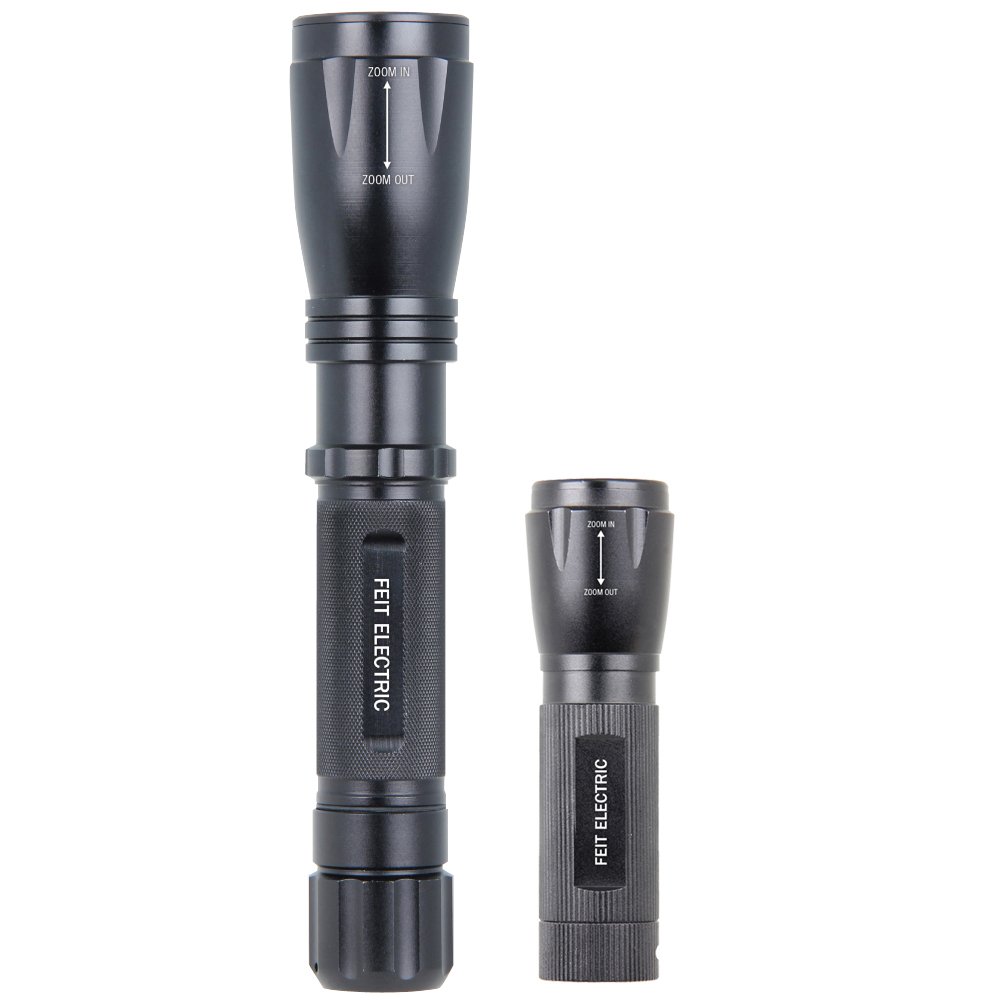

Image: The Feit Electric LED Flashlight Combo Pack. This image illustrates both the 500 lumen and 240 lumen flashlights, highlighting their respective lumen outputs, zoom functionality, and battery requirements (3 C batteries for the large flashlight, 3 AAA batteries for the small flashlight, not included). Wrist straps are also shown as included accessories.
Operation
Power On/Off and Mode Selection
To operate the flashlight, use the power button located on the tail cap:
- Press the power button once to turn the flashlight ON in High Beam mode.
- Press the power button again (within a few seconds) to cycle through the modes: Low Beam, Strobe Light, and Emergency S.O.S.
- To turn the flashlight OFF, press the power button after cycling through all modes, or if the flashlight has been on a single mode for several seconds, a single press will turn it off.
- Note: The Emergency S.O.S. function is available only on the 500 Lumen (large) flashlight.
Sliding Zoom Function
Both flashlights feature a sliding zoom mechanism to adjust the beam focus:
- Zoom In (for distance): Slide the flashlight head forward to narrow the beam, concentrating the light for long-distance illumination.
- Zoom Out (to fill area): Slide the flashlight head backward to widen the beam, providing a broad floodlight to illuminate a larger area.
Image: A visual representation of the sliding zoom feature on the Feit Electric flashlights. The image depicts how sliding the flashlight head forward achieves a 'Zoom In' effect for a focused, long-distance beam, while sliding it backward results in a 'Zoom Out' effect for a wider area illumination.
Maintenance
- Cleaning: Wipe the flashlight body with a soft, damp cloth. Do not use abrasive cleaners or solvents.
- Battery Replacement: Replace batteries when the light output diminishes. Always replace all batteries at the same time with new ones of the same type and brand.
- Storage: If the flashlight will not be used for an extended period, remove the batteries to prevent leakage and corrosion. Store in a cool, dry place.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Flashlight does not turn on. | Dead or low batteries. | Replace with fresh batteries. |
| Flashlight does not turn on. | Incorrect battery polarity. | Ensure batteries are inserted with correct +/- orientation. |
| Flashlight does not turn on. | Loose tail cap. | Tighten the tail cap securely. |
| Light output is dim. | Low batteries. | Replace with fresh batteries. |
Specifications
| Feature | 500 Lumen Flashlight | 240 Lumen Flashlight |
|---|---|---|
| High Beam Intensity | 500 Lumens | 240 Lumens |
| Low Beam Intensity | 160 Lumens | 70 Lumens |
| High Beam Run Time | 5 Hours | 7 Hours |
| Low Beam Run Time | 44 Hours | 10 Hours |
| Beam Range | 265 meters | Not specified |
| Impact Resistance | 1 meter | Not specified |
| Water Resistance | Yes | Yes |
| Battery Type | 3 x C Alkaline | 3 x AAA Alkaline |
| Material | Aircraft Grade Aluminum | |
| Light Source | LED | |
| Model Number | 72333 | |
Note: Specifications are based on tests using alkaline batteries.
Warranty and Support
Feit Electric products are manufactured to high-quality standards. For warranty information, technical support, or customer service inquiries, please refer to the contact information provided on the product packaging or visit the official Feit Electric website. Please retain your proof of purchase for warranty claims.
