1. Introduction and Overview
This manual provides essential information for the safe and effective use of your Xprite Red&Blue LED Beacon Light with Magnetic Base. This high-intensity LED beacon light is designed to provide 360-degree visibility for various vehicles and applications, enhancing safety and awareness in diverse conditions.
Figure 1: Xprite Red&Blue LED Beacon Light with Magnetic Base
2. Safety Information
- Ensure the product is connected to a 12 Volt DC power source only.
- Mount the light securely to prevent detachment during vehicle operation.
- Verify local regulations regarding the use of emergency and warning lights on vehicles.
- Do not stare directly into the LED lights, as this may cause temporary vision impairment.
- Keep the power cord away from hot surfaces and moving parts.
3. Package Contents
The package includes the following items:
- 1 x High Intensity 12 LED 6W LED Emergency Vehicle Magnetic Mount Strobe and Rotating Beacon Warning Light
- 1 x Dust Cover (Installed)
4. Product Features
- 360 Degrees with High Intensity: Features 12 high-intensity LEDs with a low polycarbonate dome, providing 360 degrees of coverage for enhanced visibility day and night. Designed for a lifespan of up to 50,000 hours.
- 2 Strobe Patterns and Switch: Offers two selectable flash patterns: 1. Strobe; 2. 360 Degree Rotates Counter-Clockwise Pattern. A convenient power switch turns the unit on and off, and a second switch changes patterns.
- Double Protection Design & Weather-Proof: The base is constructed from strong ABS plastic, protecting internal components from external elements. Weatherproof design is suitable for exterior mounting. Includes a dust cover for easy maintenance.
- Easy Installation: Simply mounts magnetically to any metal roof surface. Connects via a 10-foot straight power cord to any 12V cigarette adapter.
- Universal Application: Ideal for use in foggy, rainy, or snowy conditions, and for emergency workers, snow plows, trucks, tractors, construction vehicles, and similar applications.

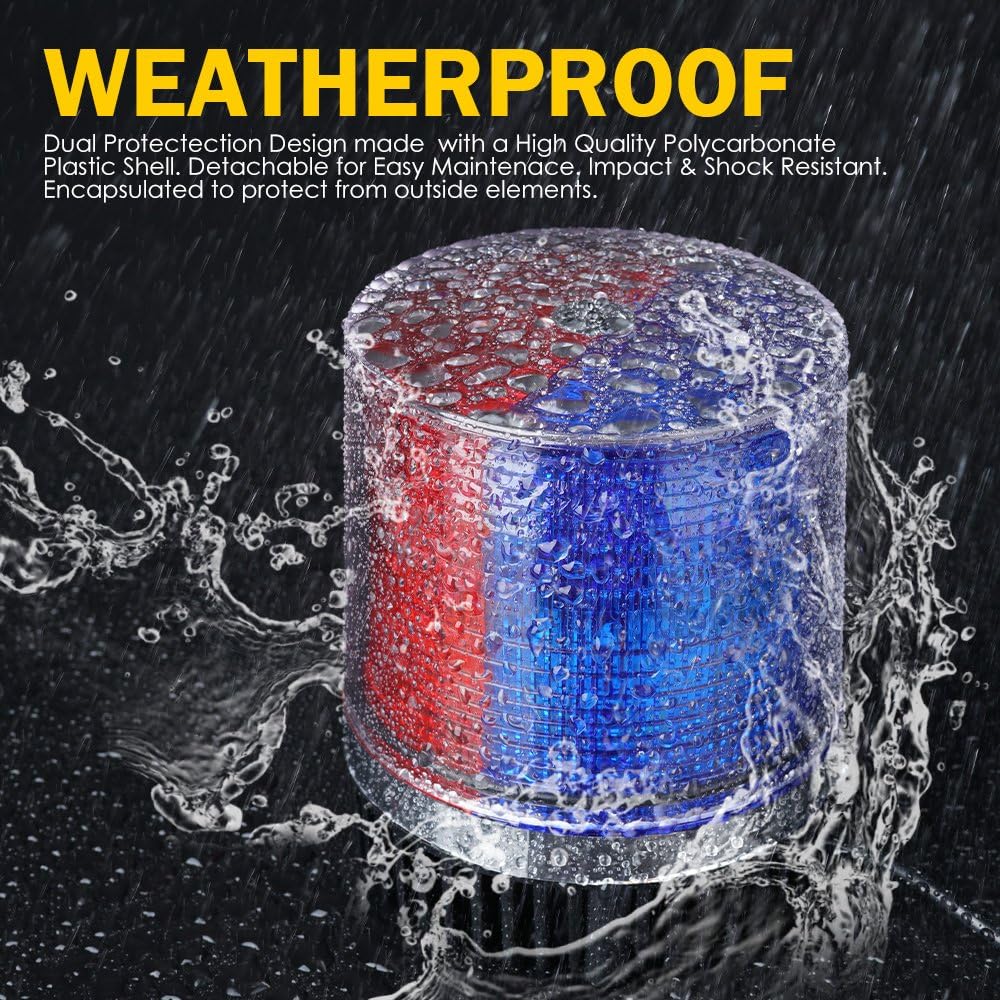

Figure 2: Weatherproof Design
Figure 3: Key Product Features
5. Specifications
| Attribute | Value |
|---|---|
| Brand | Xprite |
| Color | Red Blue |
| Specific Uses For Product | Strobe Lights |
| Vehicle Service Type | ATV, Car, Truck, UTV |
| Special Feature | Waterproof |
| Wattage | 15 watts |
| Auto Part Position | Top |
| Lens Color | Clear |
| Item dimensions L x W x H | 3.75 x 3.75 x 4.45 inches |
| Item Weight | 1.17 pounds |
| Model Number | 51073C-RB |

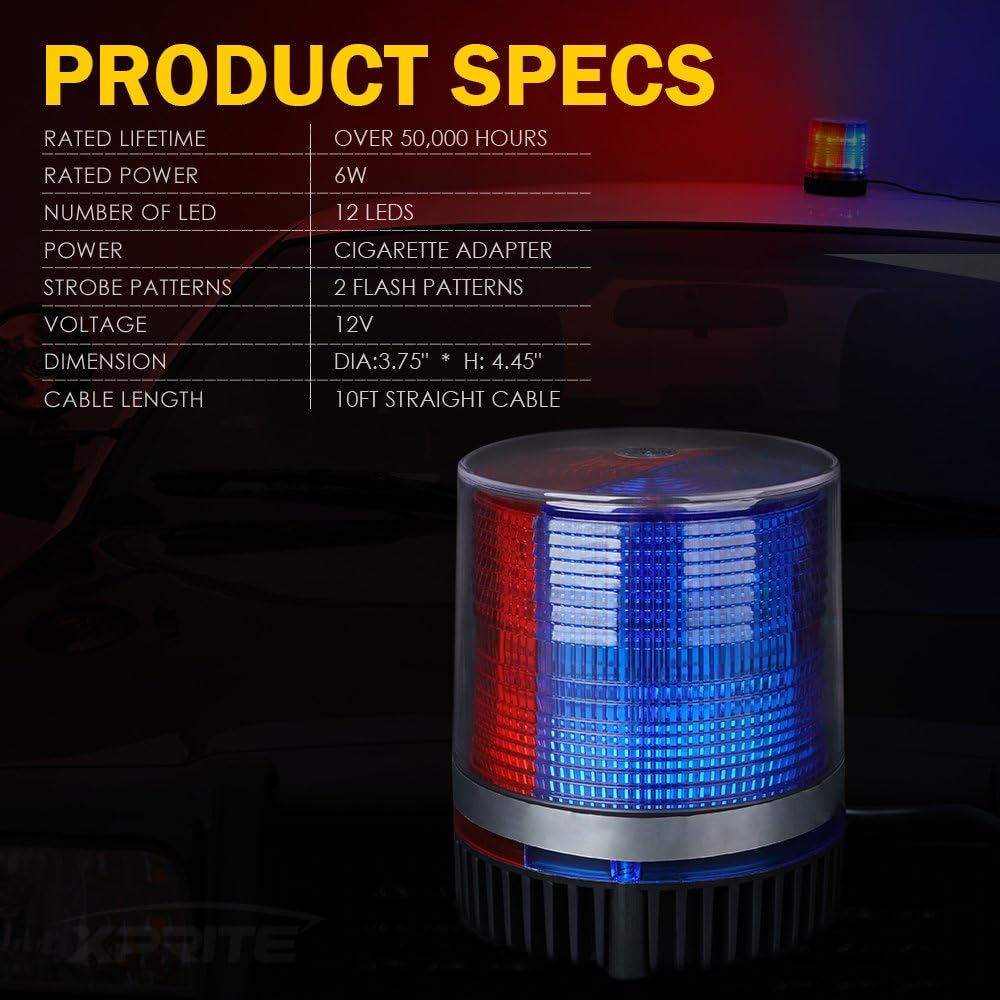

Figure 4: Detailed Product Specifications
6. Setup and Installation
The Xprite LED Beacon Light is designed for quick and easy installation.
- Choose a Mounting Location: Select a flat, metallic surface on your vehicle's roof for optimal magnetic adhesion. Ensure the surface is clean and dry.
- Secure the Light: Place the magnetic base of the beacon light firmly onto the chosen metallic surface. The strong magnets will hold it in place.
- Connect to Power: Route the 10-foot straight power cord into your vehicle's cabin. Plug the cigarette lighter adapter into your vehicle's 12V DC power outlet.

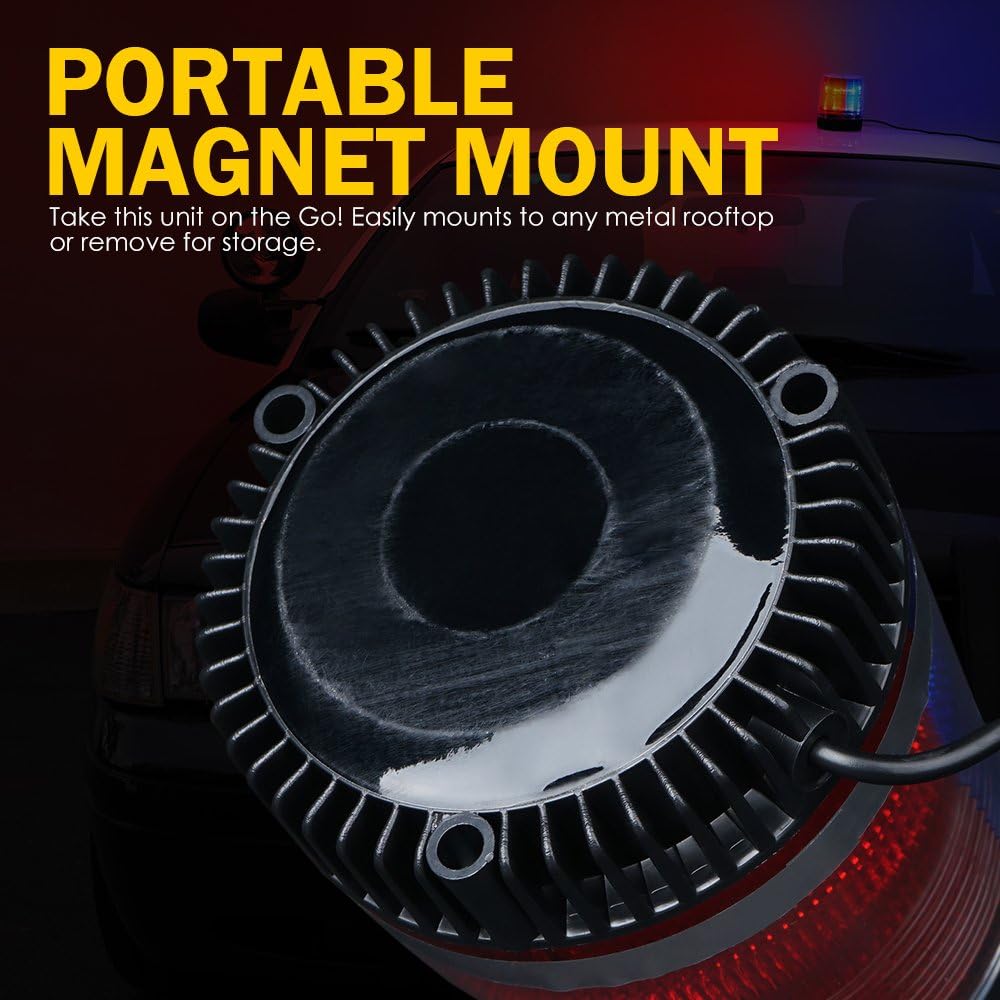

Figure 5: Portable Magnet Mount
Video 1: Xprite LED Beacon Light Demonstration. This video showcases the light's features and operation, including its magnetic mounting and various flash patterns.
7. Operating Instructions
Once installed and powered, operate the beacon light using the integrated switches on the cigarette lighter adapter.
- Power On/Off: Use the main toggle switch on the cigarette lighter adapter to turn the light ON or OFF.
- Change Flash Patterns: Use the secondary button on the cigarette lighter adapter to cycle through the available flash patterns. The light offers two distinct patterns: Strobe and 360-degree Rotating (Counter-Clockwise).
- Memory Recall: The unit features a memory recall function, which means it will power on in the last selected flash pattern.
Video 2: Red Blue LED Beacon Light in action. This video demonstrates the visual output of the red and blue LED beacon light.
8. Maintenance
- Regularly inspect the power cord for any signs of wear or damage.
- Keep the magnetic base clean to ensure strong adhesion to the vehicle surface.
- Wipe the polycarbonate dome with a soft, damp cloth to remove dirt and maintain optimal light output. Avoid abrasive cleaners.
- Ensure the dust cover is properly seated to protect internal components.
9. Troubleshooting
- Light does not turn on: Check if the cigarette lighter adapter is fully inserted into the 12V outlet. Ensure the vehicle's 12V outlet is receiving power. Verify the ON/OFF switch on the adapter is in the 'ON' position.
- Light is dim or flickers: Check for loose connections in the power cord or adapter. Ensure the vehicle's battery voltage is sufficient.
- Light detaches from vehicle: Ensure the mounting surface is clean, dry, and metallic. Re-position the light to a flatter surface if necessary.
10. Warranty and Support
For warranty information, technical support, or any product-related inquiries, please refer to the manufacturer's official website or contact their customer service department. Keep your purchase receipt for warranty claims.
