Meister Contour Gauge - 130 mm Working Width
Model: 6208900
Brand: Meister
Introduction
The Meister Contour Gauge is a practical tool designed for precise duplication and transfer of irregular shapes and profiles. It is an indispensable aid for various tasks in workshops, homes, and for hobbyists, particularly useful for floor laying, carpentry, and joinery. This manual provides detailed instructions on how to use and maintain your contour gauge to ensure optimal performance and longevity.

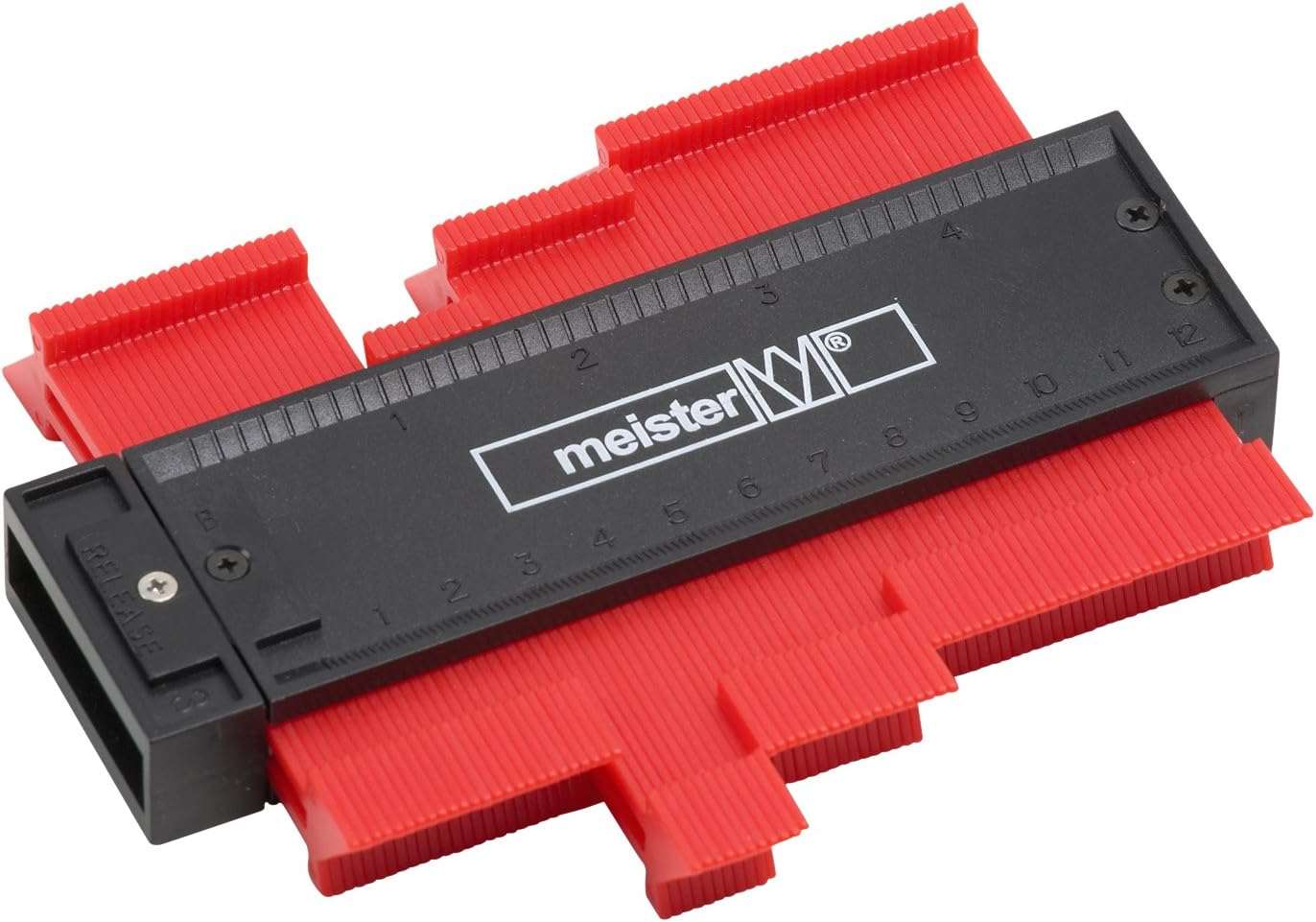

Figure 1: The Meister Contour Gauge, featuring a black main body with a ruler scale and red, movable pins for contour duplication. The "Meister" logo is visible on the body.
Safety Information
Please read and understand all safety information before using the Meister Contour Gauge. Proper use ensures safety and extends the life of the tool.
- Keep the tool clean and free from debris to ensure smooth operation of the pins.
- Store the contour gauge in a dry place to prevent material degradation.
- Avoid applying excessive force when pressing the gauge against an object, as this may damage the pins or the object.
- Keep out of reach of children.
Product Overview
The Meister Contour Gauge consists of the following main components:
- Main Body: The black housing that holds the pins and features a measurement scale.
- Sensing Pins (Lamellae): The red, movable pins that conform to the shape of the object.
- Measurement Scale: Located on the main body, providing measurements in millimeters and inches.
- Magnetic Holders: Integrated magnets for secure attachment to metallic surfaces (if applicable to the specific model).
Setup
The Meister Contour Gauge requires minimal setup before use. Ensure the pins are clean and move freely.
- Unpack the contour gauge from its packaging.
- Inspect the pins to ensure none are bent or damaged. If any pins are stiff, gently move them back and forth to loosen.
- The gauge is ready for immediate use. No assembly is required.
Operating Instructions
Follow these steps to accurately duplicate and transfer contours:
- Positioning: Place the Meister Contour Gauge against the object whose profile you wish to duplicate. Ensure the pins are perpendicular to the surface of the object.
- Pressing: Gently but firmly press the contour gauge against the object. The individual pins will retract and conform precisely to the shape of the object.
- Removing: Once the pins have fully conformed to the shape, carefully remove the contour gauge from the object. Avoid disturbing the pins to maintain the duplicated profile.
- Transferring: Place the contour gauge onto the material where you want to transfer the shape (e.g., wood, laminate, tile). Use a pencil or marker to trace the outline formed by the pins onto the material.
- Cutting: Cut the material along the traced line. The precise duplication ensures an accurate fit.
For complex shapes or longer profiles, multiple applications of the contour gauge may be necessary. The gauge can be flexibly extended if required by combining multiple units (requires compatible models).
Maintenance
Regular maintenance ensures the longevity and accuracy of your Meister Contour Gauge.
- Cleaning: After each use, wipe the pins and the main body with a dry, soft cloth to remove dust, dirt, or debris. If necessary, a slightly damp cloth can be used, but ensure the tool is completely dry before storage.
- Storage: Store the contour gauge in a clean, dry environment, away from direct sunlight and extreme temperatures.
- Inspection: Periodically inspect the pins for any signs of bending, damage, or stiffness. Ensure they move freely within the housing.
Troubleshooting
If you encounter any issues with your Meister Contour Gauge, refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Pins do not move freely. | Dirt or debris lodged between pins; pins are bent. | Clean the pins thoroughly. Gently straighten any bent pins. If severely damaged, replacement may be necessary (contact support). |
| Inaccurate contour duplication. | Not enough pressure applied; pins not perpendicular to surface; pins are dirty. | Apply firm, even pressure. Ensure the gauge is held perpendicular. Clean the pins. |
| Difficulty tracing the contour. | Pins are too loose (not applicable for this model without fixation); tracing tool too wide. | Ensure the pins are not disturbed after removal. Use a fine-tipped pencil or marker for tracing. |
Specifications
| Feature | Detail |
|---|---|
| Model Number | 6208900 |
| Working Width | 130 mm |
| Number of Pins | 95 |
| Material | ABS Plastic (Acrylonitrile Butadiene Styrene) |
| Color | Black / Red |
| Product Dimensions (L x W x H) | 15.5 x 10.5 x 2.5 cm |
| Item Weight | 200 g |
| Measurement Scale | Millimeters and Inches |
| Magnetic Holders | Integrated |
Warranty and Support
Meister products are manufactured to high quality standards. For information regarding warranty terms and conditions, please refer to the documentation included with your purchase or visit the official Meister website. For technical support, replacement parts, or any other inquiries, please contact Meister customer service.
Manufacturer: MEISTER Werkzeuge GmbH
