FAR 315mm Diameter Glass Tray - Model 46348 Instruction Manual

Introduction

This manual provides essential information for the installation, use, and maintenance of the FAR 315mm Diameter Glass Tray, model 46348. This product is designed as a replacement turntable plate for compatible microwave ovens. Please read these instructions carefully before use to ensure proper function and safety.

Product Overview

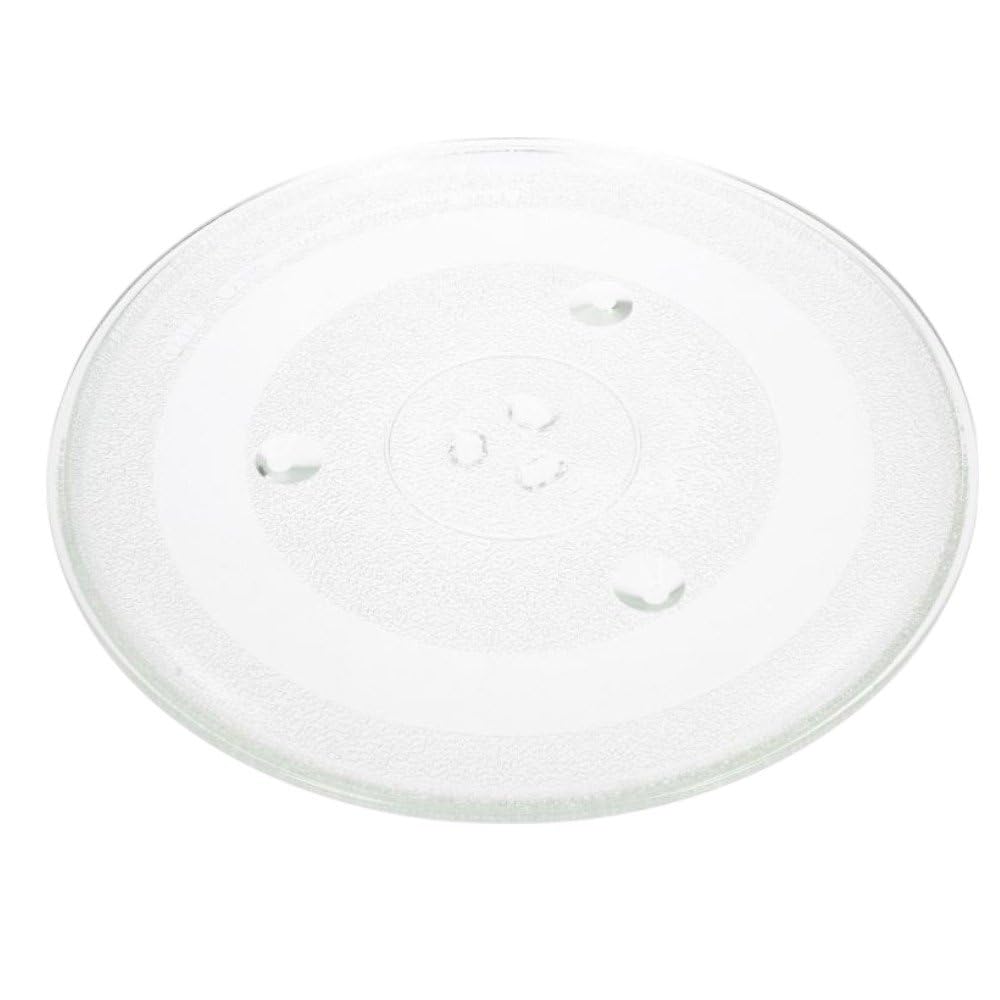

Image 1: Top view of the FAR 315mm diameter glass tray, showing the central hub and three indentations for the turntable support.

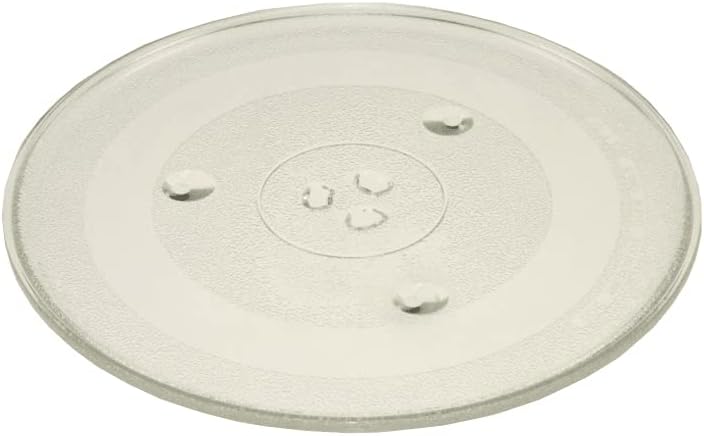

Image 2: Angled view of the FAR 315mm diameter glass tray, highlighting its transparent glass material and circular shape.

Compatibility

The FAR 315mm Diameter Glass Tray (Model 46348) is designed as a replacement part for various microwave oven models. To ensure proper fit and function, it is essential to verify compatibility with your specific appliance.

This tray is compatible with microwave ovens from the following brands:

• BAUMATIC
• BEKO
• BLUESKY
• CANDY
• CARREFOUR HOME
• CONTINENTAL EDISON
• DOMO
• ESSENTIEL B
• FAR
• FIRST LINE
• GALANZ
• LG GOLDSTAR
• LISTO
• MICROLOGIC
• NEFF
• PANASONIC
• PROLINE
• SABA
• SAMSUNG
• SELECLINE
• SHARP
• SIEMENS
• VIVA B/S/H

For a comprehensive list of compatible models or to confirm compatibility with your specific microwave oven, please refer to your appliance's user manual or contact customer support. Some examples of compatible models include: HMT82G660 (FAR), NNK655 (Panasonic), H56W20N006 (Neff), R742(IN)W (Sharp).

Setup and Installation

Follow these steps to correctly install your new glass tray:

1. Ensure your microwave oven is unplugged from the power outlet before beginning installation.
2. Carefully remove the old or broken glass tray and any turntable support ring from the microwave cavity.
3. Clean the microwave cavity, especially the central hub and the area where the turntable support ring rests, to ensure no debris interferes with rotation.
4. Place the turntable support ring (if applicable, usually not included with the glass tray) back into the microwave cavity, ensuring it sits correctly on its designated track.
5. Position the new FAR 315mm Diameter Glass Tray onto the turntable support ring, aligning the central indentations on the underside of the tray with the rotating coupler in the center of the microwave.
6. Gently rotate the tray to ensure it sits securely and can turn freely.
7. Plug the microwave oven back into the power outlet.

Operating Instructions

Once installed, the glass tray operates automatically with your microwave oven. Observe the following guidelines for optimal use:

• Always place food containers centrally on the glass tray for even heating.
• Do not operate the microwave without the glass tray and turntable support in place, as this can damage the appliance.
• Avoid placing excessively heavy items on the tray.
• Ensure the tray is clean and free of obstructions to allow smooth rotation.

Maintenance and Cleaning

Regular cleaning of the glass tray is essential for hygiene and optimal performance:

• Remove the glass tray from the microwave oven.
• Wash the tray with warm, soapy water using a soft sponge or cloth.
• For stubborn food residues, allow the tray to soak in warm, soapy water before cleaning.
• The glass tray is typically dishwasher-safe; refer to your microwave oven's manual for specific care instructions.
• Rinse thoroughly and dry completely before placing it back into the microwave.
• Periodically check the turntable support ring and the microwave cavity for food spills and clean as necessary.

Troubleshooting

Tray Not Rotating

• Check Placement: Ensure the glass tray is correctly seated on the turntable support ring and the central coupler.
• Obstructions: Remove any food debris or foreign objects that might be blocking the rotation mechanism or the support ring.
• Support Ring: Verify that the turntable support ring is clean and properly positioned.
• Coupler: Inspect the central rotating coupler for damage or obstructions. If damaged, it may need replacement.

Tray Appears Damaged

• Cracks or Chips: If the glass tray has cracks, chips, or any other damage, discontinue use immediately and replace it to prevent further breakage or safety hazards.

Specifications

Customer Support

For further assistance, compatibility inquiries, or troubleshooting not covered in this manual, please contact the customer service of your appliance retailer or the manufacturer. Always refer to your microwave oven's original user manual for specific instructions related to your appliance model.
