Magimix Compact 3200 XL Food Processor Instruction Manual

1. Important Safety Instructions

Please read all instructions carefully before using your Magimix Compact 3200 XL Food Processor. Keep this manual for future reference.

• Always ensure the appliance is unplugged before assembling, disassembling, or cleaning.
• Do not immerse the motor unit in water or any other liquid. Wipe with a damp cloth.
• Keep hands and utensils away from moving blades or discs while processing food to prevent serious injury.
• Ensure the lid is securely locked in place before operating the appliance.
• Do not use attachments or accessories not recommended or sold by Magimix.
• Supervise children closely when the appliance is in use.
• Avoid contact with moving parts.
• Do not operate any appliance with a damaged cord or plug, or after the appliance malfunctions or has been dropped or damaged in any manner.

2. Product Overview

The Magimix Compact 3200 XL is a versatile food processor designed for various kitchen tasks, including chopping, emulsifying, and blending. It features a powerful 650W motor and a unique three-bowl system for processing different quantities of ingredients efficiently.

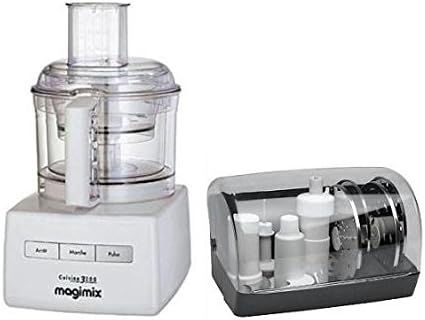

Figure 1: Magimix Compact 3200 XL Food Processor. This image displays the Magimix Compact 3200 XL Food Processor. On the left is the main motor unit with a large transparent bowl, lid, and feed tube attached. The control panel shows buttons labeled 'Arrete', 'Marche', and 'Pulse'. On the right is a clear accessory storage box containing various blades and discs.

Key Components:

• Motor Unit: The base containing the 650W motor.
• Main Bowl (2.6 Liters): For large quantities and general processing.
• Medium Bowl: Sits inside the main bowl for smaller tasks.
• Mini Bowl: For very small quantities, such as herbs or single cloves of garlic.
• Lid with Feed Tube and Pusher: Secures the bowls and allows ingredients to be added during operation.
• Blades and Discs: Various attachments for chopping, slicing, grating, and emulsifying.
• Control Panel: Buttons for 'Arrete' (Stop), 'Marche' (Run), and 'Pulse'.

3. Setup and Assembly

1. Unpacking: Carefully remove all components from the packaging. Retain packaging for storage or transport.
2. Cleaning: Before first use, wash all removable parts (bowls, lid, blades, discs) in warm soapy water. Rinse thoroughly and dry. Wipe the motor unit with a damp cloth.
3. Motor Unit Placement: Place the motor unit on a stable, flat, and dry surface. Ensure it is unplugged from the power outlet.
4. Bowl Assembly:
   • Place the main bowl onto the motor unit, aligning the handle with the safety interlock. Turn clockwise until it locks into place.
   • If using the medium or mini bowl, place it inside the main bowl, ensuring it sits correctly.
5. Attachment Placement: Select the appropriate blade or disc for your task. Carefully place it onto the central spindle inside the bowl.
6. Lid Placement: Place the lid onto the bowl, aligning the feed tube with the bowl handle. Turn clockwise until it locks securely. The appliance will not operate unless the lid is correctly locked.

4. Operating Instructions

The Magimix Compact 3200 XL features simple controls for efficient operation.

Control Panel:

• Arrete (Stop): Stops the motor.
• Marche (Run): Starts continuous operation.
• Pulse: Provides short bursts of power for precise control, ideal for chopping or mixing. Hold down for desired duration.

General Operation:

1. Ensure the appliance is correctly assembled and locked.
2. Add ingredients to the bowl. For solid ingredients, use the feed tube and pusher. Do not overfill the bowl.
3. Plug the appliance into a suitable power outlet.
4. Press 'Marche' for continuous processing or 'Pulse' for intermittent operation.
5. Once processing is complete, press 'Arrete' and unplug the appliance.
6. Wait for the blade or disc to stop completely before removing the lid and then the bowl.

Capacity Guidelines:

• Pastry: Up to 1 kg
• Cream: Up to 1 liter
• Dough: Up to 600 g
• Carrots: Up to 800 g
• Brioche Dough: Up to 500 g
• Egg Whites: Up to 5
• Minced Meat: Up to 750 g

5. Cleaning and Maintenance

Proper cleaning and maintenance will ensure the longevity and optimal performance of your Magimix food processor.

1. Unplug: Always unplug the appliance from the power outlet before cleaning.
2. Disassemble: Carefully remove the lid, blades/discs, and bowls from the motor unit.
3. Hand Wash: All removable parts (bowls, lid, blades, discs) should be hand washed in warm, soapy water. Use a brush for hard-to-reach areas. Product Care Instructions: Hand Wash.
4. Rinse and Dry: Rinse all parts thoroughly with clean water and dry immediately to prevent water spots or corrosion.
5. Motor Unit: Wipe the motor unit with a damp cloth. Do not immerse it in water or place it under running water.
6. Storage: Store the food processor and its accessories in a dry place. The accessory storage box (as shown in Figure 1) is ideal for keeping blades and discs organized and safe.

Caution: Blades are very sharp. Handle with extreme care during cleaning and storage.

6. Troubleshooting

If you encounter issues with your Magimix Compact 3200 XL, refer to the following common problems and solutions:

• Appliance does not start:
  • Ensure the power cord is securely plugged into a working outlet.
  • Verify that the bowl and lid are correctly assembled and locked into place. The safety interlock prevents operation if not properly secured.
• Motor seems to struggle or stops:
  • You may have overloaded the bowl. Reduce the quantity of ingredients.
  • Ensure ingredients are cut into appropriate sizes before processing.
  • Check if the blade or disc is jammed by a large piece of food. Unplug, disassemble, clear the obstruction, and reassemble.
• Food is not processed evenly:
  • Use the 'Pulse' function for better control over chopping and mixing.
  • Ensure the correct blade or disc is used for the specific task.
  • Process ingredients in smaller batches if necessary.

If the problem persists after trying these solutions, please contact Magimix customer support.

7. Specifications

8. Warranty and Support

Your Magimix Compact 3200 XL Food Processor comes with a robust warranty to ensure peace of mind.

• Motor Guarantee: The motor is covered by a 30-year guarantee, reflecting Magimix's commitment to durability and quality.
• General Warranty: For specific details regarding the general warranty on parts and labor, please refer to the warranty card included with your product or visit the official Magimix website.

Customer Support:

For technical assistance, spare parts, or warranty claims, please contact Magimix customer support:

• Website: Visit the official Magimix website for FAQs, product registration, and contact information. (e.g., www.magimix.com/support)
• Phone: Refer to your product packaging or the Magimix website for regional contact numbers.

Please have your model number (3200 XL) and purchase date ready when contacting support.
