RACO #860 Series Blank Handy Box Cover Instruction Manual

1. Introduction

This manual provides essential information for the proper installation and maintenance of the RACO #860 Series Blank Handy Box Cover. This product is designed to securely close off unused openings on electrical handy boxes, ensuring safety and compliance with electrical codes. It is constructed from durable steel for long-lasting performance.

2. Safety Information

• Always disconnect power at the circuit breaker or fuse box before working on any electrical wiring or components. Failure to do so can result in serious injury or death.
• If you are unsure about any electrical procedure, consult a qualified electrician.
• Ensure all connections are secure and comply with local electrical codes.
• This cover is intended for use with standard handy boxes. Verify compatibility before installation.

3. Setup and Installation

The RACO #860 Series Blank Handy Box Cover is designed for straightforward installation. Follow these steps carefully:

1. Prepare the Handy Box: Ensure the electrical handy box is properly installed and secured to a wall stud or other suitable support. All wiring inside the box should be safely terminated or capped as required by code.
2. Position the Cover: Align the RACO #860 Series Blank Handy Box Cover over the opening of the handy box. The pre-drilled screw holes on the cover should align with the threaded mounting holes on the handy box.
3. Secure the Cover: Insert the provided screws into the aligned holes. Using a screwdriver, tighten the screws until the cover is firmly secured against the handy box. Do not overtighten, as this can strip the threads or deform the cover.
4. Verify Security: Gently attempt to move the cover to ensure it is securely fastened and there are no gaps between the cover and the handy box.

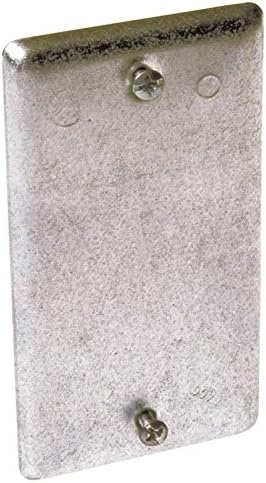

This image displays the RACO #860 Series Blank Handy Box Cover. It is a rectangular, silver-colored steel plate designed to cover an electrical handy box. The cover features two pre-drilled screw holes, one near the top center and one near the bottom center, each with an included screw for attachment.

4. Maintenance

The RACO #860 Series Blank Handy Box Cover requires minimal maintenance. Periodically inspect the cover for any signs of damage, corrosion, or loosening. If the cover becomes dirty, wipe it clean with a dry or slightly damp cloth. Do not use abrasive cleaners or solvents, as these may damage the finish.

5. Troubleshooting

• Cover does not fit: Ensure you have the correct size and type of cover for your handy box. The RACO #860 series is designed for standard handy boxes.
• Cover is loose: Check that the screws are properly tightened. If the screw holes in the handy box are stripped, alternative mounting solutions or box replacement may be necessary.
• Visible damage: If the cover is bent, rusted, or otherwise damaged, replace it immediately to maintain safety and integrity.

6. Specifications

7. Warranty and Support

For specific warranty information or technical support regarding the RACO #860 Series Blank Handy Box Cover, please refer to the official RACO website or contact Raco Incorporated directly. Warranty terms and conditions may vary.
