Molex 50802-9101 Contact User Manual

Product Overview

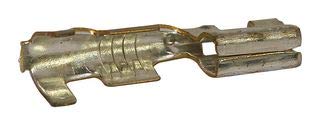

Image: A close-up view of the Molex 50802-9101 crimp socket contact, showing its metallic construction and design for wire termination.

The Molex 50802-9101 is a high-quality socket contact designed for reliable electrical connections. It is part of the Mini-Latch 50802 Series, engineered for crimp termination with 22AWG to 28AWG wires. This contact features tin-plated contacts for enhanced conductivity and corrosion resistance, ensuring long-term performance in various electronic applications.

Key Features:

• Contact Type: Socket
• Wire Size Compatibility: 22AWG to 28AWG
• Termination Type: Crimp
• Plating: Tin Plated Contacts
• Material: Copper
• RoHS Compliant: Yes

Specifications

Setup and Installation

Proper installation of the Molex 50802-9101 contact is crucial for reliable performance. This contact is designed for crimp termination with compatible wires and connectors.

Installation Steps:

1. Prepare the Wire: Strip approximately 3-4mm of insulation from the end of the wire (22AWG to 28AWG) to expose the conductor. Ensure the stripped length is appropriate for the contact's crimp barrel.
2. Select the Correct Tool: Use a high-quality crimping tool specifically designed for Molex Mini-Latch contacts or similar open-barrel crimps. Refer to the crimp tool manufacturer's instructions for proper die selection.
3. Position the Contact: Place the Molex 50802-9101 contact into the appropriate die cavity of the crimping tool. Ensure the contact is seated correctly and held securely.
4. Insert the Wire: Insert the stripped wire conductor into the wire barrel of the contact until the insulation butts against the insulation crimp. The conductor should be fully within the wire barrel.
5. Crimp the Contact: Close the crimping tool handles firmly until the crimp cycle is complete and the tool releases. This will crimp both the conductor and the insulation sections of the contact.
6. Inspect the Crimp: Visually inspect the crimped connection. The wire crimp should be tight and secure, with no loose strands. The insulation crimp should hold the wire insulation firmly without cutting through it. Perform a gentle pull test to ensure mechanical integrity.
7. Insert into Housing: Once crimped, insert the contact into its corresponding Molex Mini-Latch connector housing until it clicks into place, indicating it is fully seated and locked.

Note: Always refer to the specific Molex application tooling specifications for detailed crimping instructions and recommended tools.

Operating Principles

The Molex 50802-9101 contact functions as a critical component in an electrical circuit, providing a reliable and secure connection between a wire and a mating pin or header within a connector system.

• Electrical Conductivity: Once properly crimped to a wire and inserted into a compatible housing, the tin-plated copper contact ensures excellent electrical conductivity, minimizing resistance and signal loss.
• Secure Connection: The socket design mates securely with a corresponding pin, creating a robust mechanical and electrical connection that resists vibration and accidental disconnections.
• System Integration: These contacts are integral to creating modular and maintainable wiring harnesses and circuit board connections, allowing for easy assembly, disassembly, and modification of electronic systems.

Maintenance

Molex contacts are designed for long-term reliability with minimal maintenance. However, periodic inspection can help ensure continued optimal performance, especially in demanding environments.

• Visual Inspection: Periodically inspect crimped contacts and their mating connections for signs of corrosion, discoloration, or physical damage. Ensure contacts are fully seated within their housings.
• Cleaning (if necessary): If contacts are exposed to dust or contaminants, gently clean them using a lint-free cloth and a suitable electronic contact cleaner. Avoid abrasive materials.
• Environmental Considerations: Ensure the operating environment remains within the specified temperature and humidity ranges to prevent premature degradation of the contact plating or material.
• Avoid Stress: Do not apply excessive force or bend the contacts during handling or installation, as this can compromise their mechanical integrity and electrical performance.

Troubleshooting

If you experience issues with connectivity or signal integrity related to the Molex 50802-9101 contacts, consider the following troubleshooting steps:

• No Connectivity / Intermittent Connection:
  • Check Crimp Quality: Ensure the wire is properly crimped to the contact. A poor crimp can lead to high resistance or an open circuit. Re-crimp if necessary.
  • Verify Seating: Confirm that the contact is fully seated and locked into its connector housing. A partially inserted contact may not make proper electrical contact.
  • Inspect Mating Connector: Check the corresponding pin or header for damage, bending, or corrosion.
  • Wire Gauge: Ensure the correct wire gauge (22AWG-28AWG) was used for crimping.
• Physical Damage:
  • If the contact appears bent, corroded, or otherwise damaged, it should be replaced. Do not attempt to repair damaged contacts as this can compromise reliability.
• High Resistance:
  • This can be caused by a poor crimp, corrosion, or contamination. Clean contacts if necessary, or replace if corrosion is severe.

For complex issues, consult a qualified electronics technician or contact Molex technical support.

Warranty and Support

Molex products are manufactured to high standards of quality and reliability. For specific warranty information regarding the Molex 50802-9101 contact, please refer to the official Molex warranty policy available on their corporate website or contact their customer service department.

Manufacturer: Molex

For technical assistance, product documentation, or support, please visit the official Molex website or contact their global support team. Contact information can typically be found in the "Contact Us" section of their website.

Online Resources: www.molex.com
