Retrospec Ergonomic UrbanComfort Bike Grip User Manual

1. Introduction

The Retrospec UrbanComfort Ergonomic Bike Grips are designed to enhance your cycling experience by providing a comfortable and secure hold on your handlebars. Made from soft, flexible Kraton rubber, these grips are engineered to minimize stress and fatigue on hands, wrists, elbows, and shoulders during rides. Their shock-absorbent properties help reduce the impact of road vibrations, contributing to a more comfortable journey. The ergonomic design widens at the end of the handlebars to distribute pressure evenly across your palms.

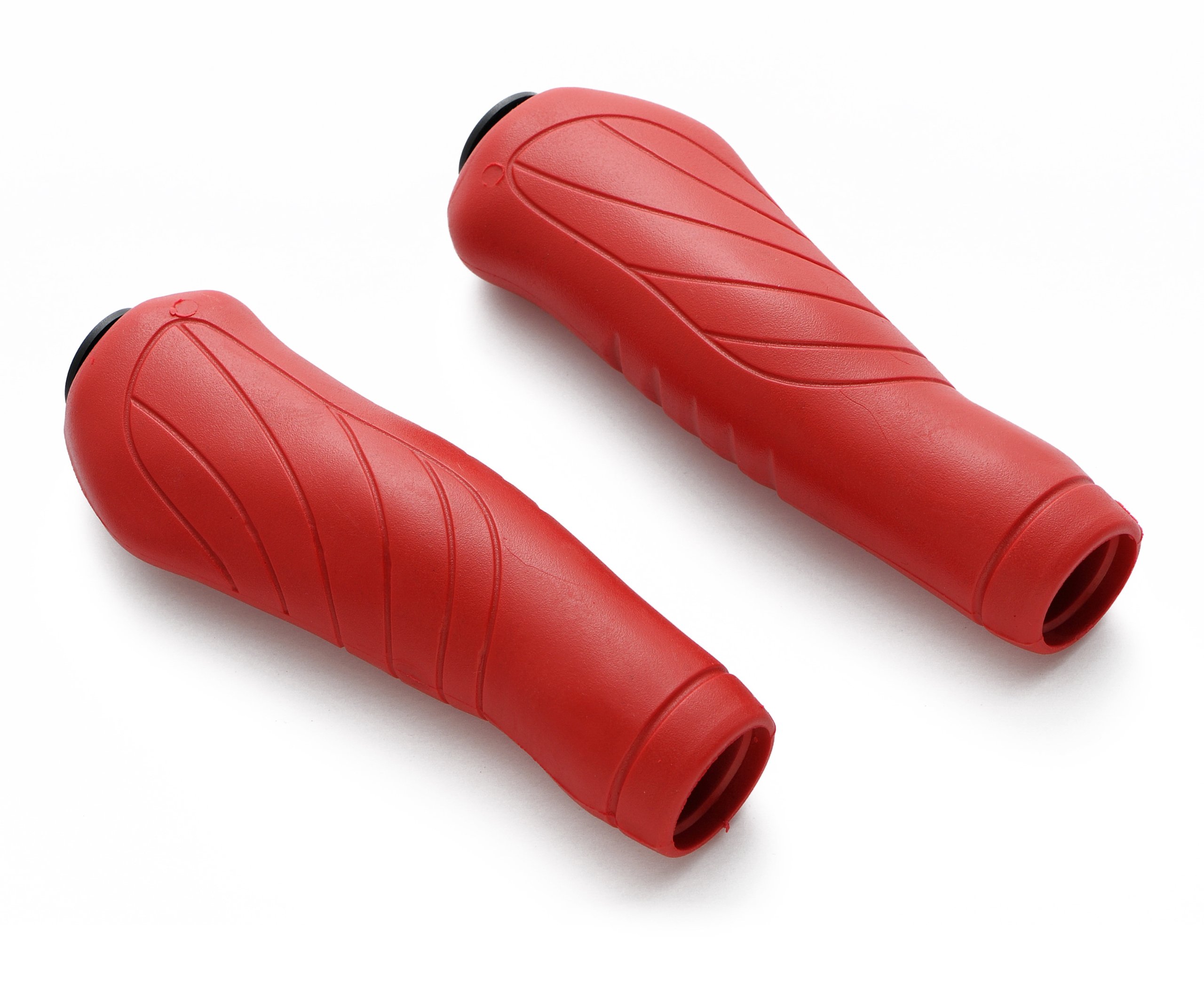

Image 1.1: Retrospec UrbanComfort Ergonomic Bike Grip. This image displays the red ergonomic grip from an angled top-down view, highlighting its contoured shape and textured pattern designed for hand comfort.

2. Safety Information

Always prioritize safety when installing and using bicycle components. Improper installation can lead to loss of control and injury. If you are unsure about any installation steps, consult a professional bicycle mechanic.

• Ensure grips are securely fastened to prevent rotation during use.
• Regularly inspect grips for wear, tears, or damage. Replace immediately if compromised.
• Keep hands clean and dry for optimal grip and control.
• Do not use petroleum-based lubricants for installation as they may degrade the rubber material.

3. Setup & Installation

3.1 Tools Required

• Rubbing alcohol or hairspray (for lubrication)
• Clean cloth
• Optional: Air compressor (for stubborn grips)

3.2 Installation Steps

1. Remove Old Grips: If replacing existing grips, carefully cut them off with a utility knife, taking care not to damage the handlebar. Clean the handlebar thoroughly to remove any residue.
2. Prepare Handlebar: Ensure the handlebar surface is clean and dry.
3. Apply Lubricant: Apply a small amount of rubbing alcohol or hairspray to the inside of the new grip and onto the handlebar end. This acts as a temporary lubricant and will evaporate, allowing the grip to adhere firmly. Do not use oil-based lubricants.
4. Slide Grips On: Firmly slide the Retrospec grip onto the handlebar. Twist and push until it is fully seated against any existing components (like shifters or brake levers).
5. Adjust Orientation: Once the grip is on, adjust its rotational position so that the wider, ergonomic palm support aligns comfortably with your hand's natural resting position when riding.
6. Allow to Dry: Allow the alcohol or hairspray to fully dry (typically 15-30 minutes) before riding. This ensures the grips are securely fixed and will not rotate during use.

Image 3.1: End view of the Retrospec UrbanComfort Ergonomic Bike Grip. This image shows the hollow end of the red grip, indicating where it slides onto the bicycle handlebar during installation.

4. Operating Instructions

Once installed, the Retrospec UrbanComfort grips are ready for use. Their ergonomic design is intended to provide maximum comfort and support during your rides.

• Hand Placement: Position your hands so that the wider, flattened section of the grip supports the heel of your palm. This distributes pressure more evenly and reduces strain on your wrists.
• Relaxed Grip: The ergonomic shape allows for a more relaxed grip on the handlebars, reducing the need to clench tightly, which can lead to hand fatigue.
• Shock Absorption: The Kraton rubber material naturally absorbs road vibrations, contributing to a smoother and more comfortable ride, especially on longer journeys or uneven surfaces.

5. Maintenance

Proper maintenance will extend the life and performance of your Retrospec UrbanComfort grips.

• Cleaning: Clean the grips regularly with a damp cloth and mild soap. Avoid harsh chemicals or abrasive cleaners, as these can damage the rubber material. Rinse thoroughly and allow to air dry.
• Inspection: Periodically inspect the grips for any signs of wear, cracking, or deterioration. Check for any looseness or rotation on the handlebar. If grips become loose, they may need to be re-secured using the installation steps.
• Storage: Store your bicycle in a cool, dry place away from direct sunlight to prevent premature aging or degradation of the rubber.

6. Troubleshooting

6.1 Grips are Slipping or Rotating

• Cause: Insufficient lubricant evaporation during installation, or improper lubricant used.
• Solution: Remove the grips, clean the handlebar and grip interior thoroughly. Reinstall using rubbing alcohol or hairspray as a lubricant, ensuring it fully dries before use.

6.2 Hand Discomfort or Numbness

• Cause: Incorrect grip orientation or improper hand placement.
• Solution: Adjust the rotational position of the grips so the ergonomic palm support aligns correctly with your hands. Ensure you are resting the heel of your palm on the wider section.

7. Specifications

8. Warranty & Support

For information regarding warranty coverage, product support, or to address any concerns not covered in this manual, please contact Retrospec customer service directly. Refer to the official Retrospec website or your purchase documentation for contact details.

Retrospec Official Website: Visit the Retrospec Store on Amazon
