Introduction
This manual provides detailed instructions for the proper installation, operation, and maintenance of your Jones Stephens D56406 3-1/2 inch PVC Spud with 6 inch Round Bronze Strainer. Please read these instructions carefully before beginning installation to ensure correct assembly and optimal performance. Retain this manual for future reference.
Product Overview
The Jones Stephens D56406 is a durable plumbing component designed for use in bathtub or sink drain assemblies. It features a 3-1/2 inch PVC spud and a 6 inch round bronze strainer with a Nickel Bronze finish, ensuring both functionality and aesthetic appeal. The strainer is removable for easy cleaning.

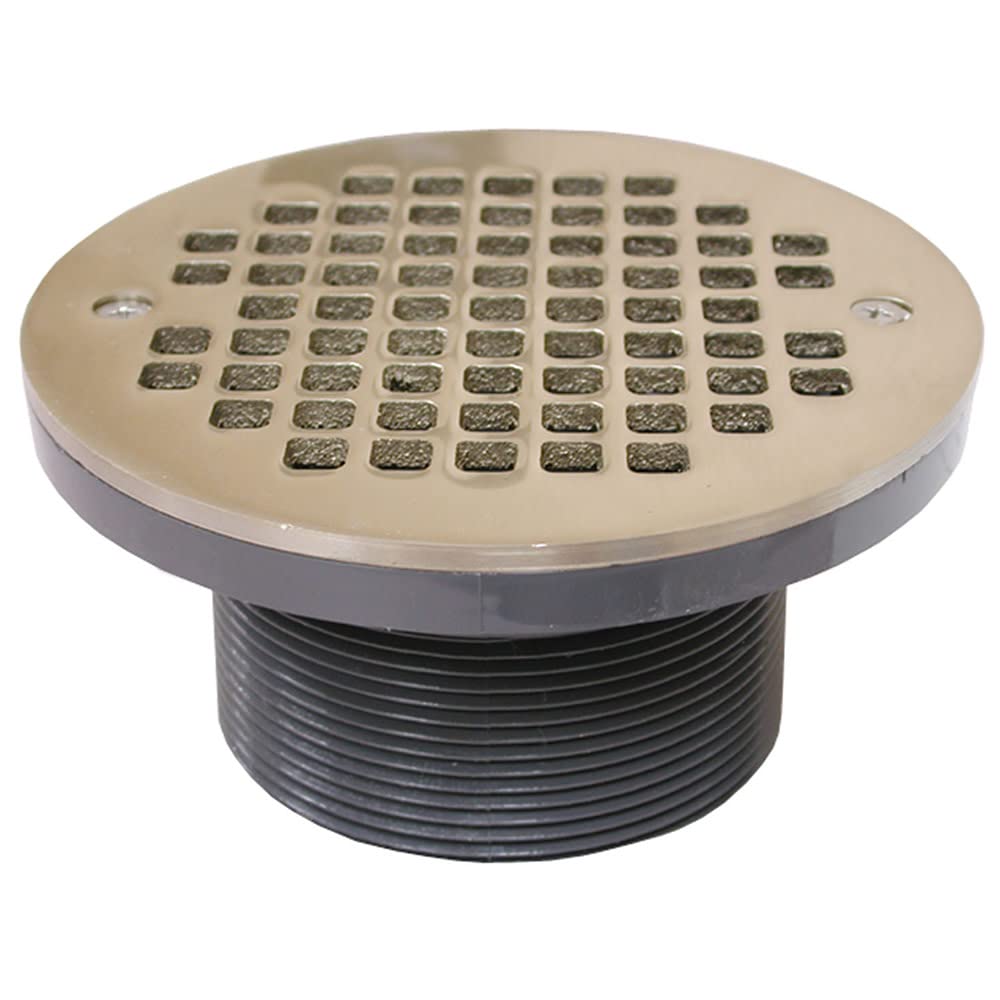

Figure 1: Jones Stephens D56406 3-1/2" PVC Spud with 6" Round Bronze Strainer. This image displays the complete assembly, including the PVC spud and the removable nickel bronze finished strainer.
Setup and Installation
Before starting, ensure you have all necessary tools and safety equipment. Professional installation is recommended if you are unfamiliar with plumbing procedures.
Required Tools and Materials (Not Included):
- Plumber's putty or silicone sealant
- Adjustable wrench or channel locks
- Screwdriver (if applicable for drain assembly)
- Rag or cloth
- Safety glasses
Installation Steps:
- Prepare the Drain Opening: Ensure the bathtub or sink drain opening is clean and free of old sealant or debris.
- Apply Sealant: Apply a generous bead of plumber's putty or silicone sealant around the underside rim of the bronze strainer.
- Position the Strainer: Place the bronze strainer into the drain opening from the inside of the tub/sink, pressing firmly to create a seal.
- Install the PVC Spud: From underneath the tub/sink, thread the PVC spud onto the bottom of the strainer assembly. Hand-tighten first.
- Tighten Securely: Use an adjustable wrench or channel locks to carefully tighten the PVC spud. Do not overtighten, as this can damage the PVC or the tub/sink. Ensure the strainer is flush with the tub/sink surface and the sealant is compressed.
- Connect Plumbing: Attach the rest of your drain plumbing (e.g., P-trap, overflow assembly) to the PVC spud according to standard plumbing practices.
- Test for Leaks: Fill the tub/sink with water and check for any leaks around the strainer and spud connections. Tighten further if necessary, but avoid overtightening.
Operating Instructions
The Jones Stephens D56406 strainer functions as a standard drain component, allowing water to pass through while preventing larger debris from entering the plumbing system. The strainer is designed to be removable for cleaning purposes.
Using the Strainer:
- Water will drain through the perforations in the bronze strainer.
- Periodically check the strainer for accumulated hair or debris.
- To remove the strainer for cleaning, simply lift it out of the drain opening.
Maintenance and Care
Regular maintenance will prolong the life and appearance of your Jones Stephens D56406 strainer.
Cleaning the Strainer:
- Remove Debris: Lift the removable bronze strainer from the drain opening.
- Clean: Remove any hair, soap scum, or other debris caught in the strainer. You may use a small brush or paper towel.
- Wash: Rinse the strainer under running water. For stubborn residue, use a mild soap and a soft cloth. Avoid abrasive cleaners or scouring pads, as these can damage the Nickel Bronze finish.
- Reinstall: Place the clean strainer back into the drain opening.
General Care:
- Avoid using harsh chemical drain cleaners directly on the strainer, as they may affect the finish.
- Wipe the visible parts of the strainer with a soft, damp cloth regularly to maintain its luster.
Troubleshooting
If you encounter issues with your Jones Stephens D56406, refer to the following common problems and solutions.
| Problem | Possible Cause | Solution |
|---|---|---|
| Slow Draining | Accumulation of hair or debris in the strainer or further down the drainpipe. | Remove and clean the strainer. If the problem persists, the clog may be further down the drain and require professional attention or a drain snake. |
| Water Leaking Around Strainer | Improperly sealed or loose connection between the strainer and the tub/sink, or between the spud and the strainer. | Ensure the spud is tightened securely (do not overtighten). If necessary, remove the strainer, clean old sealant, reapply plumber's putty or silicone, and reinstall. |
| Strainer Finish Discoloration | Exposure to harsh chemicals or abrasive cleaning agents. | Use only mild soap and a soft cloth for cleaning. Avoid abrasive materials or strong chemical cleaners. Discoloration from harsh chemicals may be permanent. |
Specifications
| Feature | Detail |
|---|---|
| Model Number | D56406 |
| Brand | Jones Stephens |
| Strainer Diameter | 6 inches (Round) |
| Spud Size | 3-1/2 inches |
| Spud Material | PVC (Plastic) |
| Strainer Material | Bronze |
| Finish Type | Nickel Bronze |
| Special Feature | Removable Strainer |
| Item Weight | 0.65 Pounds |
| UPC | 717510564068 |
Warranty and Support
For warranty information or technical support regarding your Jones Stephens D56406 product, please refer to the official Jones Stephens website or contact their customer service directly. Keep your purchase receipt as proof of purchase.
