Introduction
This manual provides detailed instructions for the installation, operation, and maintenance of your FibroPool 1.5-inch 3-Way Diverter Valve, Model TRTD0822. This valve is designed for use in pool and spa plumbing systems to divert, shut off, or mix water flow. It features a durable, single-piece body with a rotary stem and sealing unit, and a self-locking handle for precise control.
Safety Information
- Always wear appropriate personal protective equipment (PPE) such as safety glasses and gloves when handling plumbing materials and adhesives.
- Ensure all power to pumps and other electrical equipment is turned off and disconnected before beginning any installation or maintenance work on your pool or spa plumbing system.
- Follow all local plumbing codes and regulations during installation.
- Keep all chemicals, including PVC cement and primer, out of reach of children and pets. Use in a well-ventilated area.
- Do not exceed the maximum operating pressure of 150 PSI for this valve.
Product Overview
The FibroPool 3-Way Diverter Valve is constructed from chemical-resistant, self-lubricating, non-corrosive materials, ensuring long-lasting performance. Its design allows for efficient water flow management in various pool and spa applications.
Image: The FibroPool 3-Way Diverter Valve highlighting its space-efficient design, optimized flow performance, and superior sealing technology. Arrows indicate the direction of water flow through the valve.
Key features include:
- Adjustable Handle: Ergonomic, easy-grip design with anti-slip control for safe operation. The self-locking handle allows you to secure the valve in any desired position.
- High-Flow Design: Enhances water efficiency for diverting, mixing, and shut-off functions.
- Clear Indicator: Precisely directs water flow, making it easy to see the current valve setting.
- POSI-Close Seal: Provides a tight shutoff, reducing leaks and backflow.
- 1.5-inch Inlet & Outlet: Features 3 ports total with direct glue-in (slip) connections for standard 1.5-inch PVC plumbing.

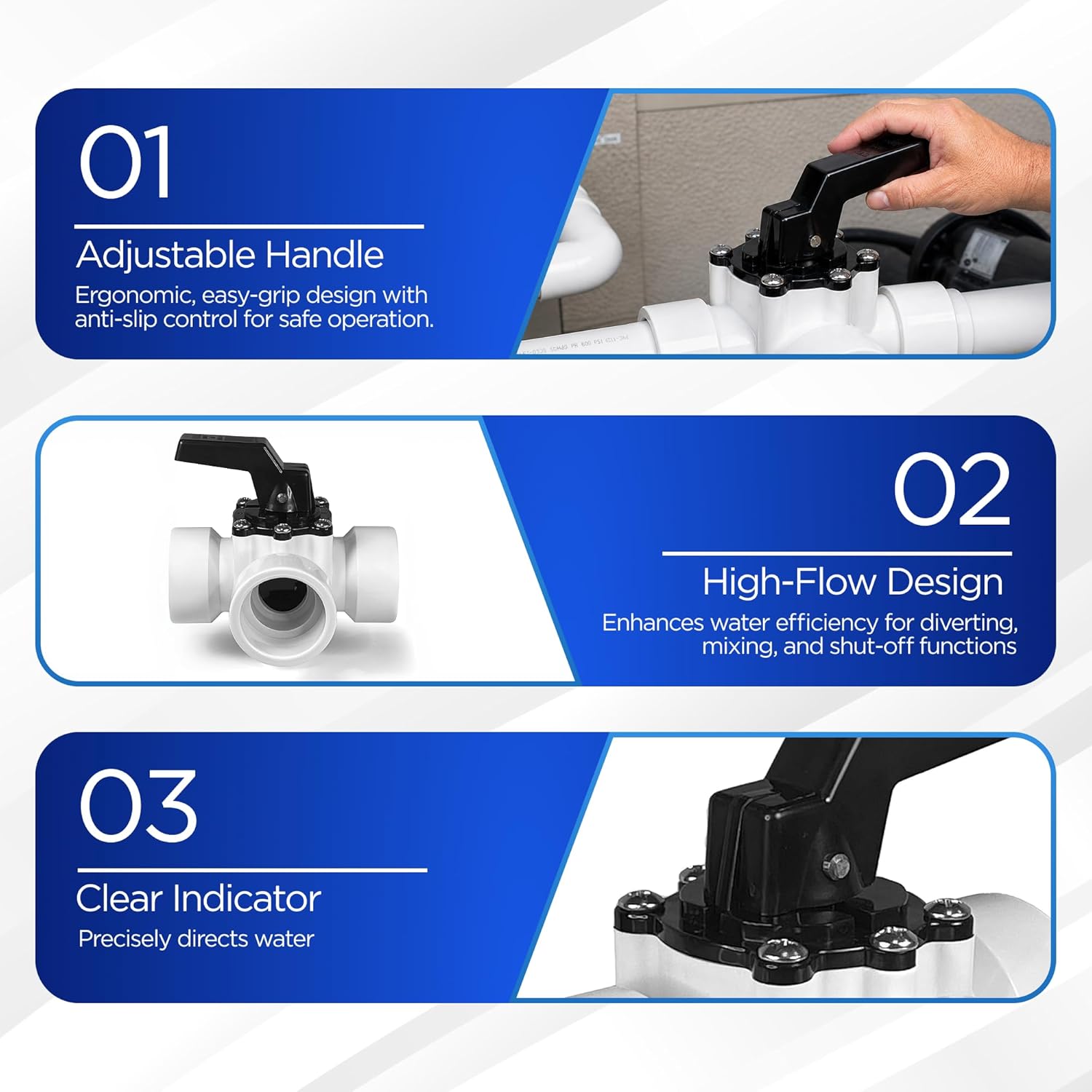

Image: Detailed views illustrating the adjustable handle for ergonomic control, the high-flow design for efficiency, and the clear indicator for precise water direction.
Installation
The FibroPool 3-Way Diverter Valve is designed for straightforward installation without requiring disassembly. It uses standard 1.5-inch PVC slip/glue connections.
- Prepare the Pipe: Cut the PVC pipe to the desired length and carefully remove any burrs from the cut edges to ensure a smooth fit and proper sealing.
- Clean Surfaces: Clean the outside of the PVC pipe and the inside of the valve port using PVC pipe cleaner. Allow both surfaces to dry for approximately 30 seconds.
- Apply First Coat of Glue: Apply a uniform coat of PVC cement to the outside of the pipe and the inside of the valve port. Allow it to partially dry until tacky (approximately 15-30 seconds).
- Apply Second Coat & Insert: Apply a second coat of PVC cement to both surfaces. Immediately insert the pipe fully into the valve port with a quarter turn to ensure even distribution of the cement and a secure bond. Hold firmly for a few seconds.
- Cure Time: Allow adequate cure time for the PVC cement as recommended by the adhesive manufacturer before pressurizing the system.
Image: A visual guide demonstrating the installation process: 1. Cutting pipe and removing burrs. 2. Cleaning pipe and valve surfaces. 3. Applying the first coat of PVC glue. 4. Applying the second coat and inserting the pipe with a quarter turn.
Operating Instructions
The 3-way diverter valve allows you to control the direction of water flow within your pool or spa plumbing system. The self-locking handle provides secure positioning.
- Diverting Flow: To divert water, simply rotate the handle to align the clear indicator with the desired outlet port. The handle will lock into position, preventing accidental changes.
- Shutting Off Flow: To completely shut off flow to a specific port, rotate the handle so the indicator points away from that port, or to a position that blocks the flow as needed for maintenance or system isolation.
- Mixing Applications: For mixing applications, position the handle to allow flow through multiple ports simultaneously, if your system design permits.
Always ensure the pump is off before adjusting the valve to prevent water hammer or damage to the system.
Maintenance
Regular maintenance helps ensure the longevity and proper function of your diverter valve.
- Routine Inspection: Periodically inspect the valve for any signs of leaks, cracks, or damage. Check the handle for smooth operation and ensure it locks securely.
- Cleaning: If debris accumulates around the valve, gently clean the exterior with a soft cloth and mild detergent. Avoid abrasive cleaners that could damage the PVC finish.
- Seal Check: While the valve is self-lubricating, if you notice any stiffness in the handle or minor leaks, consult a qualified pool technician. Do not attempt to disassemble the valve body unless you are a trained professional.
- Winterization: In colder climates, ensure the valve and associated plumbing are properly drained and protected from freezing temperatures to prevent damage.
Troubleshooting
This section addresses common issues you might encounter with your diverter valve.
- Leakage at Connections:
- Cause: Improper PVC cement application or insufficient cure time during installation.
- Solution: If possible, drain the system, cut out the leaking section, and re-install the valve or a new section of pipe following the installation instructions carefully. Ensure proper cure time.
- Stiff or Difficult Handle Operation:
- Cause: Accumulation of mineral deposits or debris, or wear on internal components.
- Solution: Ensure the valve is clean externally. If the issue persists, contact a qualified pool technician for inspection.
- Incomplete Shutoff or Diversion:
- Cause: Debris lodged within the valve, or internal seal wear.
- Solution: Turn off the pump. Attempt to cycle the handle through its full range of motion several times to dislodge any minor debris. If the problem continues, professional inspection may be required.
Specifications
| Specification | Detail |
|---|---|
| Brand | FibroPool |
| Model Number | TRTD0822 |
| Part Number | TRTD822 |
| Material | Polyurethane |
| Exterior Finish | PVC |
| Inlet Connection Size | 1.5 Inches |
| Inlet Connection Type | PVC (Glue Socket) |
| Outlet Connection Size | 1.5 Inches (3.8 Centimeters) |
| Outlet Connection Type | PVC (Glue Socket) |
| Number of Ports | 3 |
| Maximum Operating Pressure | 150 PSI (Pounds per Square Inch) |
| Valve Type | Multi-way Valve |
| Package Dimensions | 14.91 x 13.49 x 11.1 cm; 340 grams |
| Manufacturer | Pool Supply Town |
| UPC | 700112429439 |
Warranty and Support
For warranty information or technical support regarding your FibroPool 1.5-inch 3-Way Diverter Valve, please refer to the documentation included with your purchase or contact FibroPool customer service directly. Keep your proof of purchase for warranty claims.
