Puig 6814U Engine Guard Instruction Manual

1. Product Overview

The Puig 6814U Engine Guard is a high-quality accessory designed to provide essential side protection for Adventure/Trail motorcycles. This specific model, identified as 6814U, is engineered for a precise fit on the 2013 BMW R1200GS, ensuring optimal integration and performance. Its primary function is to safeguard critical engine components and the motorcycle's side fairings from damage during accidental tip-overs or minor impacts.

Key features of the Puig 6814U Engine Guard include:

• Precise Fit: Custom-designed for specific motorcycle models, ensuring seamless integration.
• Robust Protection: Effectively protects the motorcycle from damage during tip-overs.
• Complete Kit: Includes all necessary mounting instructions for a straightforward installation.

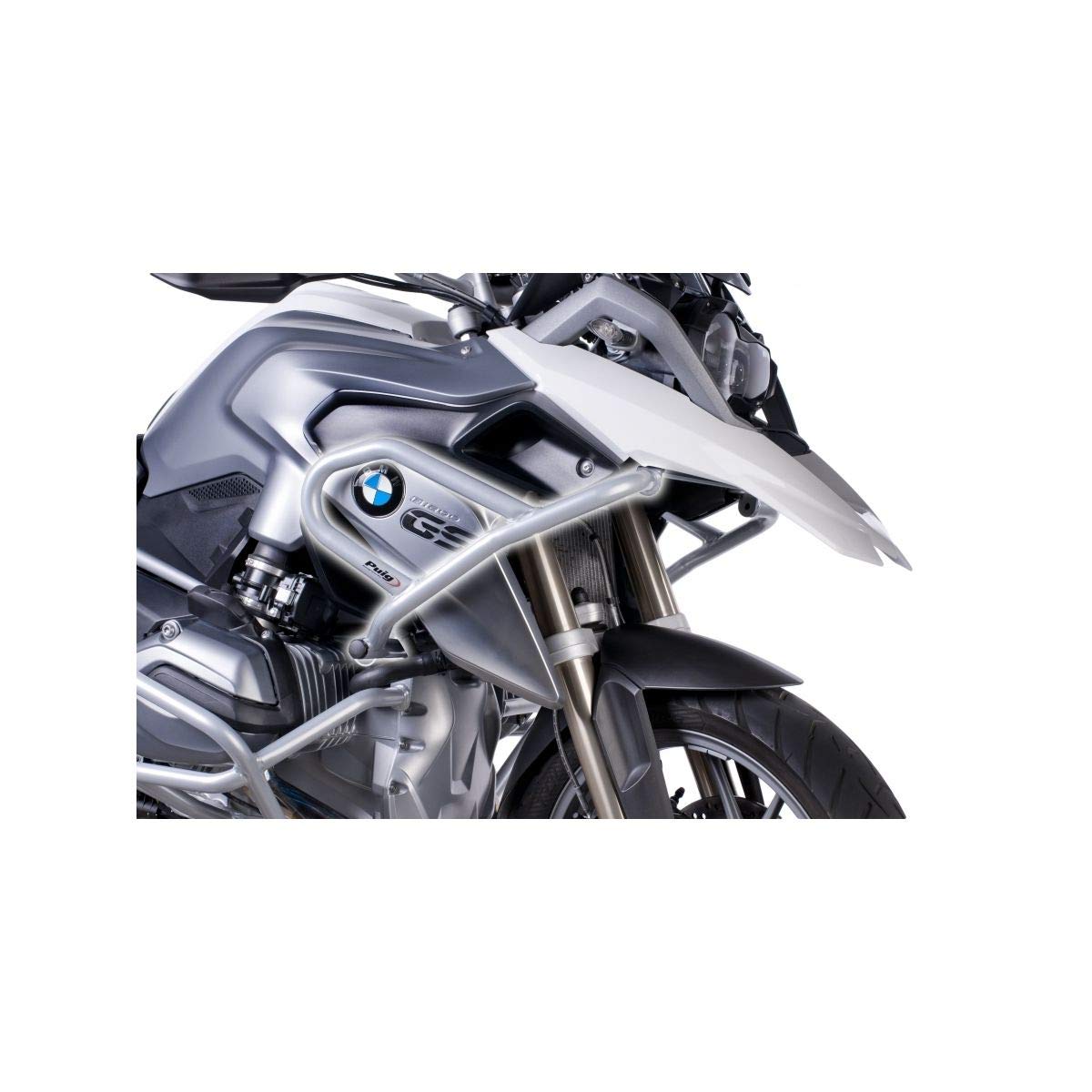

Image 1: The Puig 6814U Grey Superior Engine Guard. This image illustrates the design and appearance of the engine guard, which is intended to be mounted on the side of a motorcycle for protection.

2. Safety Information

Before proceeding with installation or use, please read and understand all safety warnings and instructions. Failure to follow these instructions may result in property damage or personal injury.

• Always wear appropriate personal protective equipment (PPE) during installation.
• Ensure the motorcycle is stable and securely supported before beginning any work.
• Do not modify the engine guard or its components. Use only original Puig parts.
• Regularly inspect the engine guard and mounting hardware for signs of wear, damage, or looseness. Tighten fasteners as necessary.
• If you are unsure about any part of the installation process, consult a qualified motorcycle mechanic.

3. Package Contents

Verify that all components are present and undamaged before beginning installation. The package should contain:

• Puig 6814U Engine Guard components (left and right sides)
• All necessary mounting hardware (bolts, washers, spacers, etc.)
• Detailed installation instructions

If any parts are missing or damaged, please contact your retailer or Puig customer support immediately.

4. Setup and Installation

The Puig 6814U Engine Guard is designed for a straightforward bolt-on installation, requiring no modifications to your motorcycle. For optimal safety and performance, it is crucial to follow the included detailed mounting instructions precisely.

1. Preparation: Park your motorcycle on a level, stable surface. Ensure the engine is cool. Gather all tools required as specified in the included instructions.
2. Identify Mounting Points: Locate the designated mounting points on your motorcycle's frame, typically near the engine or lower fairing. Refer to the diagrams in the provided manual.
3. Attach Components: Carefully align the engine guard components with the mounting points. Secure them loosely using the provided hardware. Do not fully tighten at this stage.
4. Adjust and Align: Once all components are loosely attached, adjust the engine guard for proper alignment and fitment. Ensure there is no interference with other motorcycle parts.
5. Final Tightening: Systematically tighten all bolts to the torque specifications provided in the detailed instructions. Use a torque wrench if specified. Ensure all fasteners are secure.
6. Final Check: After installation, double-check all connections and ensure the engine guard is firmly mounted and does not obstruct any controls or moving parts.

Note: The included paper instructions contain specific diagrams and torque values essential for correct installation. Always refer to these for your particular motorcycle model.

Image 2: An example of the Puig 6814U Engine Guard, illustrating its structure and potential mounting points. This image serves as a visual aid for understanding the product during installation.

5. Usage and Purpose

Once properly installed, the Puig 6814U Engine Guard serves as a critical protective accessory for your motorcycle. Its primary purpose is to absorb and distribute impact forces in the event of a fall or tip-over, thereby reducing potential damage to the engine casing, fairings, and other vulnerable components. While it offers significant protection, it is not a guarantee against all forms of damage. Always ride responsibly and within your limits.

6. Maintenance

To ensure the longevity and continued effectiveness of your Puig 6814U Engine Guard, regular maintenance is recommended:

• Cleaning: Clean the engine guard regularly with mild soap and water. Avoid abrasive cleaners or solvents that could damage the finish.
• Inspection: Periodically inspect all mounting bolts and connections to ensure they remain tight. Vibrations from riding can cause fasteners to loosen over time.
• Damage Check: After any incident or fall, thoroughly inspect the engine guard for bends, cracks, or other damage. If significant damage is present, the guard should be replaced to maintain optimal protection.

7. Troubleshooting

If you encounter issues during installation or use, consider the following:

• Parts Not Fitting: Double-check that you have the correct model (6814U) for your specific motorcycle (2013 BMW R1200GS). Ensure you are following the diagrams in the included instructions.
• Loose Fitment: Ensure all bolts are tightened to the specified torque. Re-check that all spacers and washers are installed in the correct order as per the instructions.
• Missing Hardware: Verify against the parts list in your manual. If parts are genuinely missing, contact Puig customer support.

For persistent issues, it is recommended to consult a professional motorcycle mechanic.

8. Specifications

9. Warranty and Support

Puig products are manufactured to high standards and typically come with a manufacturer's warranty against defects in materials and workmanship. Please refer to the warranty information provided with your purchase or visit the official Puig website for specific details regarding warranty coverage and duration.

For technical assistance, missing parts, or warranty claims, please contact Puig customer support through their official website or your authorized retailer. When contacting support, please have your product model number (6814U) and proof of purchase readily available.
