1. Introduction and Safety Information
Thank you for choosing the Yato YT-09540 Double Hammer Impact Wrench. This manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your tool. Please read this manual thoroughly before use and retain it for future reference.
General Safety Warnings
- Always wear appropriate personal protective equipment (PPE), including eye protection, hearing protection, and gloves, when operating the tool.
- Ensure the work area is clean, well-lit, and free from obstructions.
- Do not operate the tool in explosive atmospheres, such as in the presence of flammable liquids, gases, or dust.
- Keep children and bystanders away while operating the tool.
- Disconnect the air supply before making any adjustments, changing accessories, or performing maintenance.
- Use only genuine Yato accessories and parts.
- Do not modify the tool in any way.
- Maintain a firm grip on the tool and be aware of potential kickback.
- Ensure the air compressor meets the tool's requirements for pressure and airflow.
2. Product Overview
The Yato YT-09540 is a powerful 1/2 inch drive pneumatic impact wrench featuring a double hammer mechanism, designed for demanding fastening and loosening tasks. Its robust construction with an alloy steel and aluminum composite body ensures durability and reliable performance.
Figure 2.1: The Yato YT-09540 Double Hammer Impact Wrench, showcasing its black and red design.
Key Features
- High Torque Output: Delivers up to 1150 Nm of maximum torque for efficient operation.
- Double Hammer Mechanism: Provides increased power and durability.
- 1/2 Inch Square Drive: Compatible with standard 1/2 inch impact sockets.
- Composite Body: Lightweight yet robust construction from alloy steel and aluminum.
- Ergonomic Design: Features a comfortable grip for extended use.

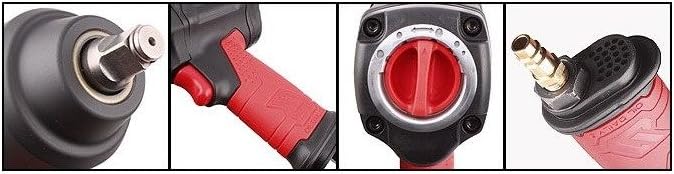

Figure 2.2: Close-up views of the 1/2 inch square drive, ergonomic handle, power regulator, and air inlet connection.
Figure 2.3: Internal view of the Yato YT-09540, illustrating the double hammer mechanism and other components.
3. Technical Specifications
| Specification | Value |
|---|---|
| Model Number | YT-09540 |
| Brand | Yato |
| Drive Size | 1/2 inch (12.5 mm) Square Fixed |
| Maximum Torque | 1150 Nm |
| No-load Speed | 10000 min⁻¹ (RPM) |
| Operating Pressure | 0.63 MPa (approx. 6.3 bar / 90 PSI) |
| Air Consumption | 153 l/min (5.4 CFM) |
| Air Inlet Size | 1/4 inch (6.3 mm) |
| Hammer Mechanism | Twin Hammer Type |
| Body Material | Alloy Steel, Aluminum (Composite Body) |
| Color | Black/Red |
| Product Dimensions (L x W x H) | 20 x 7 x 20 cm |
| Weight | 2.12 Kilograms |
| Country of Origin | China |
Figure 3.1: Visual representation of key technical specifications including drive size, air inlet, operating pressure, air consumption, torque, RPM, and composite body.
Figure 3.2: Diagram highlighting the 1150 Nm torque capability and the Twin Hammer mechanism of the tool.
4. Setup and Preparation
4.1 Air Supply Connection
- Ensure your air compressor is capable of providing a continuous operating pressure of 0.63 MPa (90 PSI) and an airflow of at least 153 l/min (5.4 CFM). An undersized compressor will significantly reduce the tool's performance.
- Connect a 1/4 inch air hose to the tool's air inlet. It is recommended to use an air filter/regulator/lubricator (FRL) unit in your air line to ensure clean, regulated, and lubricated air supply.
- Secure all connections to prevent air leaks.
4.2 Lubrication
For optimal performance and longevity, lubricate the tool daily. Add a few drops of pneumatic tool oil into the air inlet before each use or at the beginning of each work session. If using an FRL unit, ensure the lubricator is properly filled and adjusted.
4.3 Attaching Sockets
Select the appropriate 1/2 inch impact-rated socket for your application. Align the square drive of the socket with the square drive on the tool and push firmly until it locks into place. Always use impact-grade sockets; standard chrome sockets can shatter under impact.
5. Operating Instructions
5.1 Power and Direction Control
The Yato YT-09540 features a trigger for power activation and a directional switch (typically a rotating dial or lever) to select between forward (tightening) and reverse (loosening) modes. Some models may also include multiple power settings for torque control.
- Forward (Tightening): Set the directional switch to the 'F' or 'Forward' position.
- Reverse (Loosening): Set the directional switch to the 'R' or 'Reverse' position.
- Torque Adjustment: If your tool has multiple power settings, select the desired setting. Lower settings are for less demanding tasks or initial tightening, while higher settings provide maximum torque. For critical applications, always use a torque wrench for final tightening to specified values.
5.2 General Operation
- Ensure the workpiece is stable and secured.
- Select the correct socket and attach it firmly to the tool.
- Connect the air supply and ensure the pressure is set correctly.
- Hold the tool firmly with both hands if necessary, maintaining balance.
- Place the socket squarely onto the fastener.
- Press the trigger to operate the tool. For loosening stubborn fasteners, apply full power. For tightening, use a lower setting initially and finish with a torque wrench if precise torque is required.
- Release the trigger to stop the tool.
- Disconnect the air supply when finished or before changing sockets.
Figure 5.1: The Yato YT-09540 impact wrench in use, demonstrating its application for automotive tasks such as removing wheel nuts.
6. Maintenance
Regular maintenance ensures the longevity and optimal performance of your Yato YT-09540 impact wrench.
6.1 Daily Maintenance
- Lubrication: Add 5-10 drops of pneumatic tool oil into the air inlet before each use. This is crucial for the internal components, especially the hammer mechanism.
- Check Air Line: Inspect the air hose and connections for wear, damage, or leaks. Replace any damaged components immediately.
- Clean Tool: Wipe down the tool with a clean, dry cloth to remove dirt and debris. Do not use harsh solvents.
6.2 Periodic Maintenance
- Air Filter: If using an FRL unit, regularly check and clean or replace the air filter element to ensure a clean air supply to the tool.
- Hammer Mechanism: Periodically, the hammer mechanism may require specialized lubrication or inspection by a qualified technician. Refer to a service center for this.
- Storage: Store the tool in a clean, dry environment away from direct sunlight and extreme temperatures. Disconnect from the air supply before storage.
7. Troubleshooting
This section addresses common issues you might encounter with your impact wrench.
| Problem | Possible Cause | Solution |
|---|---|---|
| Tool has low power or does not loosen/tighten fasteners effectively. | Insufficient air pressure or airflow from compressor. Air leaks in the system. Tool not properly lubricated. Worn hammer mechanism. | Ensure compressor meets minimum requirements (0.63 MPa / 153 l/min). Check all air line connections for leaks and tighten. Add pneumatic tool oil to the air inlet. Contact a qualified service technician. |
| Air leaks from the tool. | Loose fittings. Damaged O-rings or seals. | Tighten all air fittings. Have the tool inspected and repaired by a qualified technician. |
| Tool does not start. | No air supply. Trigger mechanism jammed. | Check air compressor and hose connection. Ensure trigger moves freely. Do not force. |
| Excessive vibration or noise. | Internal wear or damage. Loose components. | Discontinue use and have the tool inspected by a qualified technician. |
8. Warranty and Support
8.1 Warranty Information
Specific warranty terms and conditions for the Yato YT-09540 impact wrench may vary by region and retailer. Please refer to the warranty card included with your purchase or contact your point of sale for detailed information regarding warranty coverage, duration, and claims procedures.
8.2 Customer Support
For technical assistance, spare parts, or service inquiries, please contact your authorized Yato dealer or the retailer from whom you purchased the product. When contacting support, please have your model number (YT-09540) and purchase details readily available.
