Flos Luminator Floor Lamp Instruction Manual

1. Introduction

This instruction manual provides essential information for the safe and proper installation, operation, and maintenance of your Flos Luminator Floor Lamp. Designed by Achille and Pier Giacomo Castiglioni in 1954, the Luminator is a classic piece of lighting. Please read this manual thoroughly before use and retain it for future reference.

2. Safety Instructions

To ensure safe operation and prevent damage, please observe the following safety precautions:

• Always disconnect the lamp from the power supply before cleaning, changing the bulb, or performing any maintenance.
• Do not operate the lamp with a damaged cord or plug. If damaged, contact qualified service personnel.
• This lamp is designed for indoor use only. Do not expose it to moisture or extreme temperatures.
• Ensure the lamp is placed on a stable, level surface to prevent tipping.
• Use only the specified bulb type and wattage to avoid overheating or damage.
• Keep flammable materials away from the lamp.
• Do not attempt to modify or disassemble the lamp beyond what is described in this manual.

3. Package Contents

Verify that all components are present and undamaged upon unpacking:

• Flos Luminator Floor Lamp (main body with tripod base)
• Power Cord with Plug
• Light Bulb (E27 LED, 12W) - May be pre-installed or included separately.
• Instruction Manual (this document)

4. Setup and Assembly

The Flos Luminator Floor Lamp typically requires minimal assembly. Follow these steps:

1. Carefully remove all packaging materials.
2. Place the lamp base on a flat, stable surface. Ensure the three legs of the tripod base are fully extended and stable.
3. If the bulb is not pre-installed, gently screw the E27 LED bulb into the lamp holder at the top of the lamp until it is secure. Do not overtighten.
4. Position the lamp in your desired location, ensuring the power cord can reach an electrical outlet without being stretched or obstructed.

Figure 4.1: Fully assembled Flos Luminator Floor Lamp. This image shows the lamp's slender vertical body, tripod base, and the upward-pointing light fixture at the top.

Figure 4.2: Flos Luminator Floor Lamp positioned in a room, demonstrating its ambient upward lighting effect. The lamp stands tall next to a sofa and a small table.

5. Operating Instructions

The Flos Luminator Floor Lamp is designed for simple operation:

1. Plug the power cord into a standard 230V AC electrical outlet.
2. Locate the integrated switch on the power cord or lamp body (if present).
3. Toggle the switch to the "ON" position to illuminate the lamp.
4. Toggle the switch to the "OFF" position to turn off the lamp.

The Luminator lamp provides indirect, upward-facing light, ideal for ambient room illumination.

6. Maintenance

Regular maintenance ensures the longevity and optimal performance of your lamp.

6.1 Cleaning

• Always unplug the lamp before cleaning.
• Wipe the metal surfaces with a soft, dry cloth.
• For stubborn marks, a slightly damp cloth can be used, followed immediately by a dry cloth.
• Do not use abrasive cleaners, solvents, or harsh chemicals, as these can damage the finish.

6.2 Bulb Replacement

• Ensure the lamp is unplugged and the bulb has cooled completely before attempting to replace it.
• Gently unscrew the old bulb counter-clockwise.
• Screw in a new E27 LED bulb (maximum 12 Watts) clockwise until secure. Do not overtighten.
• Dispose of old bulbs according to local regulations.

7. Troubleshooting

If you encounter issues with your Flos Luminator Floor Lamp, refer to the following common problems and solutions:

8. Specifications

Key technical details for the Flos Luminator Floor Lamp:

• Brand: Flos
• Model: Luminator (F3770033)
• Designers: Achille and Pier Giacomo Castiglioni (1954)
• Material: Metal
• Color: Silver
• Dimensions (approximate, assembled): 151 cm (Height) x 14 cm (Width) x 12 cm (Depth) - Based on package dimensions, actual lamp dimensions may vary slightly.
• Number of Bulbs: 1
• Bulb Type: LED
• Bulb Base: E27
• Max Wattage: 12 Watts
• Voltage: 230 Volts (AC)
• Style: Modern
• Room Type: Living Room

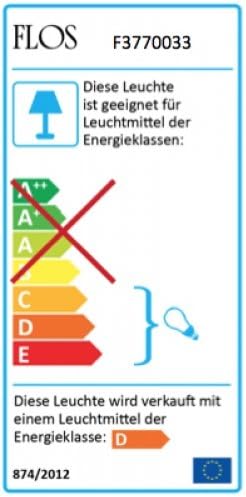

Figure 8.1: Energy efficiency label for the Flos Luminator, indicating its energy class.

9. Warranty and Support

Warranty information for the Flos Luminator Floor Lamp is typically provided at the point of purchase or through the authorized retailer. Please refer to your purchase documentation for specific warranty terms and conditions.

For technical support, spare parts, or service inquiries, please contact your authorized Flos dealer or the retailer from whom you purchased the product. Information regarding spare parts availability is not provided in this document.
