Smith's Space Saver SS3 Central Heating Plinth Heater User Manual

Introduction

This manual provides comprehensive instructions for the installation, operation, and maintenance of your Smith's Space Saver SS3 Central Heating Plinth Heater. Please read this manual thoroughly before installation and use to ensure safe and efficient operation.

The Smith's Space Saver SS3 is an energy-efficient fan convector designed to integrate seamlessly into the plinth of a kitchen cabinet. This design eliminates the need for conventional radiators, offering significant space-saving benefits for additional storage, work surfaces, or kitchen appliances. It is primarily intended for domestic applications such as kitchens, utility rooms, and bathrooms, but is also suitable for non-domestic uses like reception areas, changing rooms, and libraries.

Important Safety Information

Always follow basic safety precautions when using electrical appliances to reduce the risk of fire, electric shock, and injury to persons.

• Read all instructions before using this heater.
• Do not operate any heater with a damaged cord or plug, or after the heater malfunctions or has been dropped or damaged in any manner.
• Do not use outdoors.
• This heater is hot when in use. To avoid burns, do not let bare skin touch hot surfaces.
• Keep combustible materials, such as furniture, pillows, bedding, papers, clothes, and curtains at least 0.9 meters (3 feet) from the front of the heater.
• Extreme caution is necessary when any heater is used by or near children or invalids and whenever the heater is left operating and unattended.
• Always unplug heater when not in use.
• Do not insert or allow foreign objects to enter any ventilation or exhaust opening as this may cause an electric shock or fire, or damage the heater.
• To prevent a possible fire, do not block air intakes or exhaust in any manner.
• A heater has hot and arcing or sparking parts inside. Do not use it in areas where gasoline, paint, or flammable vapors or liquids are used or stored.
• Use this heater only as described in this manual. Any other use not recommended by the manufacturer may cause fire, electric shock, or injury to persons.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

Product Overview

The Smith's Space Saver SS3 is a compact, fan-assisted hydronic heater designed for integration into kitchen plinths. It connects to your central heating system, providing efficient and discreet heating.

Image 1: Front view of the Smith's Space Saver SS3 Plinth Heater, showing the brushed stainless steel grille and control buttons.

Image 2: Technical drawing illustrating the dimensions of the Smith's Space Saver SS3 Plinth Heater, including pipe connections and overall unit size. Dimensions are in millimeters.

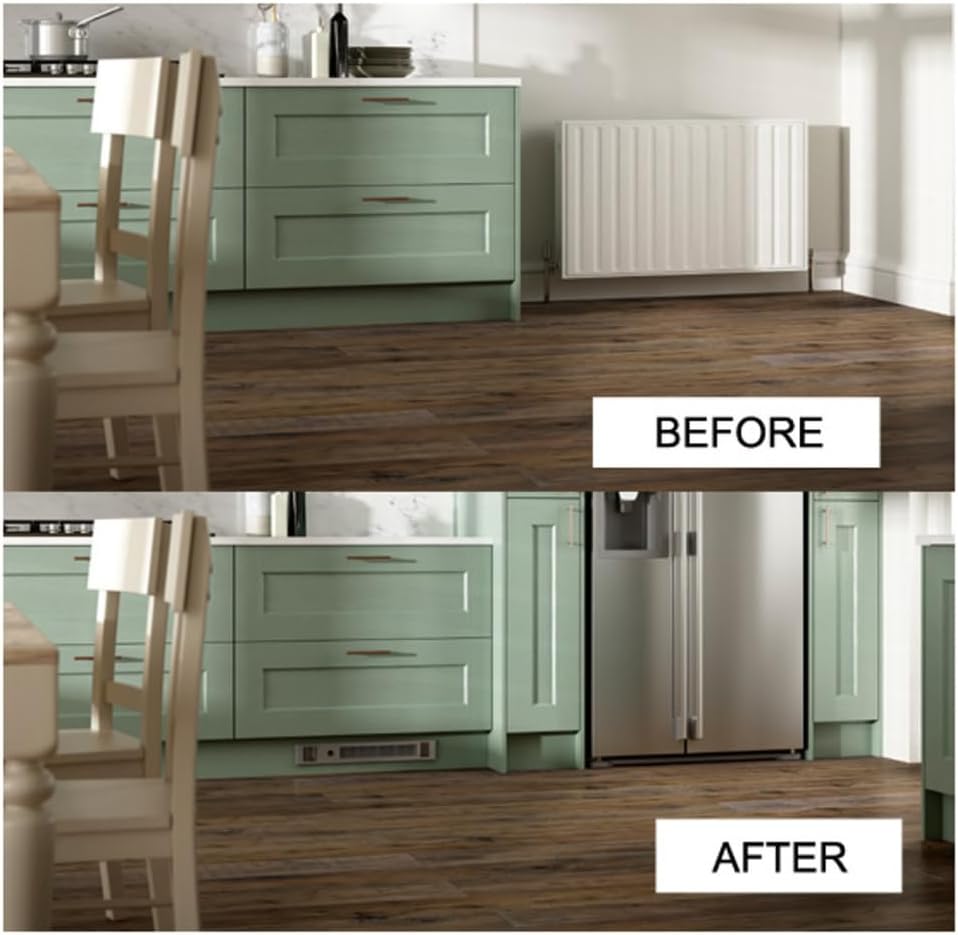

Image 3: Comparison showing a kitchen space with a traditional radiator (BEFORE) and the same space with the plinth heater installed, demonstrating the space-saving benefits (AFTER).

Setup and Installation

The Smith's Space Saver SS3 is designed for straightforward installation. It connects to your existing central heating system and requires a standard electrical connection.

What's Included:

• Smith's Space Saver SS3 Plinth Heater unit
• 15mm flow and return connections
• 2m mains cable
• Brushed stainless steel grille (other grille options available separately)

Note: Pipes are not included and must be sourced separately.

Installation Steps:

1. Prepare the Plinth Space: Ensure there is adequate space within the kitchen plinth for the unit. Refer to the dimensions provided in the 'Product Overview' section (Image 2). The unit dimensions are approximately 29 cm (depth) x 50 cm (width) x 10 cm (height).
2. Electrical Connection: Connect the 2m mains cable to a suitable 240V electrical supply. It is recommended that electrical installation be carried out by a qualified electrician.
3. Central Heating Connection: Connect the 15mm flow and return pipes from your central heating system to the corresponding connections on the plinth heater. Ensure all connections are secure and watertight. It is recommended that plumbing installation be carried out by a qualified plumber.
4. Secure the Unit: Slide the plinth heater into the prepared opening in the plinth. Secure it in place according to the manufacturer's instructions (specific mounting hardware details are not provided in the source, assume standard plinth heater mounting).
5. Attach the Grille: Once the unit is secured and connected, attach the brushed stainless steel grille to the front of the unit.
6. System Check: After installation, bleed the central heating system to remove any air and check for leaks. Test the electrical connection and the heater's operation.

For detailed plumbing and electrical diagrams, please consult a qualified professional or refer to the full installation guide provided with the product packaging.

Operating Instructions

The Smith's Space Saver SS3 operates in conjunction with your central heating system. When the central heating is active, the unit will draw heat from the water circulating through its coil and distribute it into the room via its fan.

Control Functions:

The unit features simple controls for fan speed and operation mode.

• Automatic Operation: When the central heating system is on, the plinth heater will automatically activate its fan to distribute heat.
• Boost Mode: To increase the heat output, rotate the fan control to activate the 'Boost' mode. This increases the fan speed, pushing more heat into the room.
• Manual Off Switch: A manual switch is provided to deactivate the fan if heating is not required, even when the central heating system is active.

Heat Output Specifications:

The heat output varies depending on the central heating water temperature and the fan setting (Normal or Boost).

Image 4: Table detailing the heat output in kW and BTU for various water temperatures (80°C down to 40°C) and fan settings (Normal and Boost) for different models, including the SS3.

For the SS3 model, typical heat output ranges from 0.8 kW (2700 BTU) in Normal mode to 0.9 kW (3100 BTU) in Boost mode, based on standard operating temperatures. Electrical power consumption is 16W in Normal mode and 25W in Boost mode. The unit operates quietly at 39 dBA on Boost mode.

Maintenance

Regular maintenance ensures optimal performance and longevity of your plinth heater.

• Cleaning the Grille: Periodically clean the brushed stainless steel grille to prevent dust buildup, which can impede airflow. Use a soft, damp cloth. Do not use abrasive cleaners.
• Internal Cleaning: For internal cleaning of the fan and heat exchanger, it is recommended to consult a qualified technician. Ensure the unit is disconnected from the mains power before any internal cleaning is attempted.
• System Checks: As part of your central heating system, ensure regular servicing of your boiler and associated pipework.

Troubleshooting

If you encounter issues with your Smith's Space Saver SS3, refer to the following common troubleshooting steps:

If the problem persists after attempting these solutions, please contact Smith's Environmental customer support.

Specifications

Warranty Information

The Smith's Space Saver SS3 Plinth Heater comes with a 5-year warranty covering parts and labor. This warranty applies from the date of purchase.

Please retain your proof of purchase for warranty claims. For full terms and conditions of the warranty, refer to the documentation supplied with your product or visit the manufacturer's official website.

Customer Support

For technical assistance, spare parts, or warranty claims, please contact Smith's Environmental customer support.

• Manufacturer: Smiths
• Brand: Smith's Environmental
• Website: www.smiths-environmental.com
• Contact Information: Refer to the product packaging or the official website for the most up-to-date contact details.

When contacting support, please have your model number (SS3) and proof of purchase readily available.
