De'Longhi Dragon Oil-Filled Radiator 2000W - Instruction Manual

1. Introduction

This manual provides essential information for the safe and efficient operation of your De'Longhi Dragon Oil-Filled Radiator 2000W. Please read these instructions carefully before using the appliance and keep them for future reference. This radiator is designed to provide comfortable and consistent heat for rooms up to 60 m³.

2. Important Safety Instructions

• Read all instructions before using this heater.
• Do not use this heater in the immediate vicinity of a bath, shower, or swimming pool.
• Do not use this heater if it has been dropped.
• Do not use if there are visible signs of damage to the heater.
• Use this heater on a horizontal and stable surface.
• Keep combustible materials such as furniture, curtains, and other flammable items at least 1 meter (3 feet) from the front and sides of the heater.
• Do not cover the heater. Overheating may occur.
• Supervise children and individuals with reduced physical, sensory, or mental capabilities when the appliance is in use.
• Ensure the voltage indicated on the rating label corresponds to the mains voltage in your home.
• Always unplug the heater when not in use.

3. Product Components

Your De'Longhi Dragon Oil-Filled Radiator consists of the following main components:

• Heating Fins: Multiple fins filled with diathermic oil for efficient heat distribution.
• Control Panel: Located on the side, featuring a thermostat dial and power selection switches.
• Thermostat Dial: Adjustable from 1 to 6 to set the desired room temperature.
• Power Selection Switches: Allows selection of different heating power levels (Minimum, Medium, Maximum).
• Handle: Integrated handle for easy repositioning of the radiator.
• Foldable Wheels: Pre-assembled wheels that can be unfolded for mobility and folded for compact storage.
• Cord Storage: Integrated reel for neat storage of the power cord.

Image: Close-up of the De'Longhi Dragon Oil-Filled Radiator, highlighting the control panel with its thermostat dial and power switches.

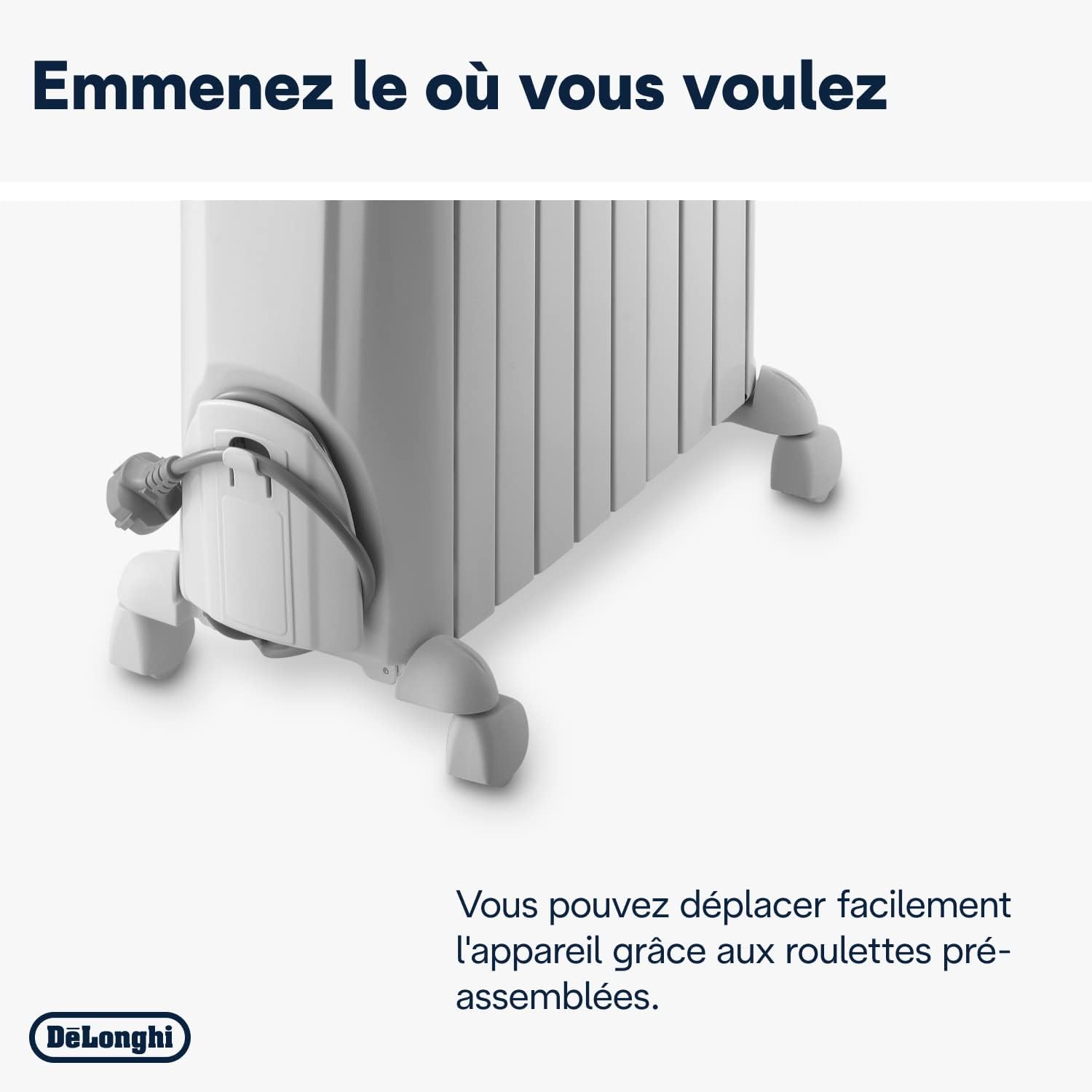

Image: Detail of the foldable wheels on the De'Longhi Dragon Radiator, designed for easy movement and compact storage.

4. Setup

4.1 Unpacking and Wheel Deployment

1. Carefully remove the radiator from its packaging.
2. The wheels are pre-assembled and folded for transport. Gently unfold them until they click into place, ensuring the radiator is stable on a flat surface.

Image: The De'Longhi Dragon Oil-Filled Radiator standing upright with its wheels unfolded, ready for use.

4.2 Initial Use and Odor Dissipation

During the first few hours of operation, the heater may emit a slight odor. This is normal and harmless, caused by the protective oils used during manufacturing. To dissipate this odor:

• Operate the heater at maximum power for approximately 2 hours in a well-ventilated area, preferably near an open window.
• Ensure the room is adequately ventilated during this period.

4.3 Placement

• Place the radiator on a stable, level surface.
• Maintain a minimum distance of 1 meter (3 feet) from walls, furniture, and other objects to ensure proper air circulation and prevent fire hazards.
• Do not place the heater directly below a power outlet.

5. Operating Instructions

5.1 Powering On/Off

1. Plug the power cord into a suitable electrical outlet (230V).
2. To turn on the radiator, select the desired power level using the power selection switches on the control panel.
3. To turn off the radiator, switch off all power switches and unplug the appliance from the mains.

5.2 Adjusting Temperature and Power

• Thermostat Control: Rotate the thermostat dial to set your desired room temperature. The dial typically ranges from 1 (minimum heat) to 6 (maximum heat). The radiator will automatically cycle on and off to maintain the set temperature.
• Power Settings: Use the power switches to select the heating output:
  • MIN (900W): For gentle, continuous heating or smaller rooms.
  • MED (1100W): For moderate heating.
  • MAX (2000W): For rapid heating or larger rooms.

Image: The De'Longhi Dragon Oil-Filled Radiator showing its dimensions (650mm height, 440mm depth, 160mm width) and highlighting the control panel with power settings up to 2000W.

5.3 Cord Storage

When the radiator is not in use or needs to be moved, wrap the power cord around the integrated cord storage reel located at the base of the unit for neat and safe storage.

Image: Close-up of the integrated cord storage on the De'Longhi Dragon Radiator, showing the power cord neatly wrapped.

6. Maintenance

6.1 Cleaning

• Always unplug the radiator and allow it to cool completely before cleaning.
• Wipe the exterior surfaces with a soft, damp cloth. Do not use abrasive cleaners or solvents.
• Ensure no water enters the control panel or other electrical components.

6.2 Storage

• When storing the radiator for extended periods, ensure it is clean and dry.
• Fold the wheels for compact storage.
• Store the appliance in a cool, dry place, away from direct sunlight and moisture.

7. Troubleshooting

8. Specifications

9. Warranty and Support

For warranty information, technical support, or service inquiries, please refer to the warranty card included with your product or visit the official De'Longhi website. Keep your proof of purchase for any warranty claims.

De'Longhi Official Website: www.delonghi.com
