Project Source Chrome 2-Handle 4-in Centerset WaterSense Bathroom Sink Faucet (Drain Included) Instruction Manual

Introduction

This manual provides detailed instructions for the installation, operation, and maintenance of your Project Source Chrome 2-Handle 4-in Centerset WaterSense Bathroom Sink Faucet. Please read this manual thoroughly before installation and use to ensure proper function and longevity of your product. Keep this manual for future reference.

Product Overview

The Project Source Chrome 2-Handle 4-in Centerset WaterSense Bathroom Sink Faucet is designed for both home and RV use, offering a modern aesthetic with practical features.

Key Features:

• Home and RV Compatible
• 3-hole Deck Mount Installation on 4-in center
• Meets WaterSense criteria to conserve water without sacrificing performance, with a max flow rate of 1.2-GPM
• Sleek low arc spout allows plenty of sink space
• Easy Installation with Drop and Lock Drain

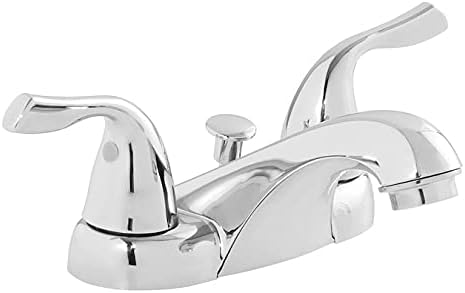

Figure 1: Front view of the Project Source Chrome 2-Handle Bathroom Sink Faucet, showcasing its polished chrome finish and modern design.

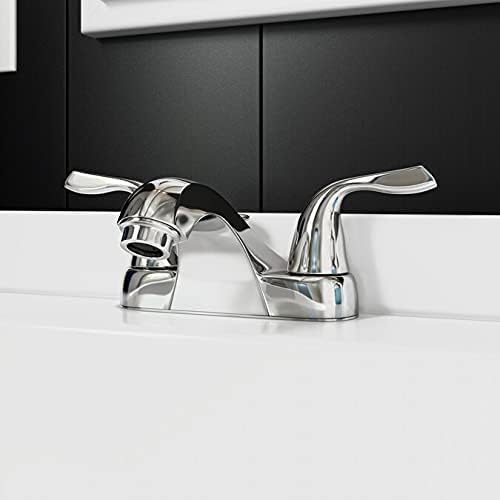

Figure 2: The Project Source Chrome Faucet installed on a white bathroom vanity, highlighting its compact and elegant profile.

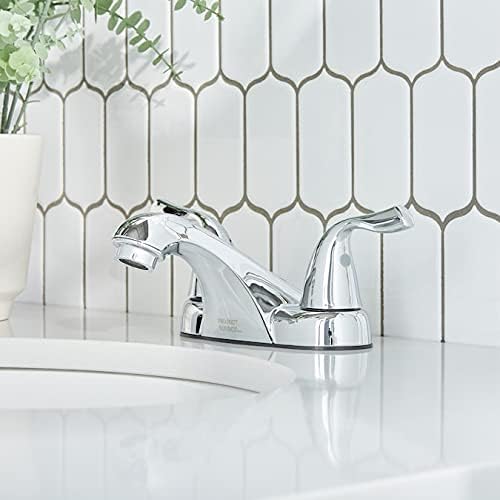

Figure 3: Side view of the Project Source Chrome Faucet, demonstrating the clearance provided by its low arc spout above the sink basin.

Setup and Installation

This faucet is designed for 3-hole deck mount installation on 4-inch centers. The included Drop and Lock Drain simplifies the installation process.

Installation Steps for Drop & Lock Drain:

1. Drop & Lock: Insert the drain assembly into the sink drain hole.
2. Lock: Secure the drain from underneath the sink by tightening the locking mechanism.
3. Adjust: Make any necessary adjustments to ensure a proper seal and alignment.

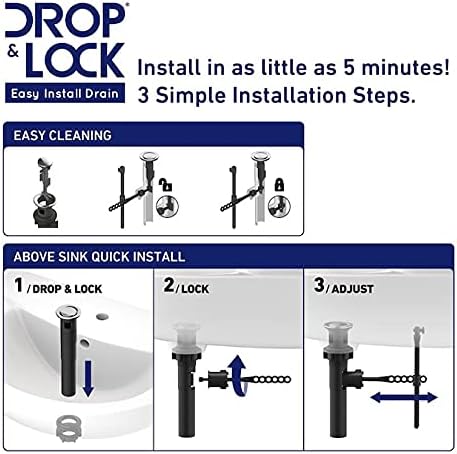

Figure 4: Visual guide for the 'Drop & Lock' drain installation, illustrating the three simple steps for quick setup.

For detailed faucet body installation, refer to the separate installation guide provided with your product packaging.

Operating Instructions

The Project Source faucet features a two-handle design for precise control over water temperature and flow.

Water Flow and Temperature Control:

• The left handle controls the hot water supply. Turn the handle counter-clockwise to increase hot water flow.
• The right handle controls the cold water supply. Turn the handle counter-clockwise to increase cold water flow.
• Adjust both handles simultaneously to achieve the desired water temperature and flow rate.
• To turn off the water, rotate both handles clockwise until the flow stops completely.

Maintenance

Regular cleaning and maintenance will help preserve the finish and functionality of your Project Source faucet.

Cleaning the Faucet:

• Clean the chrome finish with a soft, damp cloth.
• Use mild soap and water if necessary. Avoid abrasive cleaners, harsh chemicals, or scouring pads, as these can damage the finish.
• Wipe dry with a soft cloth to prevent water spots and maintain shine.

Aerator Maintenance:

• If water flow decreases or becomes irregular, the aerator may be clogged.
• Carefully unscrew the aerator from the end of the spout.
• Rinse the aerator screen under running water to remove any debris.
• Reassemble the aerator and screw it back onto the spout.

Troubleshooting

If you encounter any issues with your faucet, refer to the following common troubleshooting tips:

• Low Water Flow: Check if the aerator is clogged (see Maintenance section). Ensure water supply valves are fully open.
• Leaking from Spout: Turn off water supply. Check for loose connections or worn washers/gaskets within the faucet body. Consult a professional plumber if the issue persists.
• Leaking from Handles: Tighten handle screws. If leaking continues, the cartridge may need replacement.
• No Hot/Cold Water: Verify that the hot/cold water supply lines are connected correctly and the corresponding shut-off valves are open.

For more complex issues or if troubleshooting steps do not resolve the problem, contact Project Source customer support or a qualified plumber.

Specifications

Warranty and Support

Project Source products are manufactured to high-quality standards. For specific warranty information, please refer to the warranty card included with your product packaging or visit the official Project Source website. For technical support, replacement parts, or any other inquiries, please contact Project Source customer service.
