1. Introduction
This manual provides essential information for the safe and effective installation, operation, and maintenance of the Supco SXT105 Transformer. The SXT105 is a reliable power transformer designed for various industrial and scientific electrical applications, ensuring stable voltage conversion.
Please read this manual thoroughly before attempting any installation or operation to prevent damage to the unit or injury to personnel.
2. Safety Information
WARNING: Electrical shock hazard. Installation and servicing should only be performed by qualified personnel.
- Always disconnect power before installing or servicing the transformer.
- Ensure all wiring complies with local and national electrical codes.
- Do not operate the transformer if it appears damaged.
- Ensure proper grounding to prevent electrical hazards.
- Avoid touching live terminals.
3. Package Contents
Verify that all items are present and undamaged upon opening the package:
- Supco SXT105 Transformer (1 unit)
- Instruction Manual (this document)

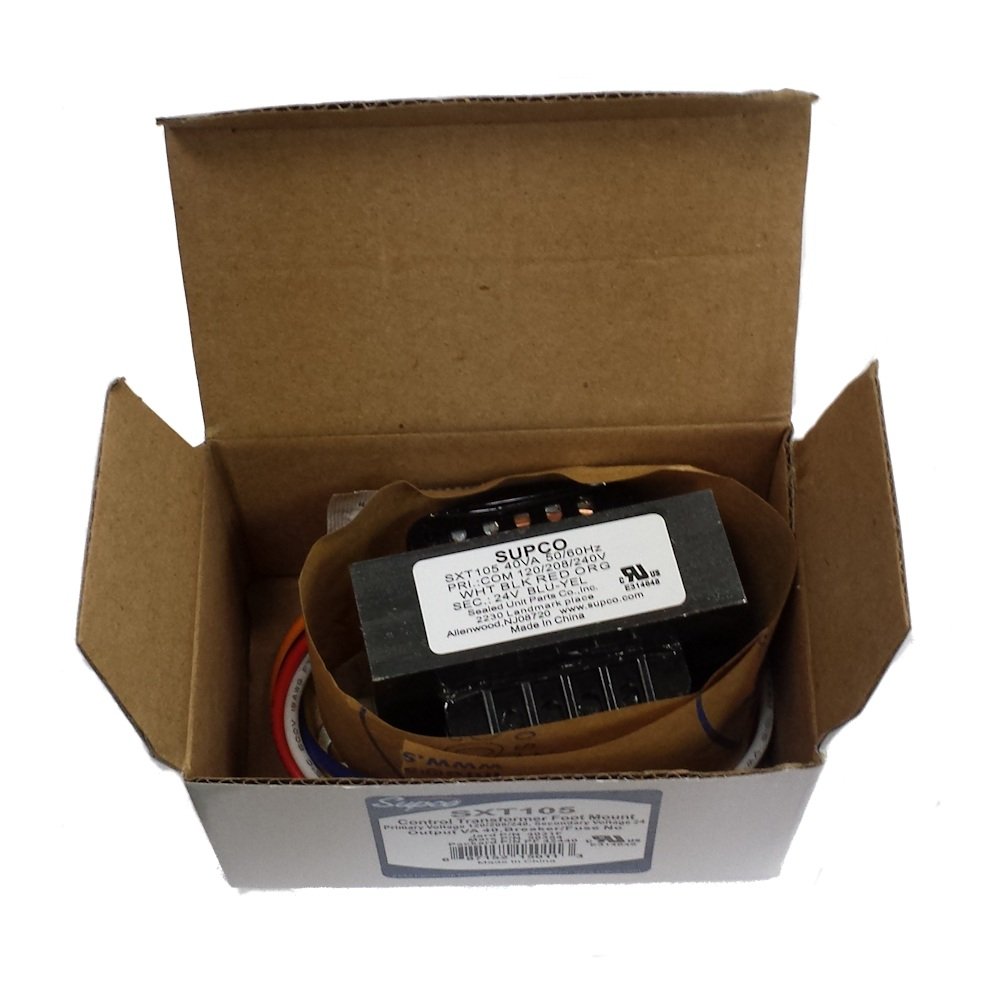

Image of the Supco SXT105 Transformer, showing its compact design and connection terminals.
4. Setup and Installation
The Supco SXT105 Transformer is designed for fixed installation. Follow these steps carefully:
- Mounting: Securely mount the transformer in a dry, well-ventilated area, away from flammable materials. Ensure adequate clearance for heat dissipation.
- Wiring (Primary Side): Connect the input power supply to the primary terminals of the transformer. Ensure the input voltage matches the transformer's primary voltage rating. Use appropriate gauge wiring for the current requirements.
- Wiring (Secondary Side): Connect the load to the secondary terminals of the transformer. Verify that the load's voltage and current requirements are within the transformer's secondary ratings.
- Grounding: Connect the transformer's ground terminal to a reliable earth ground.
- Verification: Double-check all connections for tightness and correct polarity before applying power.
Note: If you are unsure about any part of the installation process, consult a qualified electrician.
5. Operating Instructions
Once properly installed, the Supco SXT105 Transformer operates passively to convert electrical voltage. No user interaction is typically required during normal operation.
- Power On: After installation, apply power to the primary side of the transformer.
- Monitoring: Periodically check for unusual noises, excessive heat, or burning odors, which may indicate a problem.
- Load Management: Ensure the connected load does not exceed the transformer's rated capacity to prevent overheating and damage.
6. Maintenance
The Supco SXT105 Transformer requires minimal maintenance. Regular inspections are recommended to ensure optimal performance and safety.
- Visual Inspection: Annually inspect the transformer for any signs of physical damage, corrosion, or loose connections.
- Cleaning: Keep the transformer free from dust and debris. Use a dry, non-conductive cloth for cleaning. Do not use liquids.
- Ventilation: Ensure that ventilation openings are not obstructed to allow for proper heat dissipation.
CAUTION: Always disconnect power before performing any maintenance.
7. Troubleshooting
If the transformer is not functioning as expected, refer to the following common issues and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| No output voltage | No input power; Blown fuse/tripped breaker; Open circuit in primary winding; Incorrect wiring. | Check power supply; Reset breaker/replace fuse; Verify wiring connections; Consult a qualified technician. |
| Transformer overheating | Overload; Poor ventilation; Short circuit in secondary winding. | Reduce load; Ensure adequate airflow; Check for short circuits; Consult a qualified technician. |
| Unusual noise (humming/buzzing) | Loose laminations; Overload; Incorrect voltage. | Ensure proper mounting; Reduce load; Verify input voltage; Consult a qualified technician. |
If the problem persists after attempting these solutions, contact Supco customer support or a qualified service professional.
8. Specifications
The following specifications apply to the Supco SXT105 Transformer:
- Brand: Supco
- Model: SXT105
- Part Number: SXT105
- Item Weight: 1.5 Pounds
- UPC: 759569235025
- ASIN: B00FDOIIXY
- Specification Met: OEM
- Type: Power Transformer
- Note: Specific voltage and current ratings are typically marked on the unit itself.
9. Warranty and Support
For warranty information and technical support regarding your Supco SXT105 Transformer, please refer to the warranty card included with your purchase or visit the official Supco website. Keep your purchase receipt as proof of purchase for warranty claims.
Contact Information:
- For general inquiries or support, please visit www.supco.com.
