1. Introduction
Thank you for choosing the Good Ideas Impressions Tree Bark Rain Barrel, model IMP-C90-SAN. This manual provides essential information for the safe and efficient setup, operation, and maintenance of your 90-gallon rain barrel. Designed to collect rainwater for gardening and other outdoor uses, this barrel helps conserve water and provides chemical-free water for your plants.

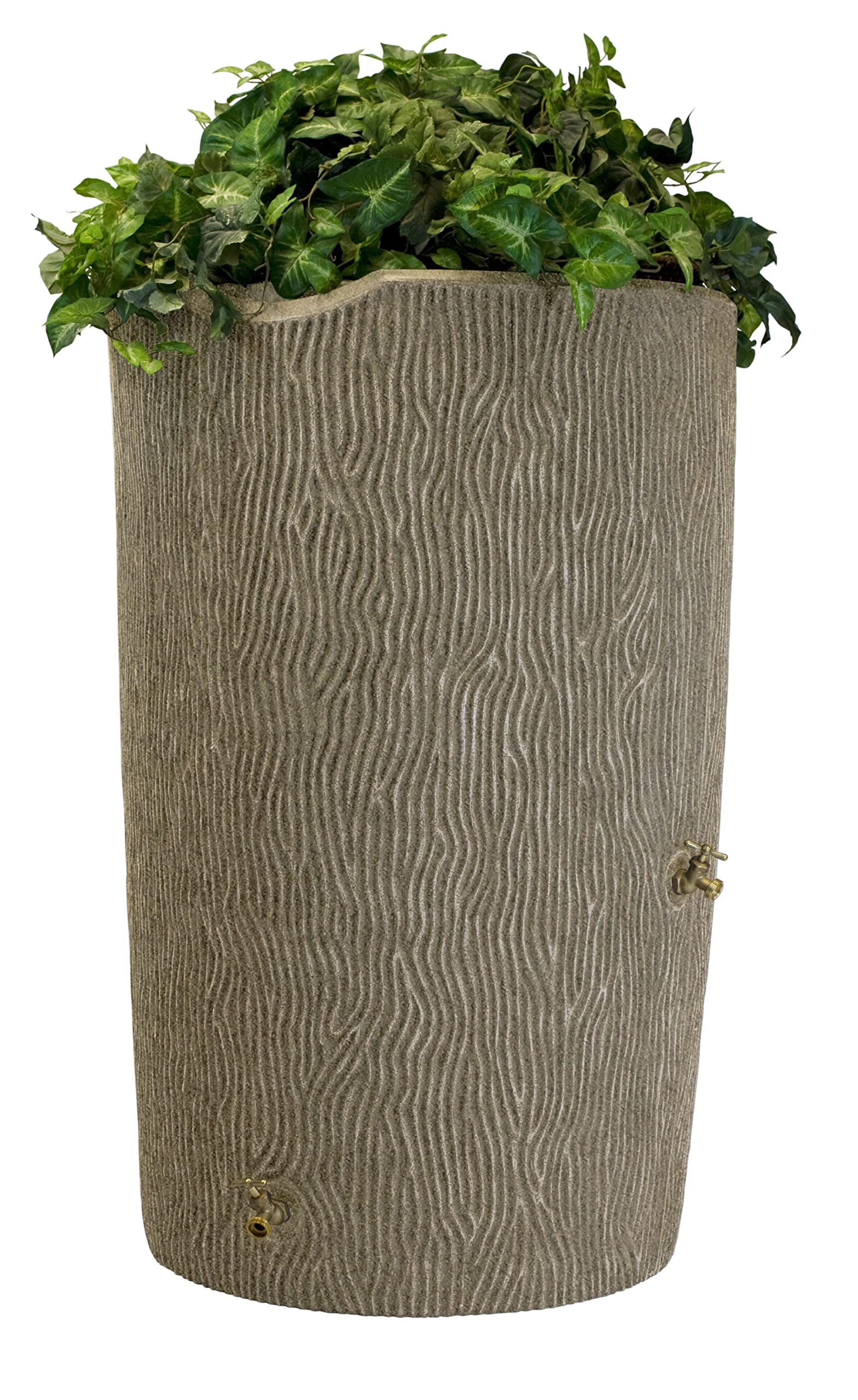

Image 1.1: The Good Ideas Impressions Tree Bark Rain Barrel in Sandstone.
2. Safety Information
- Ensure the rain barrel is placed on a stable, level surface to prevent tipping. A full 90-gallon barrel is very heavy.
- Keep children and pets away from the rain barrel, especially when it is full, to prevent drowning hazards.
- Do not drink water collected from the rain barrel. It is intended for irrigation and non-potable uses only.
- During freezing temperatures, drain the barrel completely to prevent damage from ice expansion.
- Regularly inspect the barrel for any signs of damage or leaks.
- Ensure the anti-debris screen is properly in place to prevent insects and debris from entering the water.
3. Package Contents
Verify that all components are present before beginning installation:
- Good Ideas Impressions Tree Bark Rain Barrel (1 unit)
- Brass Spigots (2 units)
- Anti-debris/Bug Screen (1 unit, pre-installed in planter top)
4. Setup and Installation
Follow these steps to properly set up your rain barrel:
- Choose a Location: Select a firm, level surface near a downspout. The area should be able to support the weight of a full barrel (approximately 750 lbs when full). Ensure the location allows for easy access to the spigots.
- Prepare the Downspout: You may need to cut your downspout to divert rainwater into the barrel's planter top. A downspout diverter kit (sold separately) is recommended for optimal collection and overflow management.
- Install Spigots: The rain barrel features dual spigot locations.

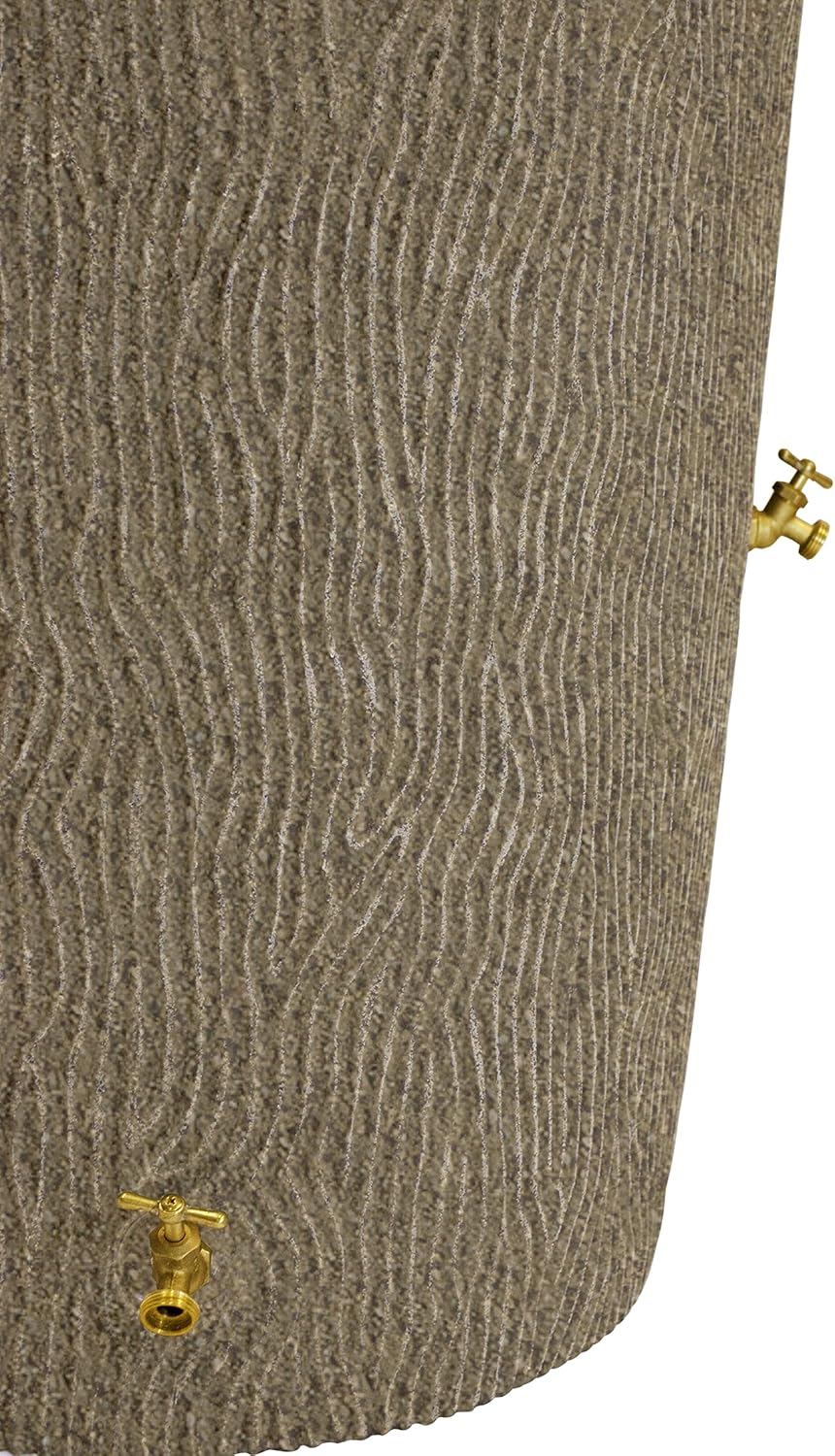

Image 4.1: Dual spigot locations for versatile water access.
- Screw the brass spigots into the threaded openings on the barrel. Hand-tighten only to prevent damage.
- The lower spigot is ideal for hose attachment, while the upper spigot can be used for filling watering cans.
- Position the Barrel: Place the barrel directly under the downspout or connect it to a downspout diverter. Ensure the planter top is clear for water entry.

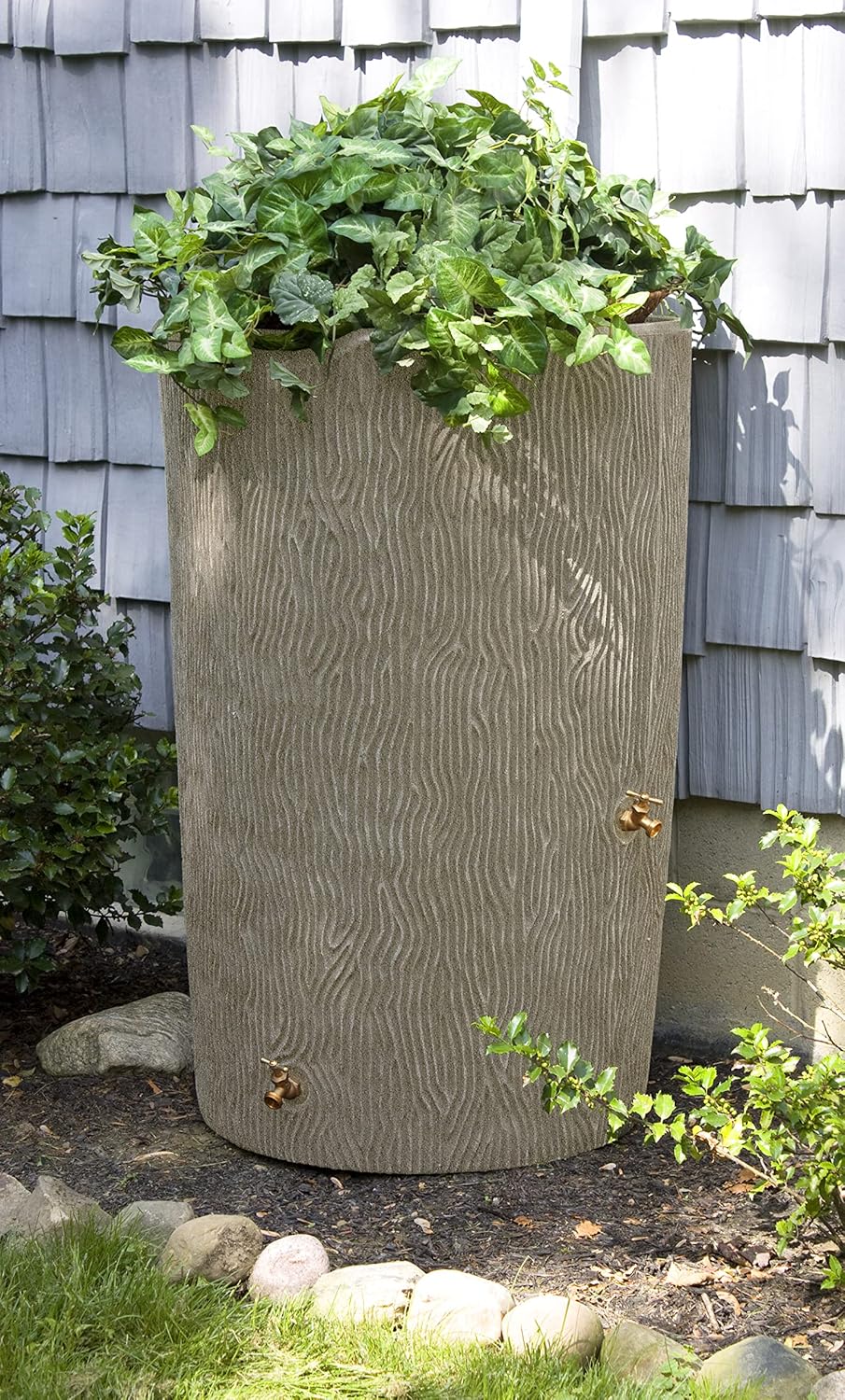

Image 4.2: Proper placement of the rain barrel near a downspout.
- Check Overflow System: The barrel has a built-in overflow channel in the rim that diverts excess water away from your home's foundation. Ensure this channel is clear of obstructions.
Video 4.3: Overview of the Good Ideas 90-Gallon Bark Rain Barrel features and setup.
5. Operating Instructions
Using your rain barrel is straightforward:
- Rainwater Collection: Rainwater will flow from your downspout into the self-draining planter top. The anti-debris screen will filter out leaves and large particles.
Image 5.1: The planter top with integrated anti-debris screen.
- Watering:
- To fill a watering can, open the upper spigot.
- To attach a garden hose, connect it to the lower spigot. Ensure the spigot is fully open for maximum flow.
- Planter Use: The top of the barrel functions as a planter. It is designed to self-drain, preventing waterlogging for plants while allowing rainwater to enter the barrel.
Image 5.2: The integrated planter top can hold decorative plants.
6. Maintenance
- Regular Cleaning: Periodically check and clean the anti-debris screen to ensure proper water flow and prevent clogging.
- Interior Cleaning: If algae or sediment builds up inside the barrel, drain it completely and rinse with a garden hose. A mild soap solution can be used, followed by thorough rinsing.
- Winterization: Before the first freeze, completely drain the rain barrel. Disconnect any hoses and open the spigots. Store the spigots indoors if possible. Leaving water in the barrel during freezing temperatures can cause the barrel to crack due to ice expansion.
- Inspection: Annually inspect the barrel for cracks, leaks, or damage to the spigots.
7. Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Water not flowing into barrel | Downspout not aligned; anti-debris screen clogged. | Adjust downspout alignment; clean anti-debris screen. |
| Slow water flow from spigot | Spigot partially closed; sediment buildup; hose kinked. | Ensure spigot is fully open; clean inside of barrel; check hose for kinks. |
| Barrel overflowing prematurely | Overflow channel blocked; barrel not level. | Clear overflow channel; ensure barrel is on a level surface. |
| Leaks from spigot connection | Spigot not tightened enough; damaged threads. | Hand-tighten spigot firmly; if damage persists, contact support. |
8. Specifications
Image 8.1: Dimensions and weight of the Good Ideas Impressions Bark 90-Gallon Rain Barrel.
- Model: IMP-C90-SAN
- Capacity: 90 Gallons
- Material: Durable Polyethylene Resin
- Color: Sandstone
- Dimensions (approx.): 23 inches (Diameter) x 34 inches (Height)
- Item Weight (empty): 21 lbs
- Features: Self-draining planter top, dual spigot locations, anti-debris/bug screen, built-in overflow.
9. Warranty and Support
For warranty information or technical support, please contact Good Ideas customer service. Keep your purchase receipt as proof of purchase.
- Customer Support: Refer to the contact information provided with your product packaging or visit the official Good Ideas website.
- Returns: This product typically includes a 30-day easy return policy. Please check with your retailer for specific return procedures.
